Automatic Spot Welding 18650 Cells Single Side Spot Welding Machine

Automatic Spot Welding 18650 Cells Single Side Spot Welding Machine

SPECIFICATIONS

This machine is used for18650,26650,32650 cylinder battery pack automatic spot welding.

Features :

1.Support break point start, support automatic start and manual start mode conversion.

2.It has a false spot welding and out of spot welding alarm function.

3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.

4.Welding needle replacement forecast reminder.

5.Own welding current monitoring system, real-time monitoring of welding current.

Spec:

1. Power：4KW，220V/380V AC Input，50HZ

2.Air; 0.4-0.8Mpa，No water, no impurities

3.Suitable cell range：14500/18500/18650/18730/21700/26650/32700 Series and parallel combination of the cell, multi-parallel and multi-series combination

4 Suitable for the production of battery packs: electric tool batteries, twist car batteries, energy storage battery packs, scooter batteries, electric vehicle batteries, etc.

5.Maximum stroke: X-axis 350MM, Y-axis 450MM, if you need more, it needs to be customized

6.Suitable for nickel sheet width: molded nickel sheet / bump nickel sheet (confirm when customizing)

7.Suitable for nickel sheet thickness: 0.1MM---0.3MM (0.21-0.3MM thickness nickel sheet needs to be slotted)

8.Production efficiency: about 2000-2500PCS cells/hour

9.Standard spot welding machine:

8000A DC spot welding power supply, one set,

Fast spot welding speed (2-10ms),

low spot temperature

Real-time monitoring of welding (under current or explosion) with welding completion signal, saving welding time

Can set spot welding standard welding (the positive and negative electrodes are respectively welded with different currents)

If the current is too small or there is an abnormality during spot welding,

the machine will automatically alarm and stop the machine

10.Welder effect: very good welding consistency, uniform solder joints and beautiful appearance

11.Three kinds of spot welding data input: Dot matrix input method Array input method U disk import method, save the spot welding data to a U disk and directly import it to the machine. (U disk CAD data is imported to the touch screen in a single time, and then can be exported from the touch screen to the U disk in batches, and then imported to other machines at once. )

12.Spot welding mold model name: Chinese and English input

14.Display interface: 7-inch color touch screen, can display in Chinese and English

15.Control device: 5-axis high-speed PLC programmer, 3-axis servo motor, 1-axis 400W servo motor drive electric welding head

16.Nickel belt adopts formed nickel belt to reduce waste

17.The equipment debugging is simple, easy to learn and understand, and the model change speed is fast (0-199 groups of data can be transfer)

18.Welding head power: servo electric

19.The equipment has its own fault alarm, clear the fault according to the prompt

20.Dimension：L900*W900*H1730MM

21.Weight：200KG

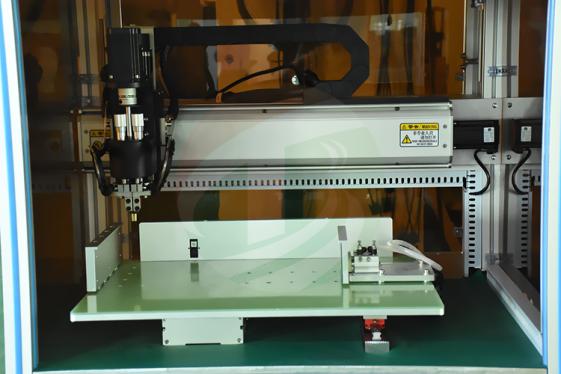

PRODUCT DISPLAY

Welding Clamp Display
