Battery Electrode Peel and Adhesion Strength Tester

Battery Electrode Peel and Adhesion Strength Tester

SPECIFICATIONS

Precisely measure the critical adhesion strength (peel force) of electrode coatings to current collectors with our dedicated TOB-GM-B01 Peel and Adhesion Strength Tester.

Essential for lithium-ion battery R&D and quality control, this instrument evaluates the mechanical bond integrity between the active material layer (cathode or anode coating) and its metal foil substrate (Al or Cu). Reliable peel strength measurement directly impacts battery performance and longevity by ensuring electrodes withstand manufacturing stresses (calendering, slitting, handling) and prevent delamination during cycling. Optimize your electrode formulation, coating processes, and binder selection using quantifiable adhesion data to enhance battery durability, safety, and energy density.

Product Introduction:

• The peel strength tester is controlled by computer, which is professionally used in battery diaphragm tensile strength/elongation at break/puncture strength test, etc. The test principle is to install the sample on a fixed fixture, stretch or puncture the sample at a specified speed, and evaluate the tensile strength and puncture strength of the injection product through the measured force value.
• The machine adopts high-precision force sensor, through microcomputer measurement and control technology, precision ball screw drive, efficient and silent motor drive, with simple test, accurate force value, constant speed, beautiful appearance, smooth and quiet operation and many other advantages.

Reference standard

• GB/T 36363-2018 Polyolefin separator for lithium-ion batteries

Measurable items:

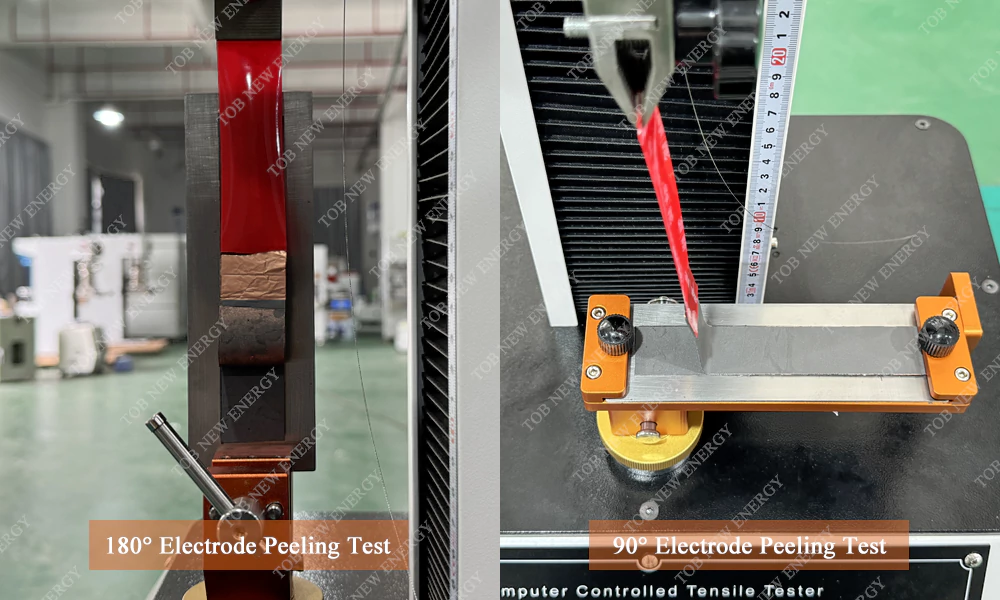

• Battery electrode peel strength and adhesion strength test
• Battery separator tensile strength/elongation at break.
• Puncture force/puncture strength.

Main parameter:

• Capacity: 200N(optional 10, 20, 50, 100, 200, 500N)
• Resolution: 0.001N (1/500,000)
• Precision: ≤±0.5% (0.5 grade) Test stroke: 400mm
• Fixture width: 25mm
• Display: Chinese and English, computer screen display
• Test speed: 0.01 ~ 500.00mm /min can be set arbitrarily
• Displacement display: 0.001mm
• Speed accuracy: ±1% power rate: 200W
• Dimensions: 400×450×990mm Weight: 35KG
• Power source: AC220V,50HZ,1A

Standard configuration:

• Main machine: 1

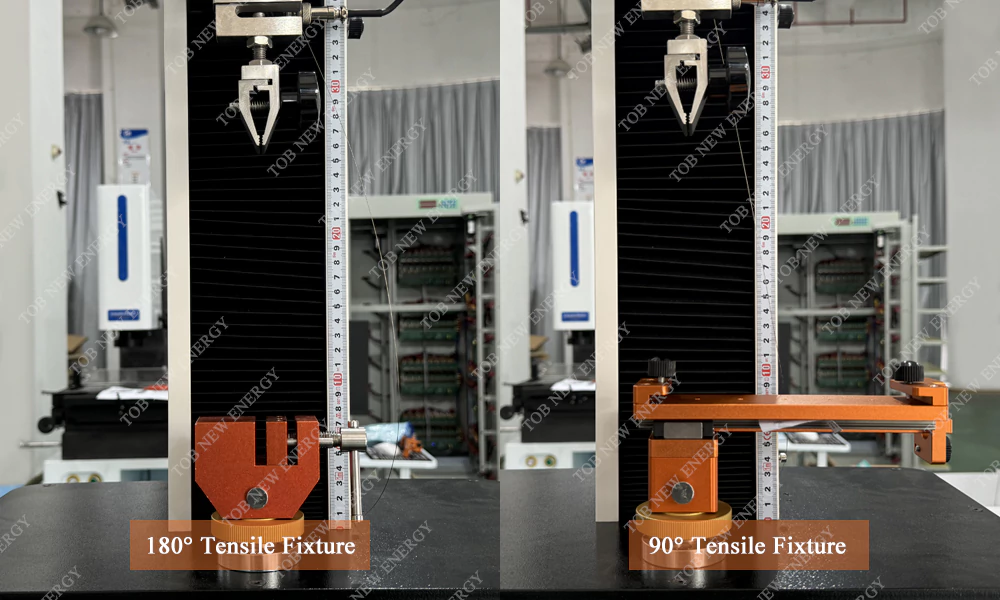

• Test fixture: 1 set of puncture fixture, 1 set of stretching fixture.

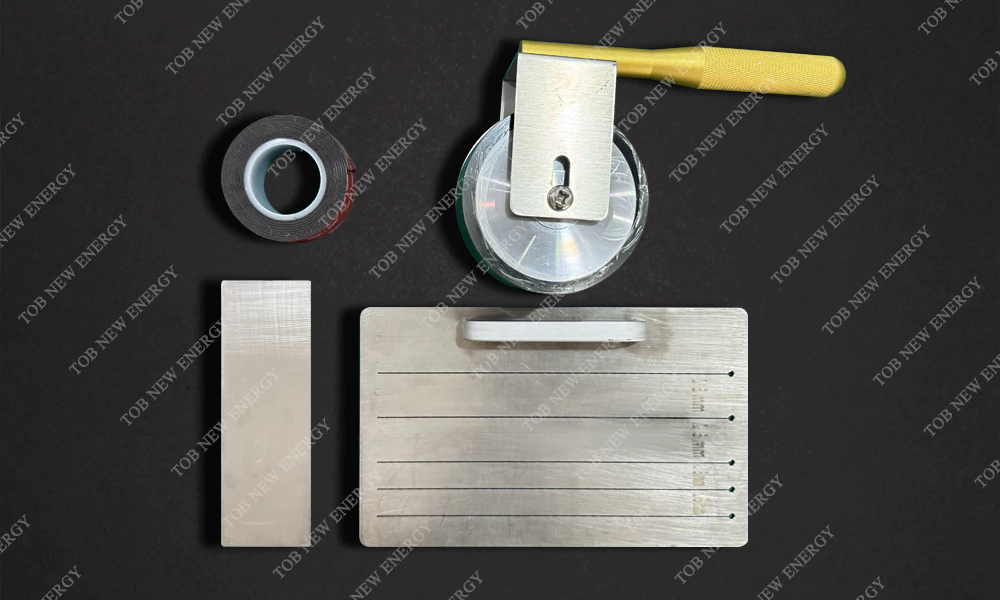

• 15mm/25mm sampling plate: 1 calibration
• Weight: 1pcs
• Desktop computer: 1 set
• Power supply line: 1 (220V 10A)
• Usage instructions: 1 copy
• Test software: 1
• Data line: 1pcs

Product features:

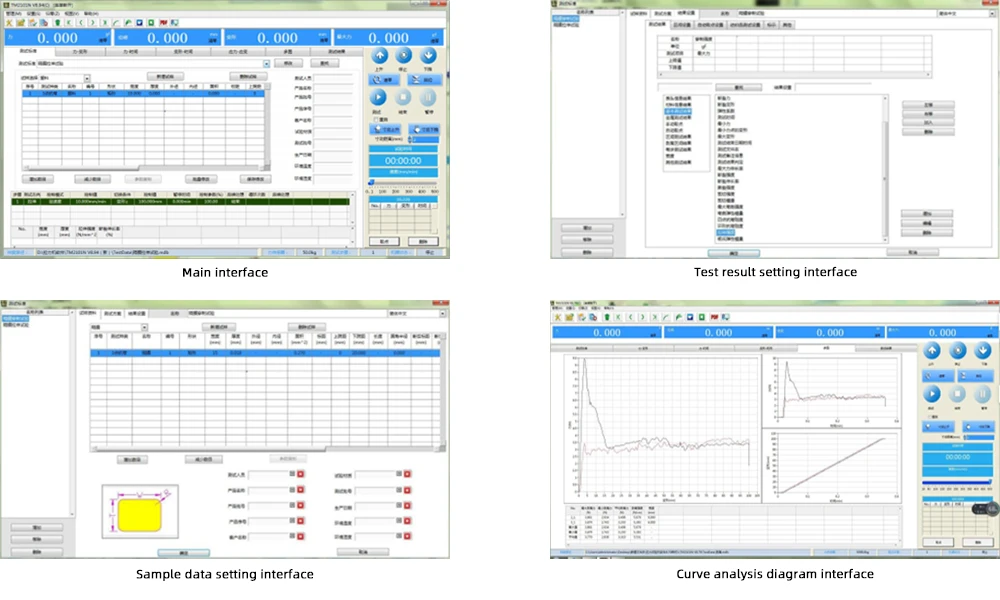

• Using windows working platform, parameter setting all in the form of dialog box processing, simple operation.
• Computer LCD display, real-time force value, peak value, speed, test times, force curve multi-graph visual display. user-friendly design, easy to operate.
• Full computer mode operation.
• Instrument storage: unlimited test results, you can delete any group or groups.
• Printout: connect the computer to the ordinary A4 paper printer output.
• Power unit: N, kN, kgf, gf, lbf optional. Displacement unit: mm, cm, in Optional
• Strength unit: Pa, kPa, Mpa, kgf/cm2, lbf/in2 Optional.
• Protection measures: over stroke protection, over force value protection, over time protection, outer limit protection and other protection methods.
• High sensitivity, instantaneous rupture determination and automatic shutdown
• All Chinese or English visual display, suitable for domestic and foreign use!
• Test, rise, fall, return speed arbitrary input setting, accurate control.
• Automatic quick return after the test is completed, avoiding long waiting time and speeding up the test efficiency.
• Test results: the test is automatically recorded and saved without manual storage.
• Multiple test items, multiple units can be selected to meet a variety of test standards.
• High accuracy: using high-precision S-type sensor, the maximum accuracy can reach 0.25%.
• Built-in special calibration mode, which is convenient for third-party measurement calibration institutions to calibrate the instrument.

Product hardware advantages:

• Taiwan TBI high precision ball screw drive, efficient, durable, high straightness. high performance motor, low noise, low vibration, long service life.
• High quality S-type alloy steel sensor, high precision, strong anti-external force, anti-overload ability.
• The outer box of the machine adopts A3 steel plate + aluminum profile cover, electrostatic spray powder and plastic coating, beautiful and generous.

Computer configuration requirements:

• WINDOWS XP, WINDOWS 7 32-bit or 64-bit.
• Hard disk ≧240G, memory ≧4G
• With RS232 interface

Test software description: English and Chinese can be replaced
