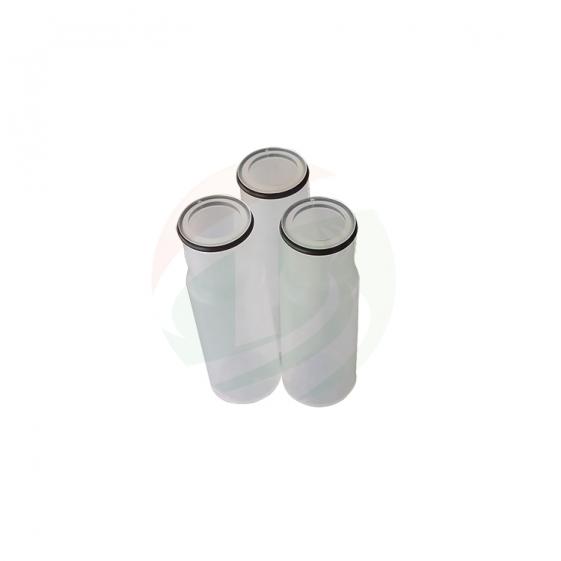

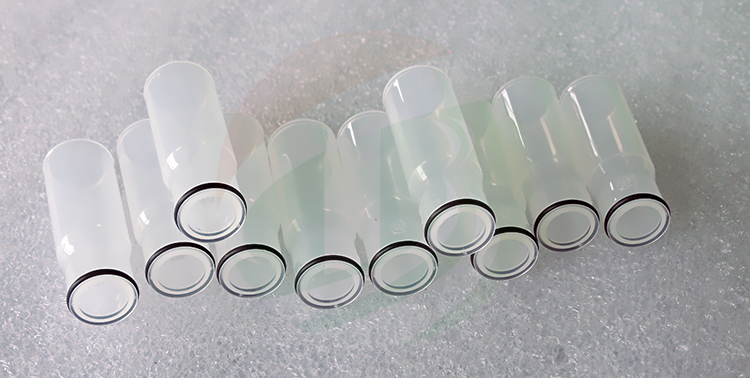

Cylindrical Battery Electrolyte Filling Cup

Vacuum Filling Machine For Cylindrical Battery

Pump is easy to be placed into a glove box and precisely controls the filling amount of electrolytes or other lower viscosity liquids under vacuum/inert gas atmosphere. It is an ideal tool for use in battery R&D.

TOB-ZY300 Vacuum filling system applies to the battery, super capacitor electrolyte filler process, this vacuum filling system adopts Vacuum-Filling-Pressure process, Guarantee electrolyte absorption with high consistency, reliability, completeness.

Double Head Electric Priming Pump For Electrolyte

Single Head Electric Injection Pump For Electrolyte

Electric Liquid Injection Pump SPECIFICATIONS Functional overview The machine makes use of stepping motor to drive rotation motion and reciprocating motion of ceramic plunger rod. Rotation motion is used for changing valve direction, and reciprocating motion is used for liquid inlet and outlet  so as to reach the purpose of controlling fluid accurately. Functional characteristics 1.Adopt anti-corrosion and special high wear-resisting ceramic pump head. 2.Assembling, disassembling or cleaning of pump head is convenient and quick. 3.Select speed. Number of turns is continuous and adjustable. Technical parameters Power source AC220V/50Hz  Power: 0.5kW Injection accuracy ±0.1% The calibration of the injection liquid is rough, and the precision is controlled by the program Injection volume adjustment,  by setting the number of pulses to achieve precision adjustment Overall dimensions(Lx W x H)  380 x 130 x 120mm Weight 13kg  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

TOB-JLB - 10 Filling pump system includes an electronic control box, a stepper motor, and A high-precision rotating fluid reciprocating pump made by special ceramic. It is used for multiple high precision spraying/lithium battery liquid injection system

This TOB-ZYB-01 ceramic rotary plunger pump is suitable for high-end trace of liquid precision measurement such as medicine, electrolyte, acid, solvent, dairy products, glue, reagents and other industries of a variety of liquid media.
