DHG-9070A 70L Blast Drying Oven

The TOB-DHG-9070A Blast Drying Oven is mainly used For scientific research units, specialty universities, laboratories, industrial mining enterprises etc and production field for materials drying and heat treatment.
  • item no.:

    TOB-DHG-9070A
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

70L, 2.5 Cubic Feet Blast Drying Oven with 30 Segments Temperature Controller Optional


SPECIFICATIONS


1 The TOB-DHG-9070A  Blast Drying Oven is mainly used For scientific research units, specialty universities, laboratories, industrial mining enterprises etc and production field for materials drying and heat treatment.

2 ThisForced air drying ovenadopts high quality cold rolled steel sheet, with strong rust resistance. The inner material is stainless steel, easy cleaning.

3 Reasonable hot air circulation channel is designed in the cabinet, so that the temperature distribution in the cabinet is more even, temperature rise faster. Equipped with adjustable air outlet, for adjusting the in and out of the air in the cabinet. And also canoutput the bad air with connecting a pipe outside work place.

4 Temperature control is microcomputer intelligent digital technology controller with PID function and LED display.

5 The 30 segment programmable temperature controller is with time and temperature setting in sectional with sound alarm.


Model

Blast Drying Oven  TOB-DHG-9070A

Source voltage

110V/220V 50HZ/60HZ

Power

1500W

Warranty

One Year limited warranty with lifetime support

Work box size

400*350*500mm

Oven size

545*545*800mm

Temperature range

RT+10~250℃

Temperature resolution

±0.1℃

Temperature fluctuation

±0.5℃

Temperature controller

30 segment programmable temperature controller.

Self tuning function. The timing time can up to 9999 minutes

Inner box material

High quality mirror stainless steel plate, round shape, smooth surface, easy to clean

Outside material

High quality cold-rolled steel plate,

the surface electrostatic spray, hard and firm coat, with strong anti rust ability

Sensor

A grade PT100 Platinum resistance

Heat pressure layer

High quality insulation system, inner box, inner shell,ultra-fine glass fiber,

Aluminum foil aluminum reflector, air - interlayer from inside to outside.

Observe window

The box door are provided with double-layer tempered glass observation window,

can observe the test result easily

Heating mode

Electric heating. Nickel chromium alloy electric heater

Safety installation

With over temperature protection, grounding etc.

Wind duct

Forced air circulation channel, ensure that the studio uniform temperature;

air duct provided with a heater, temperature sensor

Adjustable air intake

The control box and outlet air quantity, the casing is provided with an exhaust

can close or adjust discharge mouth to change wind effect.

Shelf

2pcs

Timing range

1-9999mins


PRODUCT DISPLAY

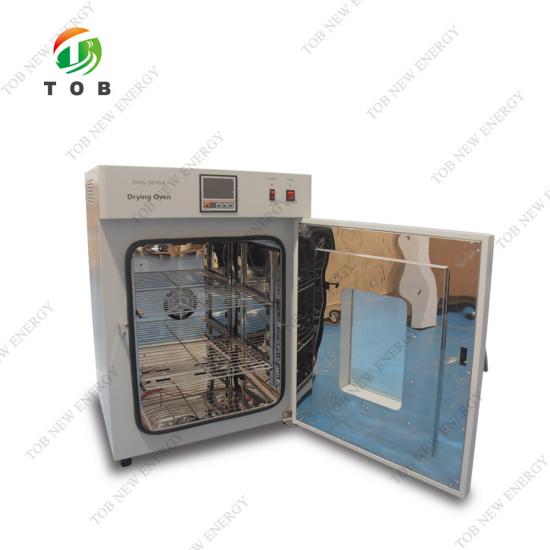

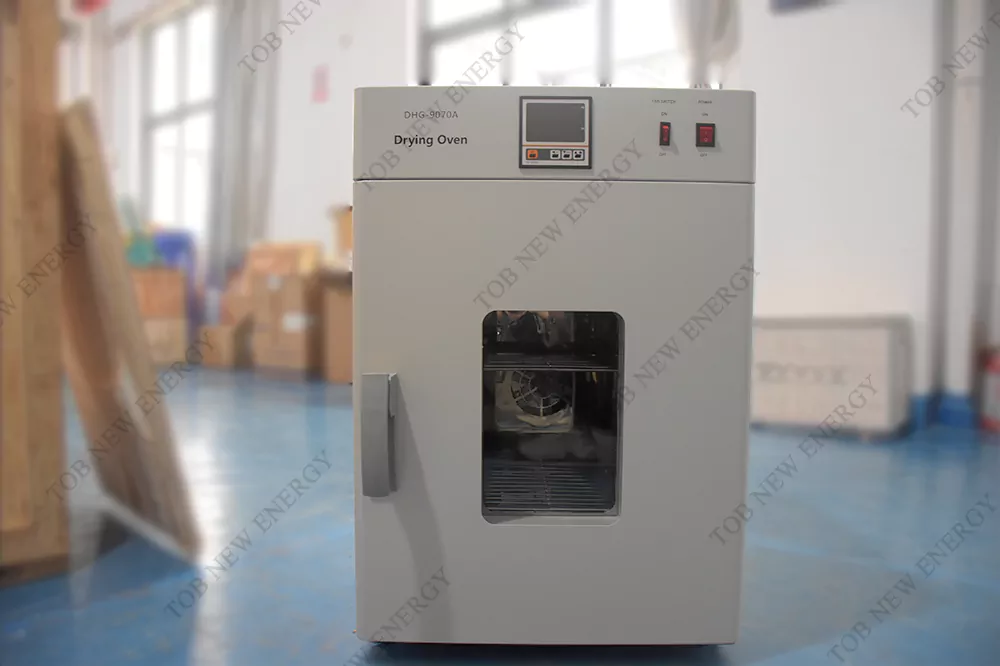

Blast Drying Oven

Blast Drying Oven

Drying Oven

Drying Oven


SERVICES

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.
