Drying Cabinet with 1-10% RH

TOB-FCDE1428 with RH1%-10%, suitable for IC, BGA, SMD, Epitaxial wafer, Silicon wafer, graphene, Super moisture sensitive device, CAAS arsenic, Chemical materials, industrial precious metals.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-FCDE1428
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

Drying Cabinet with 1-10% RH


SPECIFICATIONS


Drying cabinet(moisture-proof cabinet) is a dehumidifying platform established according to the development of military high-tech equipment to meet the humidity requirements of various precision accessories and electronic devices.

TOB-FCDE1428 with RH1%-10%, suitable for IC, BGA,SMD, Epitaxial wafer, Silicon wafer,graphene, Super moisture sensitive device, CAAS arsenic, Chemical materials, industrial precious metals.


Workingprinciple:

1. Humidity sensor (humidity and temperature signal)

2. Microcomputer (CPU central processing unit)

3. Heater (polymer material PTC constant temperature heating module heating)

4. Intelligent shape memory alloy (alloy shape changes with temperature),

5. Balance spring (common spring with alloy)


Model

TOB-FCDE1428

Overall dimension

W1200*D710*H1940 (mm)

Inner dimension

W1198*D680*H1840 (mm)

Adjust layer plate

5 pcs

Windows

4mm thick explosion-proof tempered glass

Material

1.2mm thick cold rolled steel plate

Voltage

220V/50Hz

Power

13W

Humidity range

1%-10%

Display

Temperature, humidity

Truckle

Four sets(two with brakes)

Colour

Black(anti-static)

White(ordinary)

Control technical

Adopt microcomputer intelligent fuzzy humidity inertial system control technology, the sensor is

imported from the United States, the brand is Honeywell, digital frequency output port, strong versatility, easy to replace, high precision, less annual drift, strong anti-interference ability

Humidify control movement

Shell selection of South Korea imported engineering plastic, bear temperature more than 300 degrees, design using life more than 30 years, molecular sieve imported from Germany, double memory alloy spring imported from Sweden, to ensure the durability and fatigue resistance of the movement; The moisture-proof box has no motor drive, with feature of heat insulation, magnetic insulation, anti-static, dustproof, anti-theft, low power and no consumables .

Display

3 Window digital display(LED digital tube: 1 temperature group, 1 humidity group, 1 temperature dynamic display group), the humidity changes in the box body are intuitive and visible

Power-off protection and memory function

After the power off, the system ensures that the humidity increase in the box is less than 10% (within 24 hours), and with memory function no need reset after the power off.

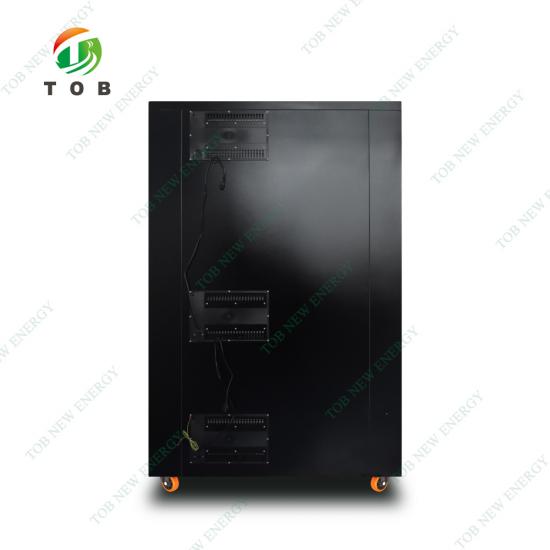

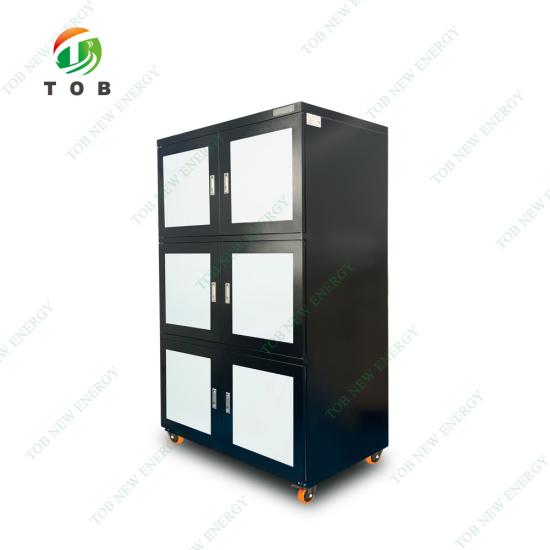

PRODUCT DISPLAY


Drying Cabinet

Drying Cabinet
