Electric Vacuum Heat Tablet Press Machine

We specialize in the production of powder tablet press machines and molds. The tablet press is small in size, high in pressure, and has high pressure control accuracy. It is used in scientific research, teaching, testing, pharmaceutical, catalysis, chemical industry and other industries. In addition, this product can also be used with Fourier transform infrared spectrometer and fluorescence spectrometer for sample preparation.

Brand:
TOB NEW ENERGY
item no.:
TOB-PP-600Z
order(moq):
1
Payment:
L/C, T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

Electric Vacuum Heat Tablet Press Machine

SPECIFICATIONS

Model	TOB-PP-600Z
Pressure range	0-25T
pressure process	Programmed Pressurization - Programmed Pressure Retention - Timed Pressure Relief
Pressure Holding Time	1S～∞S
Heating temperature	Max 500℃
Heating Plate	180×180mm，200×200mm
Vacuum chamber dimensions	SUS 304SS
Working dimensions	400×400×400mm
Hatch Dimensions	300×350mm
Vacuum	-0.1MPa
The size of the whole machine	450×550×850（L×W×H）
Power supply	220V 50Hz（110V can be supported）

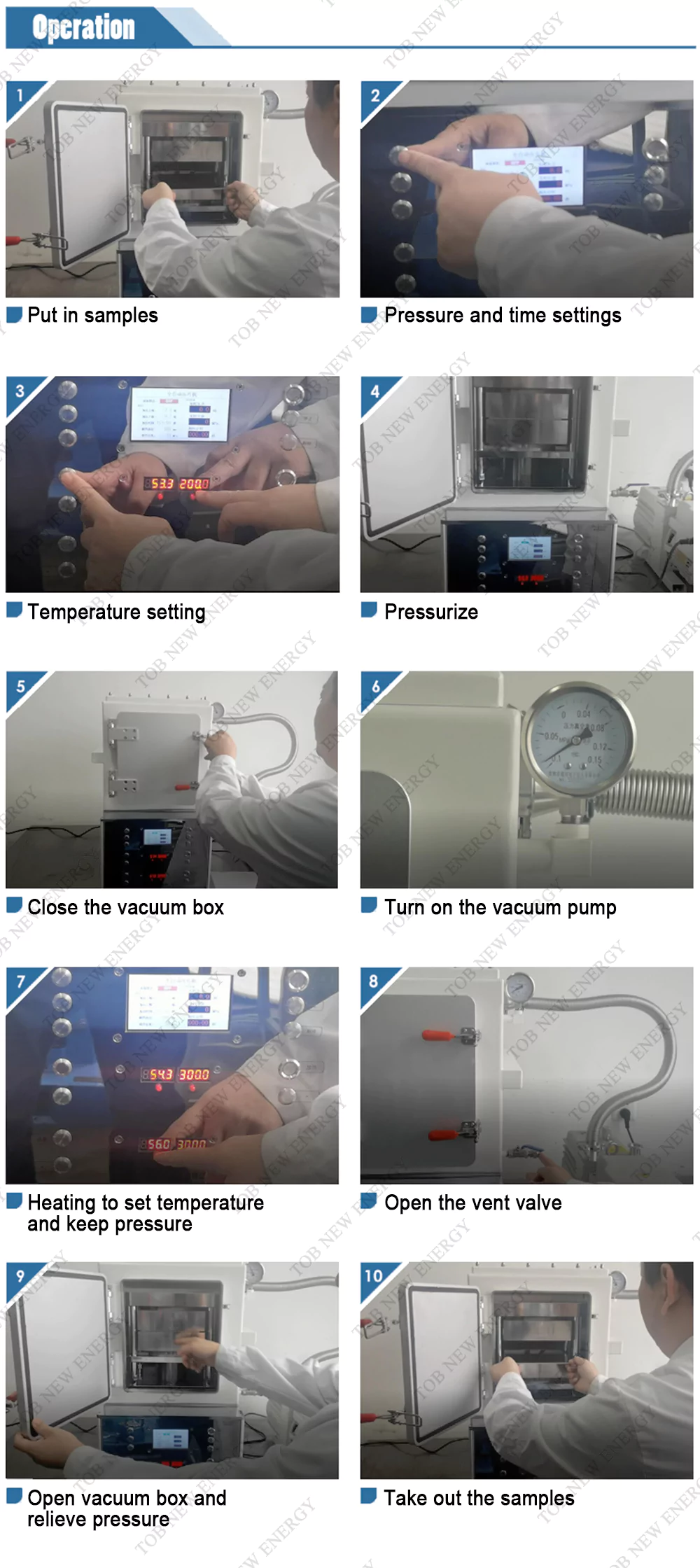

PRODUCT DISPLAY

Electric Vacuum Heat Tablet Press Machine
