Hydraulic Manual Coin Cell Crimper

Machine model

Hydraulic Coin CellCrimping Machine TOB-MR-120

Standard

Crimping Die

1 One set of crimping die for CR2032,CR2025,and CR2016

2 Optional die available from product option for crimping CR2325,CR2450,AG3,AG5

3 PTFE Anti-Corrosion Core prevents coin cells from being short circuited

Advantages

1 The lower die with high precision positioning ring spacing, control batteryseal height

2 The upper die is provided with a sealing cup inner screw spring mechanism,ensure in case the battery sealing clamp can not be removed,only the top screw clockwise and the button battery out.

3 By using aluminum alloy and high strength steel,

surface after the environmental protection electroplating processing will never  rust

Rocker Pressure

<6kg

Max Pressure

200kg/cm2  (the battery sealing no vibration, no leakage)

Working Pressure

80-100kg/cm2

Dimension(L*W*H)

232*170*330mm

Weight

28kg

Shipping Weight

35kg

Warranty

One Year limited warranty with lifetime support

Reference Pictures

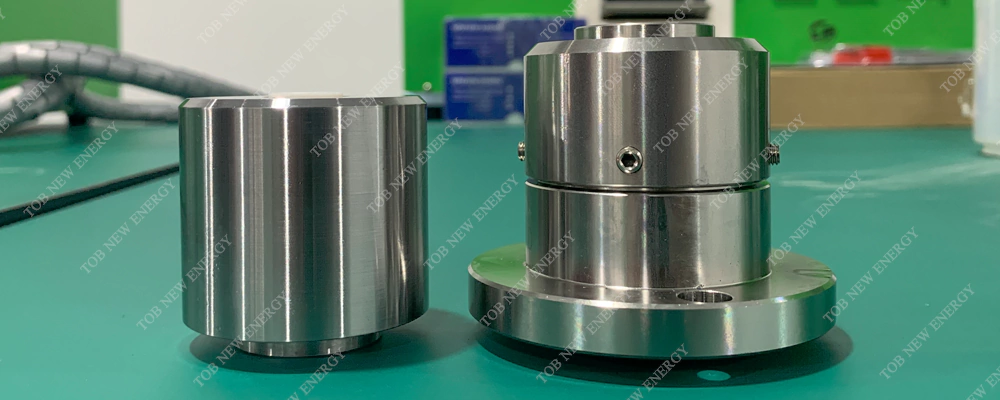

1. Adjusted sealing die for CR2016，2015,2032 coin cell

2. Optional die for other model battery and PTFE Anti-Corrosion Core
