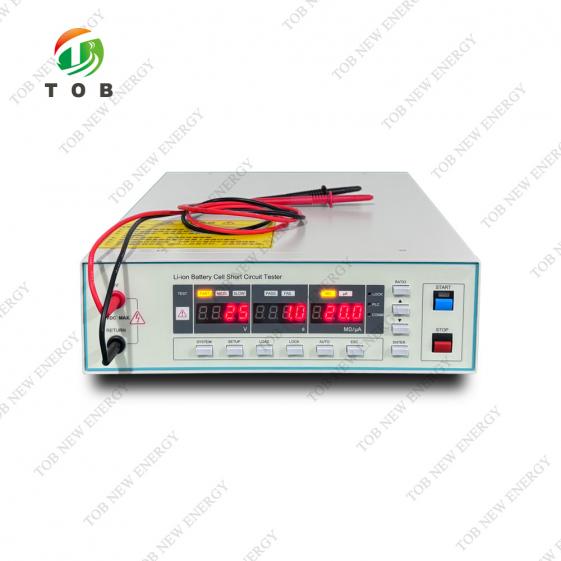

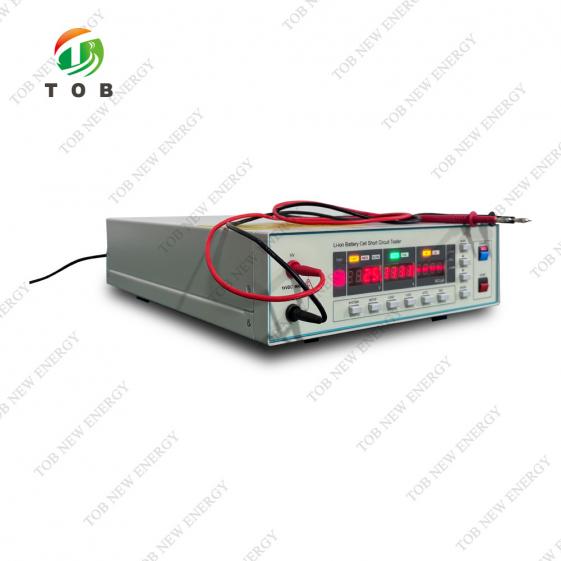

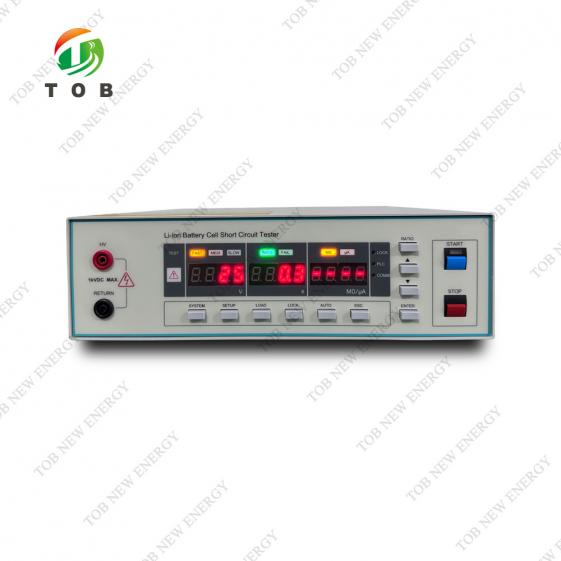

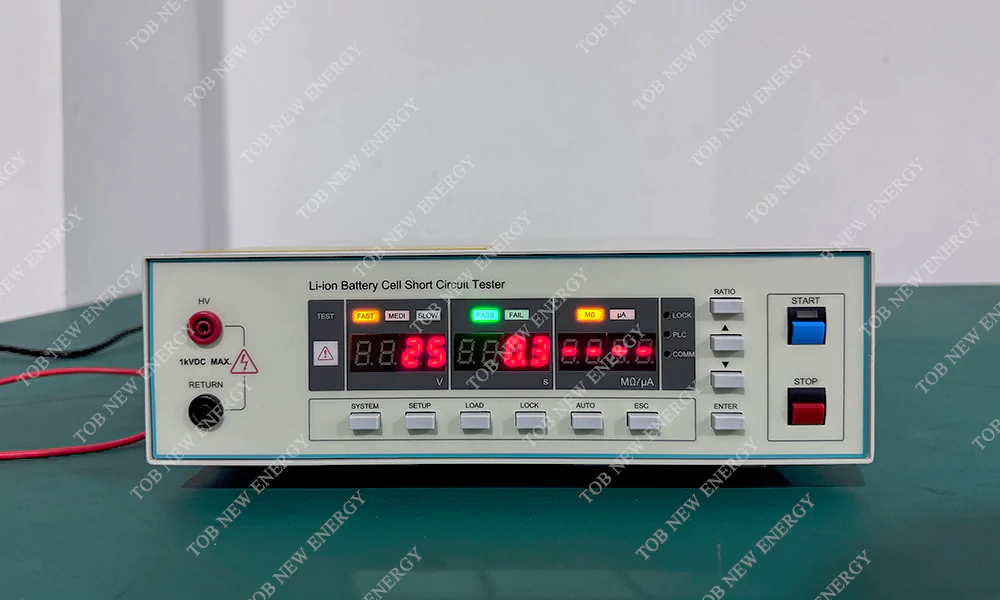

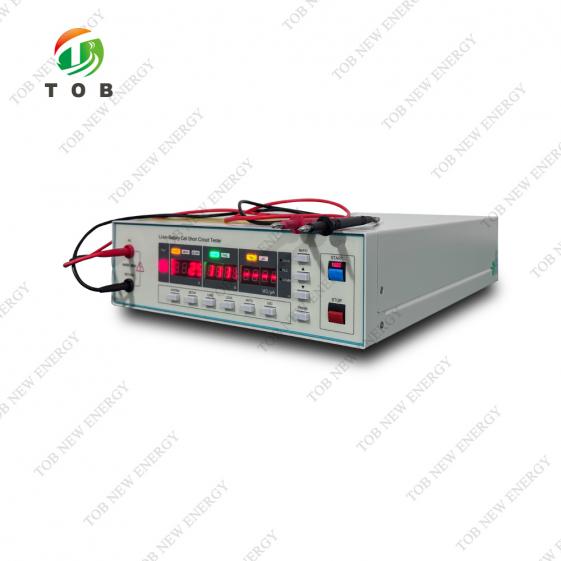

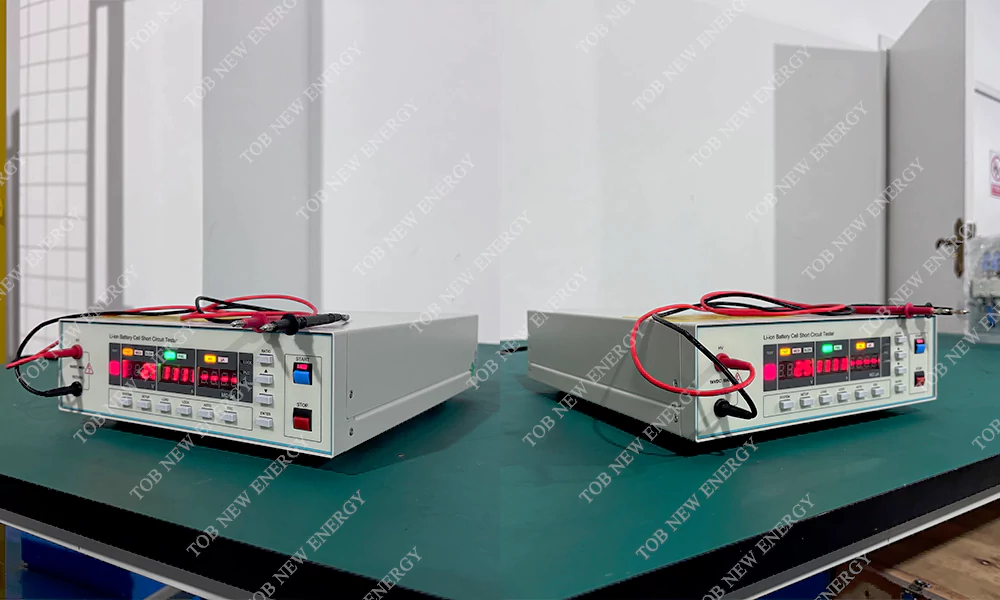

Insulation Resistance Battery Cell Short Circuit Tester

Function

Technical Specification

Output Voltage/Resolution/Accuracy

25V～1000V/1V/±(2%setting+2dgt.)

Test Voltage/Resolution/Accuracy

25V～1000V/1V/±(2%rdg.+2dgt.)

Maximum Current

1mA

Output Mode

Floating ground

Isolated voltage

±1000V

Ripple

5Vp-p (1000V no load); 10Vp-p (1000V full load)

Load Adjustment

1% (Full Load to No Load)

Rise Time

15ms (no load Umax)

Auto Discharge

20kΩ (1uF capacitor discharge at 1000V 200ms/time constant RC)

Delay Time

0.1s～999.9s Accuracy: ±(0.1%setting+1dgt.)

Test Time

0.5s～999.9s Accuracy: ±(0.1%setting+1dgt.)

Insulation impedance

2.000MΩ～200.0MΩ      ±（2%rdg.+5dgt.）

200MΩ     ～4000MΩ      ±（5%rdg.+5dgt.）

4000MΩ～9999MΩ  ±（10%rdg.+5dgt.）

Display Parameter

Insulation resistance/leakage current

Comparator

Upper/Lower Limit

Auto Detection

Continuous test, high voltage continuous output

Sampling speed

Fast/Medium/Slow

Memory Parameters

100 groups

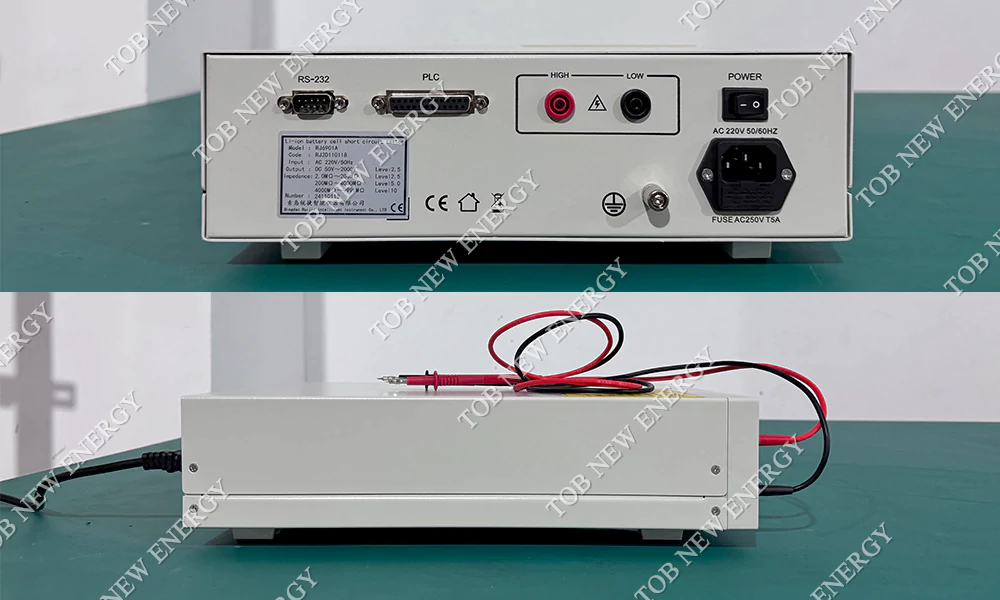

External Interface

RS232/PLC

Environment

0℃～40℃, 20%RH～70%RH

Power supply

AC220V, 50/60Hz, 100VA

Weight

7.2kg

Dimension

300mm×88mm×380mm (W×H×D) without feet, feet height 15mm

Attachment

Instruction manual × 1, 1m test cable × 1, communication cable × 1
