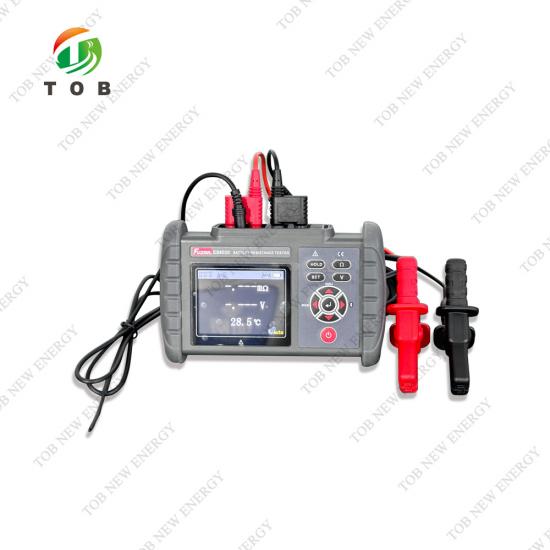

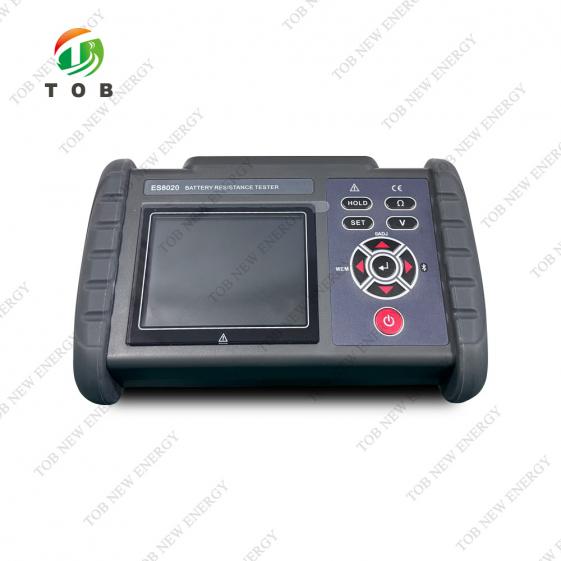

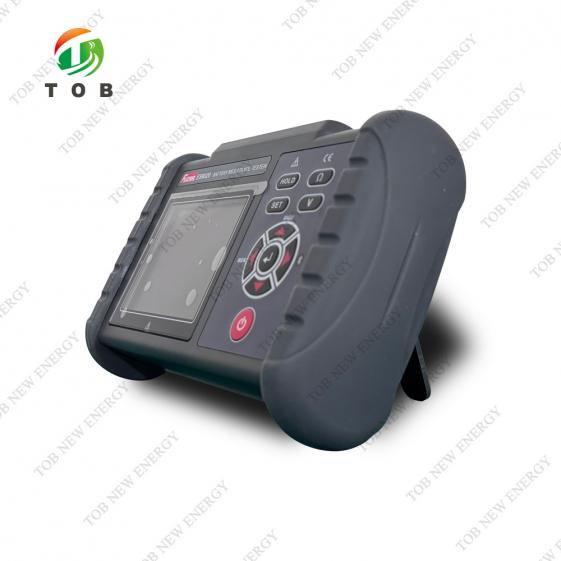

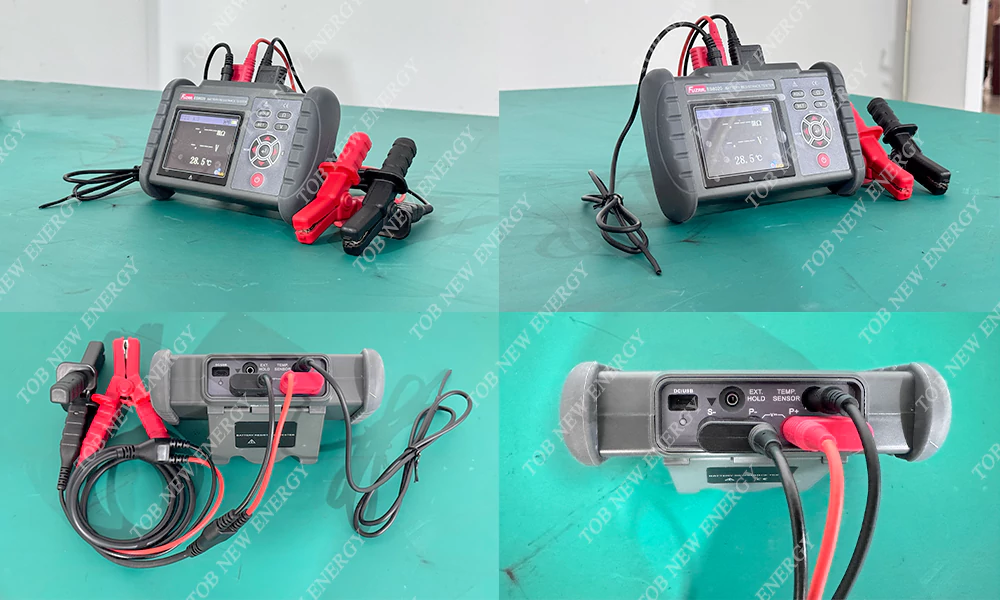

XIAMENUniversal Rechargeable Battery Internal Resistance Tester
SPECIFICATIONS

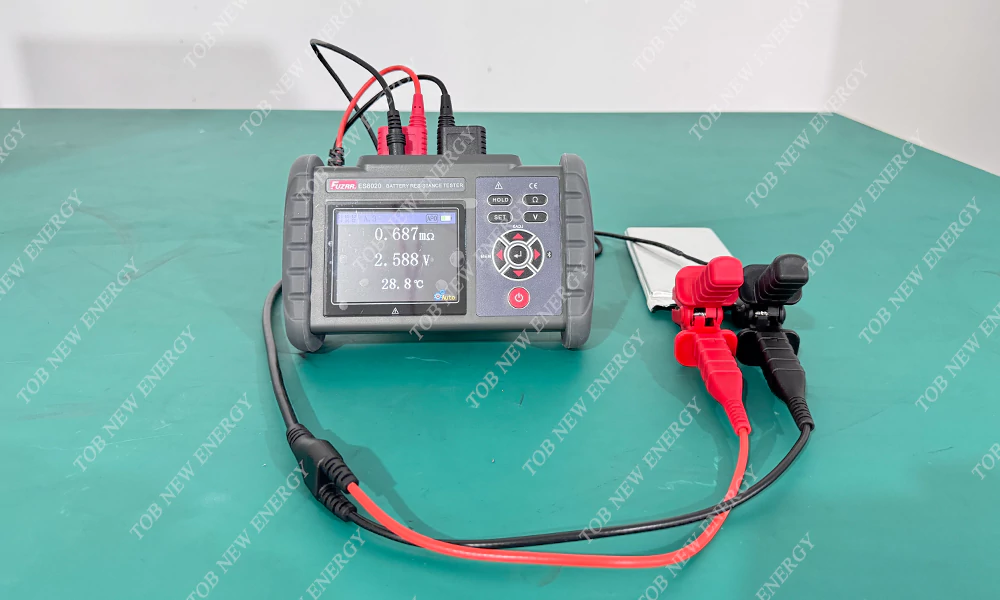

The TOB-ES8020 Universal Rechargeable Battery Internal Resistance Tester is a measuring instrument used to measure the internal resistance, voltage and temperature of rechargeable batteries such as lead storage batteries, lithium batteries and other rechargeable batteries, in order to determine the health status of the battery, and also as a meter to measure the ESR parameters of electrolytic capacitors (for reference only).

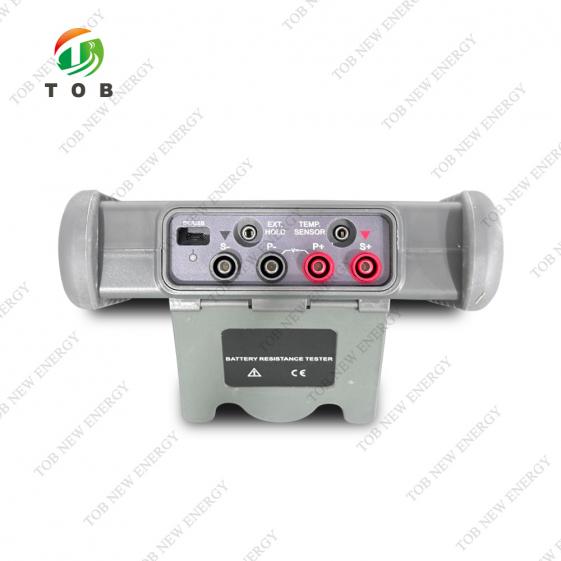

This instrument uses the AC 4-terminal test method to measure the internal resistance of the battery, and the correct measurement value can be measured without being affected by the contact resistance between the test wire, terminals and battery electrodes. Meanwhile, it also has the functions of data storage, data review, alarm and automatic shutdown.
The whole machine is high-grade and beautiful, wide range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, anti-interference ability strong. It is an indispensable instrument for battery production, battery installation, equipment production and equipment maintenance.
The universal rechargeable battery internal resistance tester is controlled by microprocessor, internal 16-bit ADC can accurately detect the internal resistance, voltage and temperature of the battery. It is characterized by measuring without stopping the UPS system, using AC low-resistance measurement and noise reduction technology, without stopping the normal work of the equipment under test, and measuring in the running state, which greatly shortens the testing time. At the same time with data storage, histogram display, data upload computer, cell phone tablet and other smart devices Bluetooth connection for wireless measurement, access to data and other functions.
Measure range and accuracy
|
Accuracy guarantee conditions |
|
|
Accuracy guarantee period |
1 year |
|
Accuracy guarantee period after calibration |
1 year |
|
Accuracy guarantee temperature and humidity range |
23℃±5℃, below 80%RH |
|
Warm-up time |
Not required |
Resistance measure accuracy
| Measure range | Max. display value | Resolution | Measure accuracy | Measure current |
| 3mΩ | 3.100mΩ | 1uΩ | ±1 % fs. ±20 dgt. | 200mA |
| 30mΩ | 31.00mΩ | 10uΩ | ±0.5 % fs. ±15 dgt | 200mA |
| 300mΩ | 310.0mΩ | 100uΩ | 20mA | |
| 3Ω | 3.100Ω | 1mΩ | 2mA |
Voltage measure accuracy
|
Measure range |
Max. display value |
Resolution |
Measure accuracy |
|
7V |
±7.100V |
1mV |
0.2 % fs. ±10 dgt |
|
70V |
±71.00V |
10mV |
Temperature measure accuracy
|
Measure range |
Max. display value |
Resolution |
Measure accuracy |
|
-10.0℃~60.0℃ |
60.0℃ |
0.1℃ |
±0.1℃ |
Tip: The above accuracy guarantee is limited to the factory standard test leads, when using non-standard test leads or extension leads, this accuracy table also applies after zeroing.
Technical parameters
|
Function |
Battery internal resistance, voltage and temperature measurement |
|
Noise avoid frequency |
Yes, the automatic frequency conversion range is 920Hz~1080Hz |
|
Accuracy guarantee temperature and humidity |
23℃±5℃，below 75% rh |
|
Supply power |
DC 3.7V lithium ion battery |
|
Resistance resolution |
1uΩ |
|
Voltage resolution |
1mV |
|
Temperature resolution |
0.1℃ |
|
Measure range |
Internal resistance measurement: 0.000m Ω~3.100 Ω (consisting of 4 ranges) |
|
Voltage measurement: 0.000V~± 71.00V (consisting of 2 ranges) |
|
|
Temperature measurement: -10.0 ℃~60.0 ℃ (single range composition) |
|
|
Max input voltage |
DC 70V (between+measuring terminal and - measuring terminal), cannot input AC |
|
Measure method |
Internal resistance measurement: 1KHz AC 4-terminal test method, open circuit terminal voltage 3V max Measurement current: 2.0mA~200mA (different measurement current for different range gears) Temperature measurement: NTC temperature sensor (10K Ω at 26 ℃) A/D conversion method: successive approximation type Display update frequency: 5 times/second |
|
Response time |
200ms |
|
Measure time |
About 2s |
|
LCD size |
70.1mm × 52.6mm/3.5 inches (320 * 240 resolution 16 bit true color screen) |
|
Instrument size |
L*w*H:190mm×121mm×51mm |
|
USB interface |
Equipped with USB interface, data storage can be uploaded to the computer, saved and printed |
|
Bluetooth |
Yes |
|
Remain and store function |
There are manual hold and storage, automatic hold and storage |
|
Measure judgement function |
Pre-set threshold values for PASS, Warning, and FAIL determination |
|
Battery voltage |
Battery level displayed in 5 bars, reminding to charge in a timely manner when the battery voltage is low |
|
Automatic shutdown |
No operation during startup, automatically shuts down after about 15 minutes (can be turned off in settings) |
|
Power consumption |
300mA MIN / 500mA MAX |
|
Weight |
Instrument: 480g (including battery) |
|
Working temperature and humidity |
-10℃～40℃; below 80%RH |
|
Storage temperature and humidity |
-20℃～60℃; below 70%RH |
|
Insulation resistance |
20M Ω or above (500V between circuit and casing) |
|
Voltage-resistance |
AC 3700V/RMS (between circuit and casing) |
|
External magnetic field |
＜40A/m |
|
External electric field, |
＜1V/m |
|
Applicable safety regulations |
IEC 61010 |
