XIAMENLab Dip Coater Film Coating Machine
SPECIFICATION
TOB-PTL-MM02 program-controlled dip coating machine through pulling wire, vertical immersion to pull the sample, the sample impregnated in liquid film material for a period of time and then pulled out, so that the sample surface cover a certain thickness of film. The dip coater is controlled by PLC program, which can set the pulling speed, dipping time of sample in liquid film material, feeding speed of sample in liquid film material, cycle times of sample in liquid film material and drying time of sample. It can also be equipped with a constant temperature drying oven, so that the film growth process in a constant temperature. The dip coating machine is compact in size and can save laboratory space, simple operation, suitable for beginners to use, easy to clean up. Therefore, the dip coater is widely used in the laboratories of colleges and universities, research institutes and enterprises.
Main features

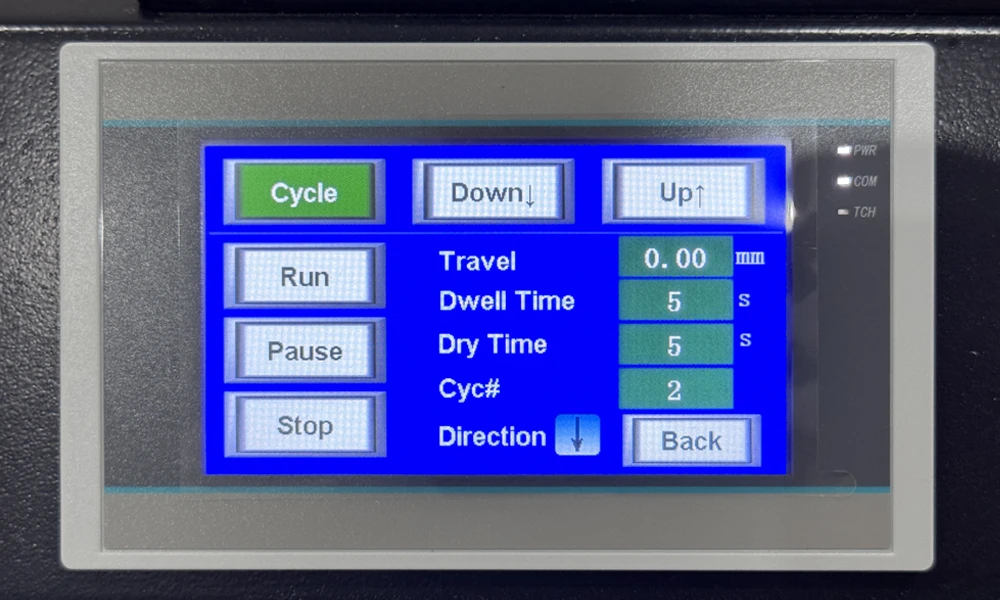

Use color touch screens to facilitate parameter settings and adjustments.
With CE certification.
The technology of suspended motors is used for shock absorption.
Adopt high -precision step motor.
|
Product name |
TOB-PTL-MM02 Programmable Dip Coating machine |
|
Model |
TOB-PTL-MM02 |
|
Installation conditions |
This dip coater requires that below altitude 1000m to use, temperature 25℃± 15℃, and humidity at 55%RH ± 10%RH. 1. Water：unnecessary 2. Electric: AC220V 50Hz, must have a good ground 3. Air：unnecessary 4. Workbet: size 800mm × 600mm × 700mm, load -bearing more than 200kg 5. Ventilation device: no need |
|
Main parameter |
1. Power supply:220V |
|
2. Power:50W |
|
|
3. Raised speed:1 mm/min-200mm/min |
|
|
4. Effective dip length:60㎜ |
|
|
5. Dip drying time setting :1-999s |
|
|
6. Number of can be lifted: 1-20 times |
|
|
7. Lift load: ≤100g |
|
|
8. Sample size:75mm×25mm×2.5mm |
|
|
9. Product spec: Size:320mm×260mm×560mm； Weight:17kg |

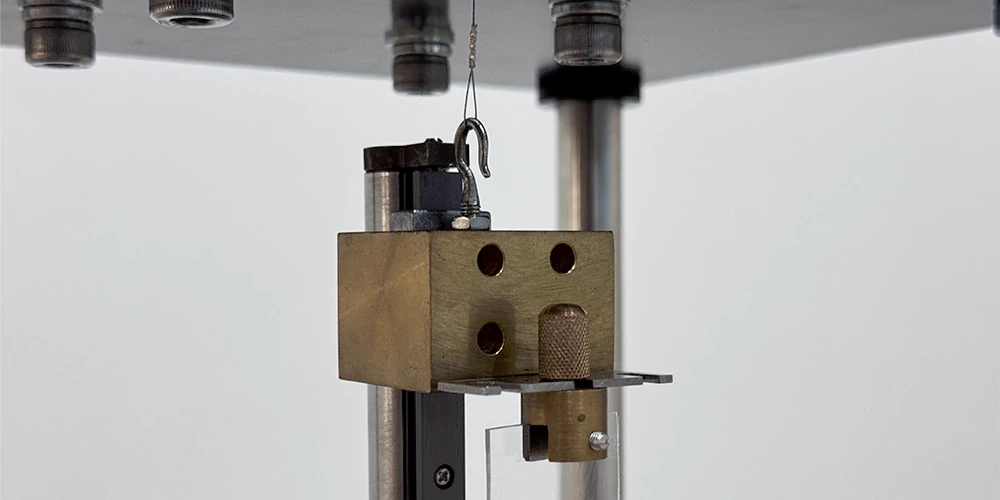

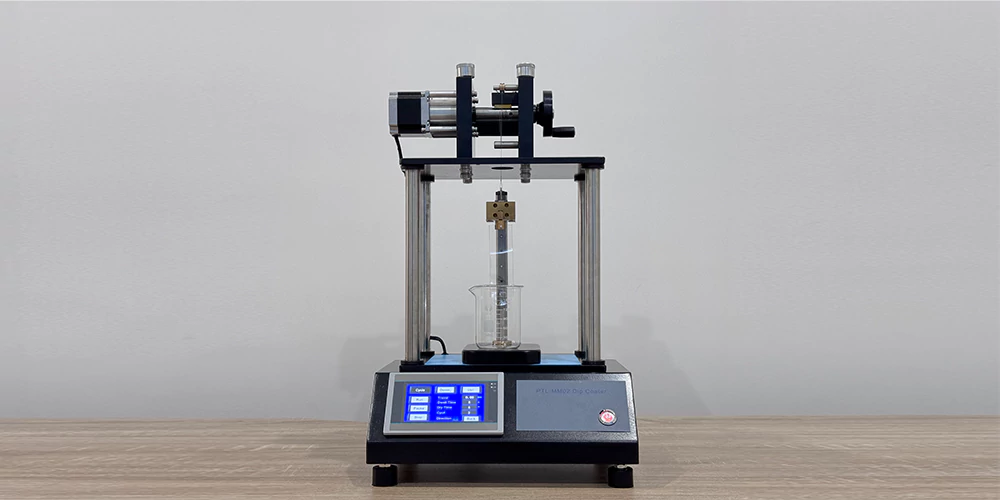

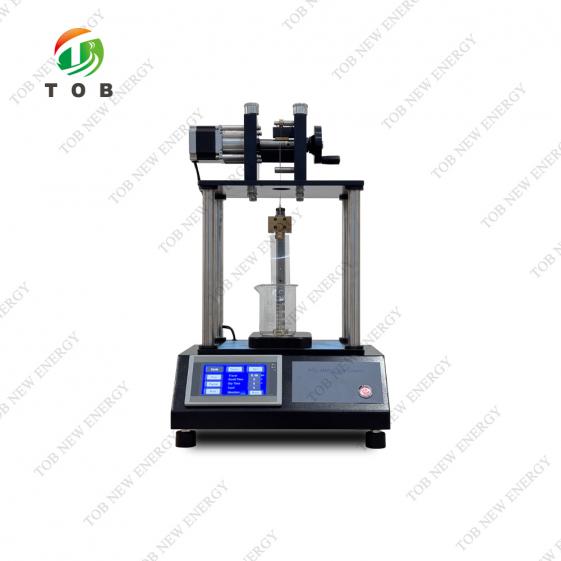

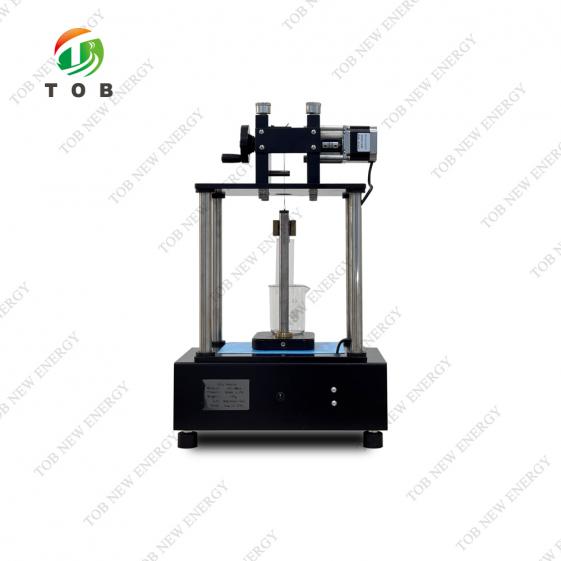

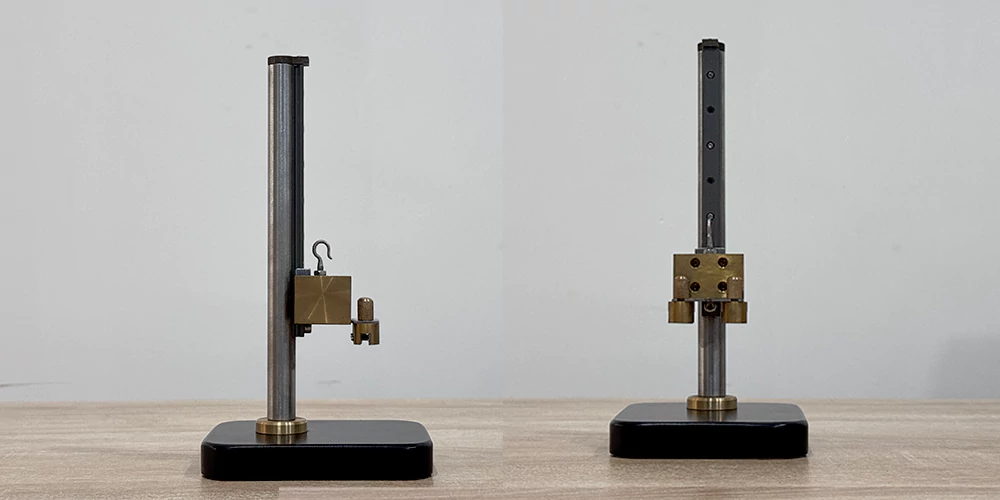

Product Display
