Lab Dry Electrode Film Forming Machine
Brand:
TOB NEW ENERGYitem no.:
TOB-JS200W-Border(moq):
1Payment:
L/C,T/Tproduct origin:
Chinashipping port:
XIAMEN
Lab Dry Electrode Film Forming Machine
SPECIFICATIONS
This TOB-JS200W film forming machine is a laboratory dry electrode research equipment that can be used for the powder to film forming process.
Main feature:
* Hot rolling, thermostat control temperature adjustable, and digital display.
* Adopt double servo rolling, accurate speed and precision
* The control box is separated from the machine for easy operation.
* Can choose to work with or without heating.
* Horizontal design for easy material feeding and rolling.
* The rolls have high hardness and hard chrome plated surface, with hardness up to HRC62 and rust resistance.
* High rolling precision, roll cylindricity ≤±2um.
* Pressing thickness and speed is adjustable, delicate and beautiful appearance.
* Electric rolling, forming automation, can be reversed operation.
* Small size, easy to operate, flexible and fast to use.
Working process and commissioning instructions
Roll rolling operation:Put the material between the two rolls, press the start button, the double servo motor will start and drive the rollers to achieve roll-to-roll rolling
Roll rolling gap adjustment:Adopt inclined block to adjust the press gap, good self-locking, rotate the left and right adjusting handwheel to adjust the gap, percentage meter value display, intuitive and convenient.
Temperature adjustment:The green number displayed on the thermostat indicates the current temperature setting value, the red word displayed indicates the current temperature detection value, press the "up, down" ammonium key to adjust the set temperature value.
| Model | TOB-JS200W-B |
| Drive method | Double servo motors are used to drive the rolls |
| Source voltage | AC 220V/50HZ or Customized |
| Roll placement | Horizontal placement |
| Temperature control accuracy | ±0.5℃ |
| Temperature resolution | 0.1℃ |
| Operation method | Electric |
| Power | 1500W |
| Warranty | One Year limited warranty with lifetime support |
| Roller temperature | RT-130℃, adjustable digital display value (200℃Not recommended for long time use) |
| Roller diameter | Φ96mm |
| Roller surface hardness | HRC62 |
| Roller finish degree | >0.4 |
| Roll cylindricity | ≤±2um |
| Rolling press thickness | 0-3mm, Adjustable (can custom to 3mm, but standard is 2mm) |
| Rolling press width | 0-200mm |
| Working speed | 0-40mm/s |
| Dimension(L*W*H) | L820*W450*H400mm |
| Machine Weight | About 100kg |
| Standard Accessories | One set of hexagonal wrench, 2 pieces of digital micrometer, 1 plug gauge |
PRODUCT DISPLAY

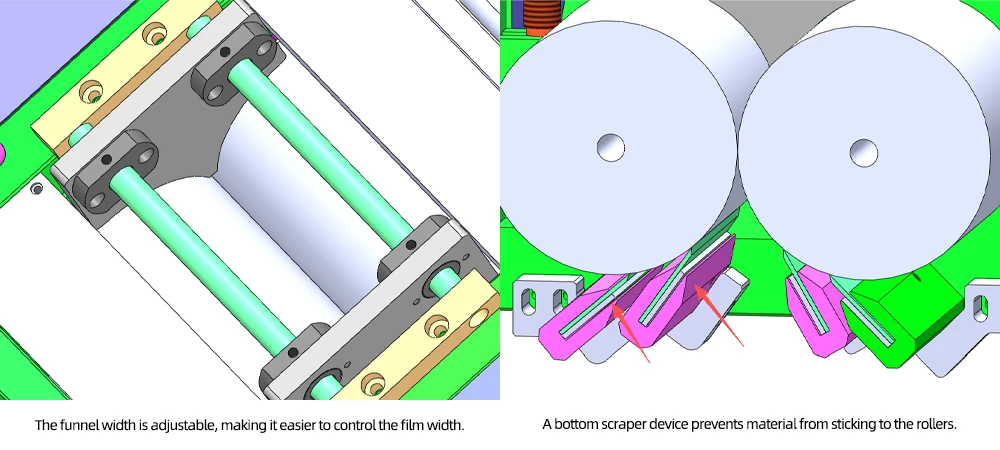

The funnel width is adjustable, making it easier to control the film width.
A bottom scraper device prevents material from sticking to the rollers.
