Laboratory Battery Edge Hotting Machine 300*150mm

This edge hotting machine is used for lithium pouch cell/Lithium polymer cell Edge hot shaping after edge folding.

item no.:
TOB-LB-TB300
order(moq):
1set
Payment:
L/C,T/T,Western Union, Paypal
product origin:
China
shipping port:
XIAMEN
Lead Time:
7days

inquiry now

Product Detail

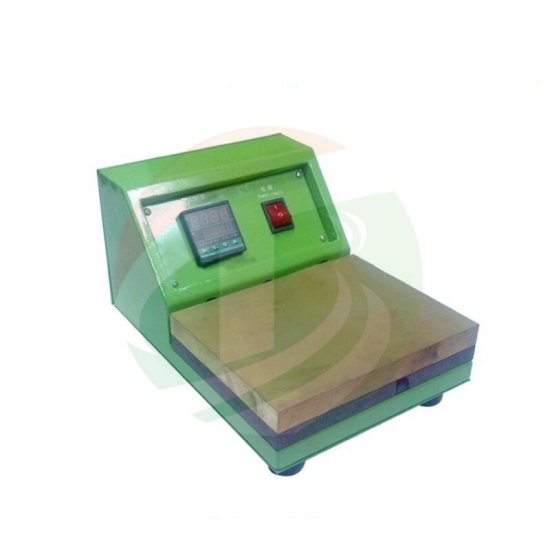

Laboratory Battery Edge Hotting Machine 300*150mm For Pouch Cell

SPECIFICATIONS

Thisedge hotting machineis used forlithium pouch cell/Lithium polymer cell Edge hot shapingafter edge folding.

Main features:

1 Imported temperature controller can control the temperature of heating plate accurately, temperature can be arbitrarily adjusted from room temperature to 250 degrees.

2 Unique safety protection, prevent scald design, the temperature of the ironing table can be adjusted by the temperature controller panel button settings.

3 The hot edge plate is made of copper material, having many advantages about good heat transfer ,save power consumption, improve work efficiency.

4 Can be applied to different specifications of the battery.

5 Small size, simple operation.

Model	Lab Edge Hotting Machine TOB-LB-TB300
Hot platform size	(length)300mm*(width)150mm
Temperature	0～250℃ temperature adjustable digital display
Heating tube	500W
Current Source	AV200V/50HZ
Power	1.5KW
Dimension (LWH)	380200165mm
Weight	20KG
Heating mechanism	A copper heating work station
Electrical and standard parts	Temperature controller:0mron Solid state relay:0mron

PRODUCT DISPLAY

STANDARD PACKAGE LIST

Item	Qty
Battery edgehotting machine	1 set
Power line (according to your requirements )	1 pcs
Foot pedal	1 pcs
socket head wrench	1 set
Operating manual (English)	1 book

Email : tob.amy@tobmachine.com

Skype : amywangbest86

Whatsapp/Phone number : +86 181 2071 5609

Related Tags :

Laboratory Edge Hotting Machine

300*150mm Hotting Machine

Previous:
Pouch Cell Edge Press Machine
Next:
Pouch Cell Edge Hotting Machine

Send a Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : Laboratory Battery Edge Hotting Machine 300*150mm

our works

related products

Automatic Battery Edge Cutting, Folding And Hotting Machine

This machine is an automatic three in one machine for polymer battery edge cutting, folding(Trimming) and hotting(Perming).

Lithium Ion Battery Edge Folding Machine

Battery edge Folding machine is mainly used for lithium polymer battery pouch edge folding in order to get good appearance for the cells and avoid damage by the sharp edge.

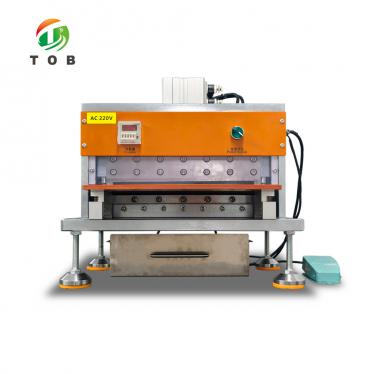

Pouch Cell Edge Cutting Machine
