Pouch Cell Edge Hotting Machine

This battery edge hotting machine is mainly used for lithium polymer battery pouch edge ironing press after pouch folding in order to get good appearance for the battery and avoid damage by the sharp edge.

Brand:
TOB NEW ENERGY
item no.:
TOB-P-TB30
order(moq):
1set
Payment:
L/C,T/T
product origin:
China
shipping port:
XIAMEN
Lead Time:
30days

inquiry now

Product Detail

Manual Hotting Machine For Lithium Polymer Battery Pouch Edge Ironing

SPECIFICATIONS

1 Battery edge hotting machine is mainly used for lithium polymer battery pouch edge ironing press after pouch folding in order to get good appearance for the battery and avoid damage by the sharp edge.

2 TOB-P-TB30 manual hotting machine has a constant temperature auto control function, It is mainly used for lithium-ion pouch cell research and production line.

Model	TOB-P-TB30
Size of the hot plate	300mm*300mm
Temperature control accuracy	±3℃
Voltage	AC110V/220V, 50/60Hz
Power	150W
Edge hotting press length	200mm
Size	300300460mm
Weight	30KG
Adjustable temperature
The hot plate is made of copper plate with a parallelism of less than 0.1mm.

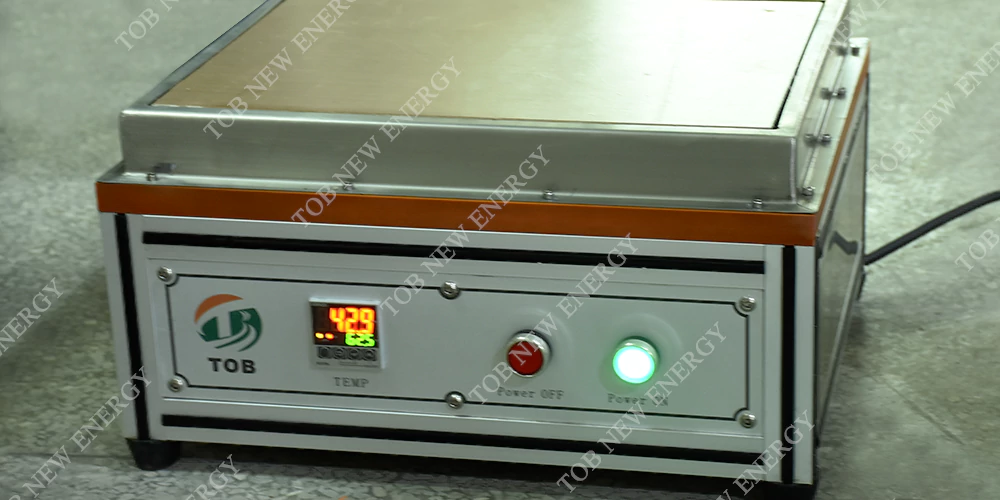

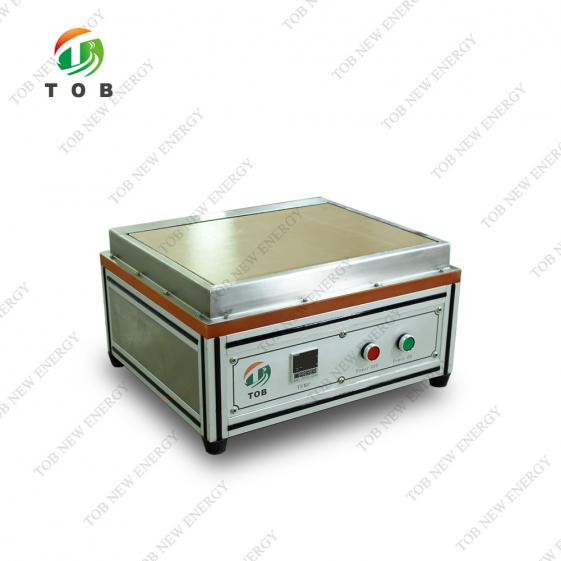

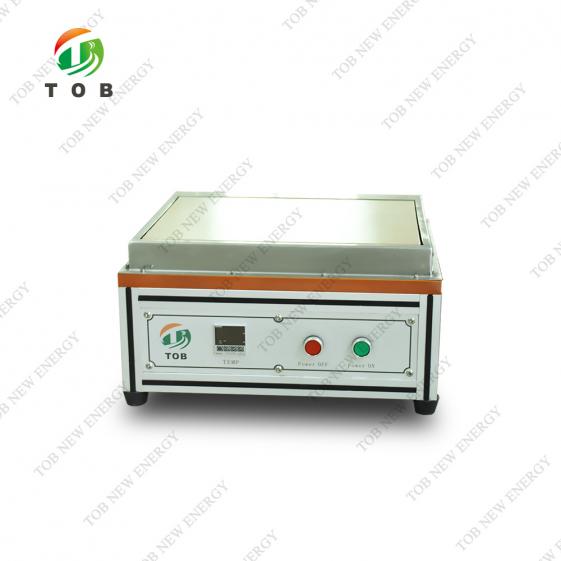

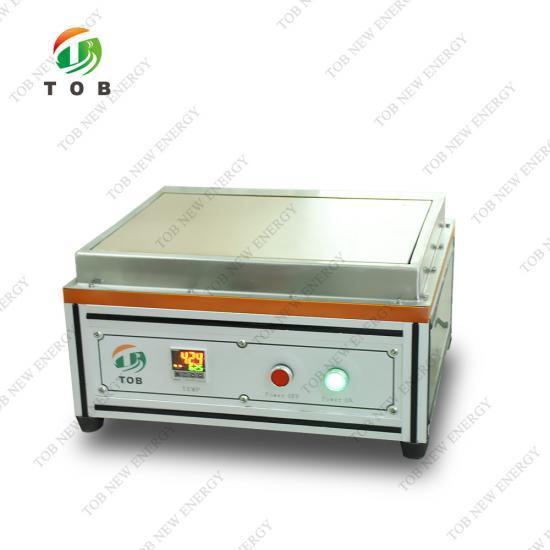

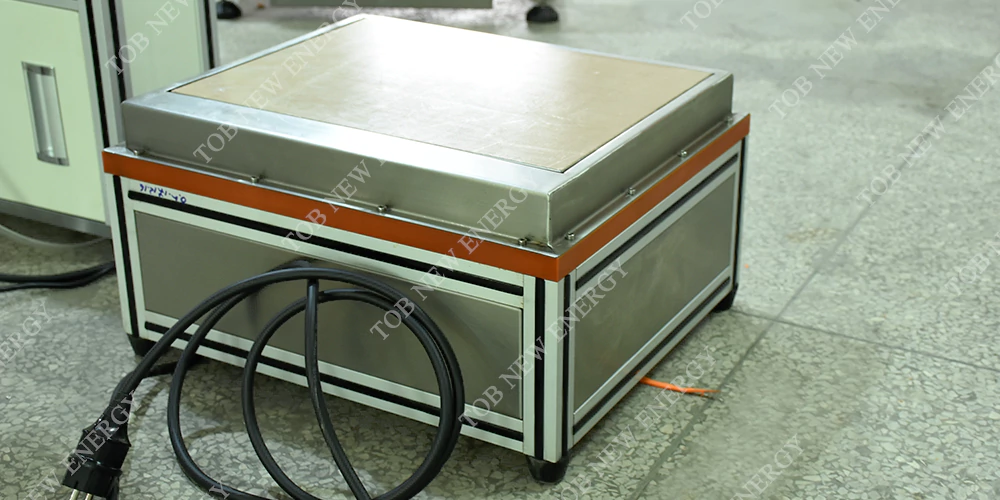

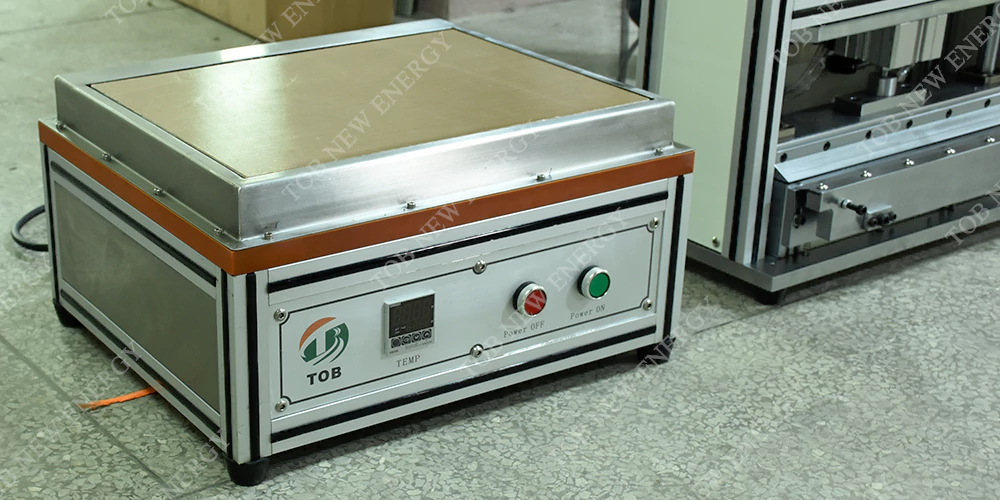

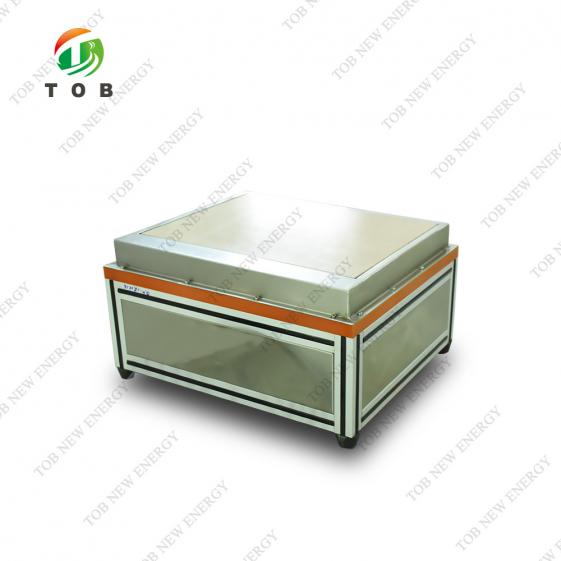

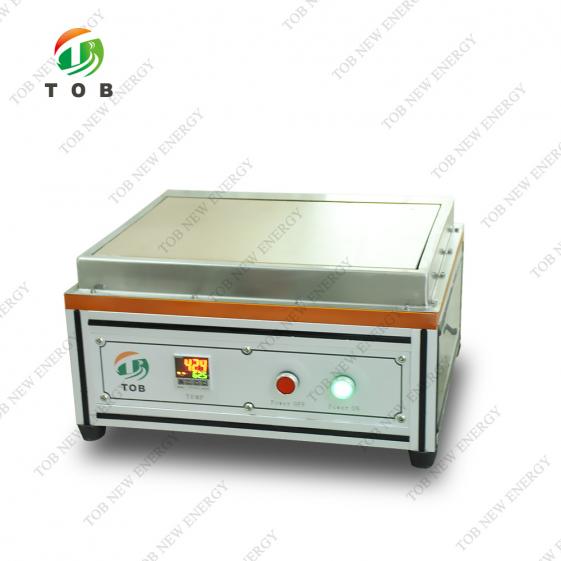

Product Display

Pouch Cell Edge Hotting Machine
