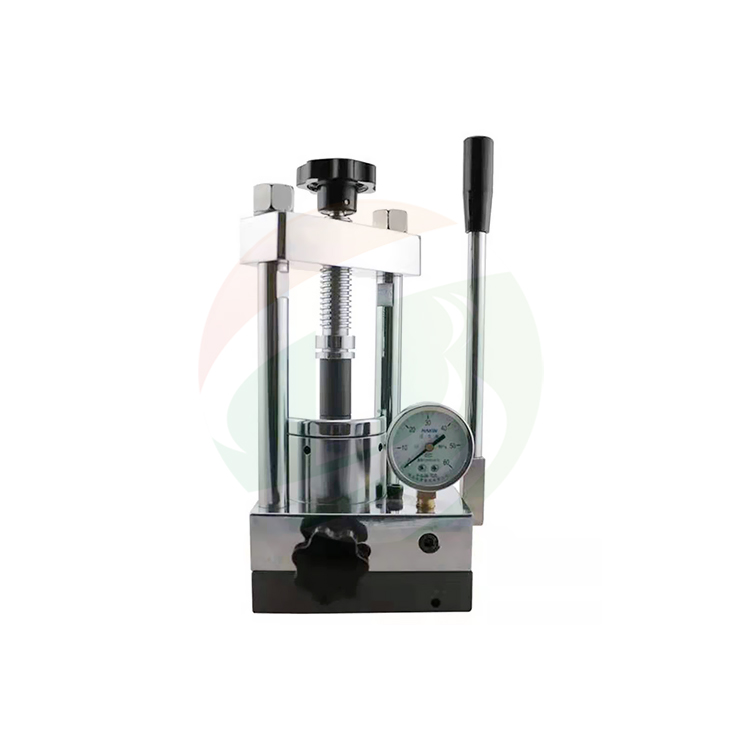

Laboratory Powder Tablet Press Machine

TOB-NL-12 powder tablet pressing machine is a kind of miniature pressure testing machine, specially designed for the preparation of powder sample pieces by infrared spectrometer.

Brand:
TOB NEW ENERGY
item no.:
TOB-NL-12
order(moq):
1
Payment:
L/C,T/T,Western Union
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

Laboratory Powder Tablet Press Machine for Experiment

SPECIFICATIONS

TOB-NL-12 powder tablet pressing machine is a kind of miniature pressure testing machine, specially designed for the preparation of powder sample pieces by infrared spectrometer. It is a small, labor-saving, convenient and specific manual hydraulic type infrared tablet pressing machine.
Also can be used for other pressure test, with pressure measurement indicator function, especially suitable for various Fourier infrared spectrometer imported from abroad, can replace imported accessories to reduce capital cost, and durable, reliable performance, excellent quality and reasonable price. Humanized design of the 13mm mold can be used according to user habits without demoulding NL-12 type, can also choose easy demoulding NL-2 type, and has been equipped with a variety of spectrometer matching connection board.

Rated pressure range: 0-12 tons (0-36mpa) pressure gauges to 15 mpa is approximately 5 tons.
Piston diameter: 65mm
Work itinerary: 20mm
Working space: 95×85mm
Dimensions: 175×175×300mm
Weight:15KG

PRODUCT DISPLAY

Tablet press machine

tablet pressing machine Powder tablet make machine

Email : tob.amy@tobmachine.com

Skype :amywangbest86

Whatsapp/Phone number :+86 181 2071 5609
