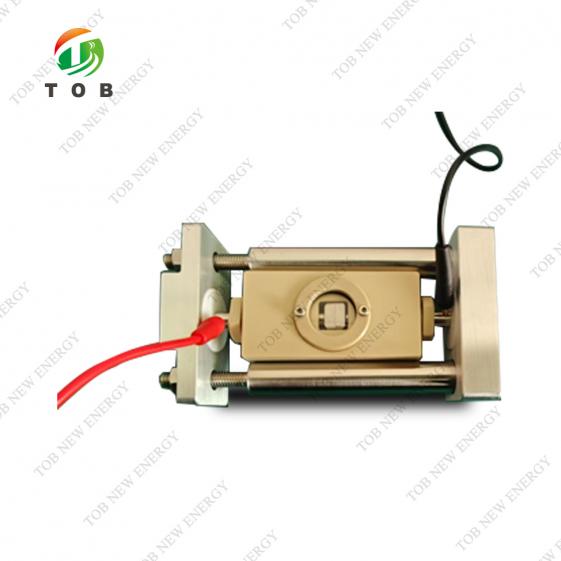

Optical Characterization Test Device for Solid-State Batteries

This TOB-YCGTGX-10 solid-state batteries optical characterization test device is suitable for cross-sectional analysis via optical microscopy, Raman spectroscopy, and infrared (IR) spectroscopy.

Brand:
TOB NEW ENERGY
item no.:
TOB-YCGTGX-10
order(moq):
1
Payment:
L/C,T/T
product origin:
China
shipping port:
xiamen

inquiry now

Product Detail

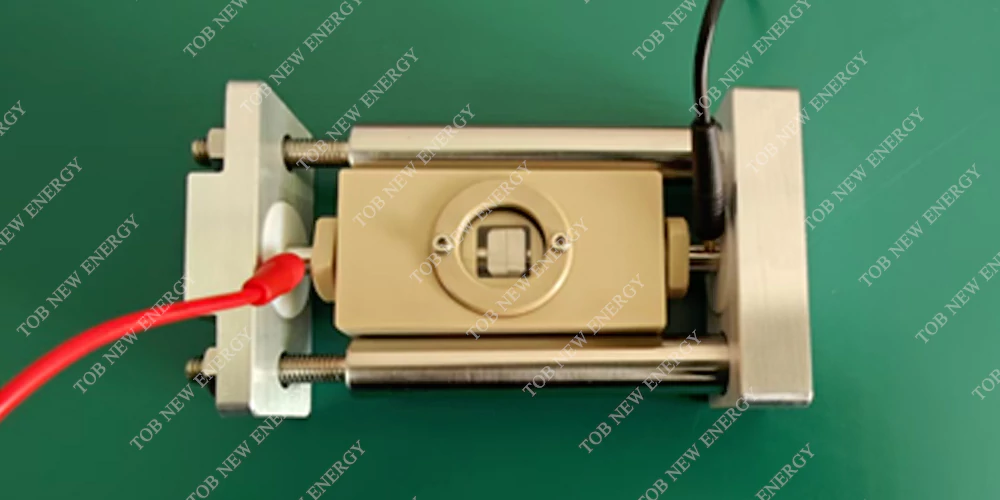

Optical Characterization Test Device for Solid-State Batteries

Specifications

This TOB-YCGTGX-10 solid-state batteries optical characterization test device is suitable for cross-sectional analysis via optical microscopy, Raman spectroscopy, and infrared (IR) spectroscopy.

(1) Compatible with batteries: inner diameter ≤10 mm, thickness ≤3 mm.

(2) Fixture dimensions: 115 mm (length) × 28 mm (height) × 60 mm (width).

(3) Suitable for cross-sectional analysis via optical microscopy, Raman spectroscopy, and infrared (IR) spectroscopy.

Optional mold 1	Microscope and Raman test mold
Optional mold 2	Infrared Testing Mold (observation window needs to be changed)

Optical Characterization Test Device for Solid-State Batteries

Email : tob.amy@tobmachine.com

Skype : amywangbest86

Whatsapp/Phone number : +86 181 2071 5609
