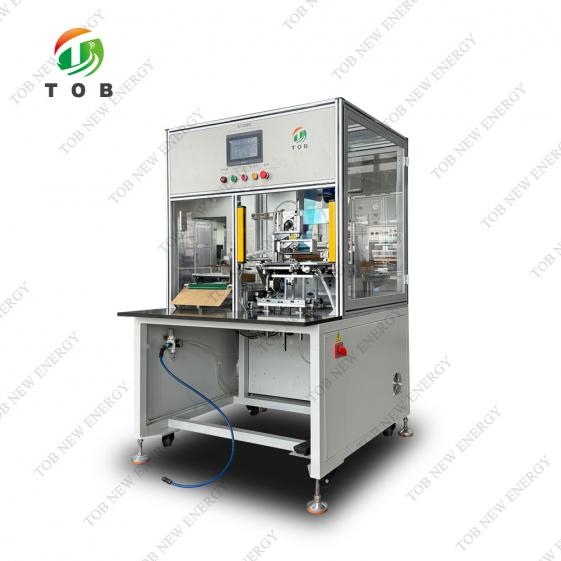

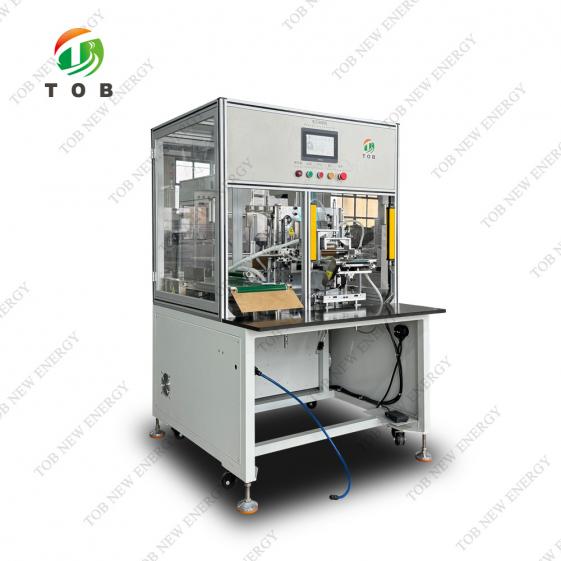

Pouch Cell PET Film Wrapping Machine

Pouch Cell PET Film Wrapping Machine

SPECIFICATIONS

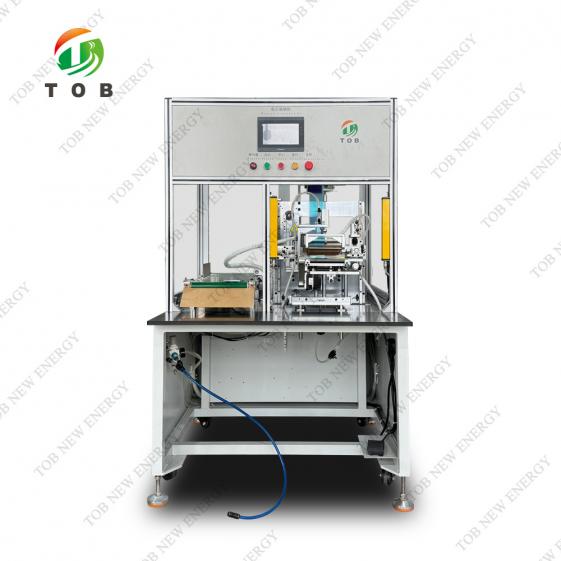

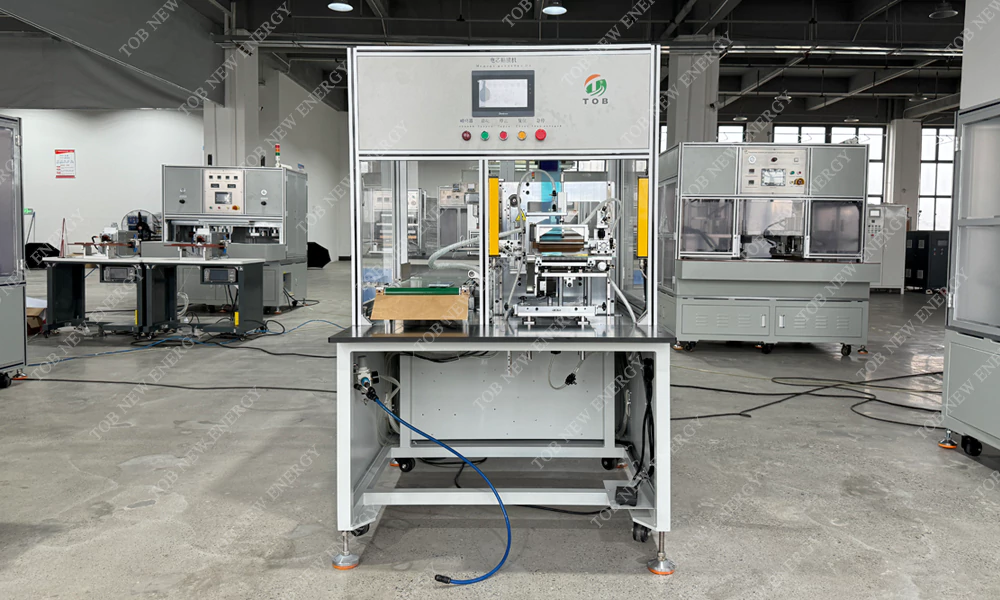

This TOB-TMJ-350 PET film wrapping machine is used for automatically sticking the PET protective film on the lithium pouch battery cell after the top-side sealing, so as to avoid scratching the surface of the battery cell during the flow process.

Basic parameters

1. Configuration power supply: AC220V/50Hz, Power: 1.5KW

2. Vacuum source: compressed air: ≥0.6Mpa 10L/Min (user-supplied)

3. Equipment weight: About 400Kg

4. Dimensions: (LxWxH) 1000x1100x1650mm

5. Appearance color: International warm gray 1C or customized

6. Utilization: ≥ 95%

7. Qualification rate: ≥ 99%

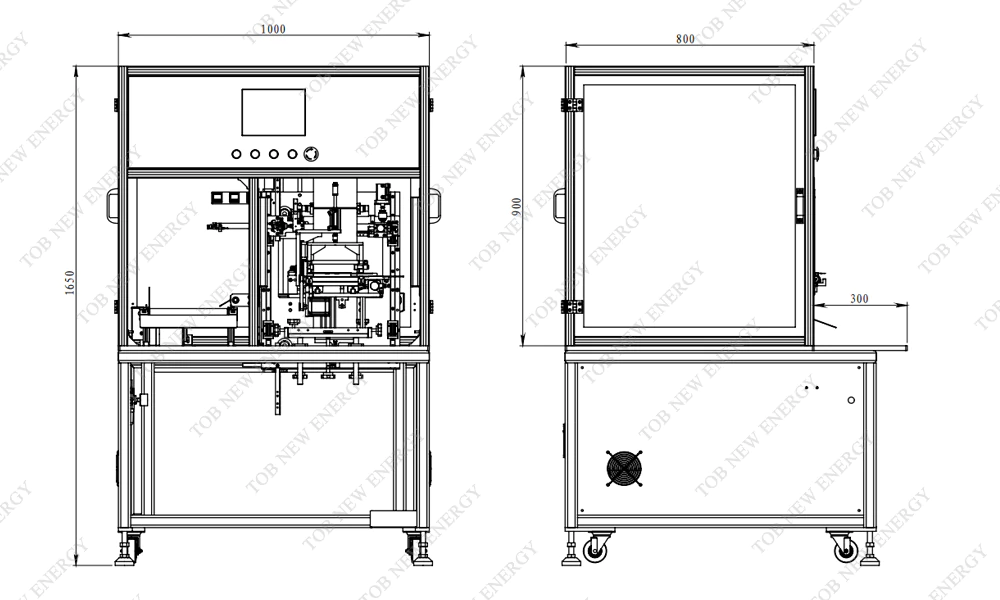

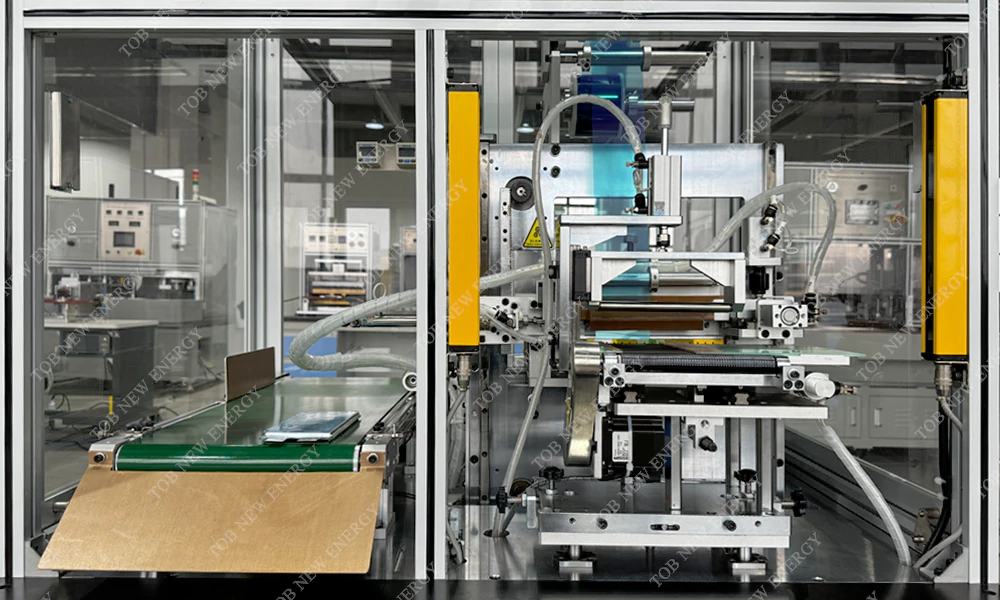

8. Structure diagram:

Technical parameter

1. Applicable cell : width: 50-150 mm (excluding air bag), height: 80～200mm, thickness: 3～12mm

2. Can be adjusted according to different types of batteries, battery width adjustment range: 50 ~ 150 mm (excluding air bags)

3. Incoming parameters: the maximum outer diameter of the protective film is 300mm, and the installation inner diameter is 3inches

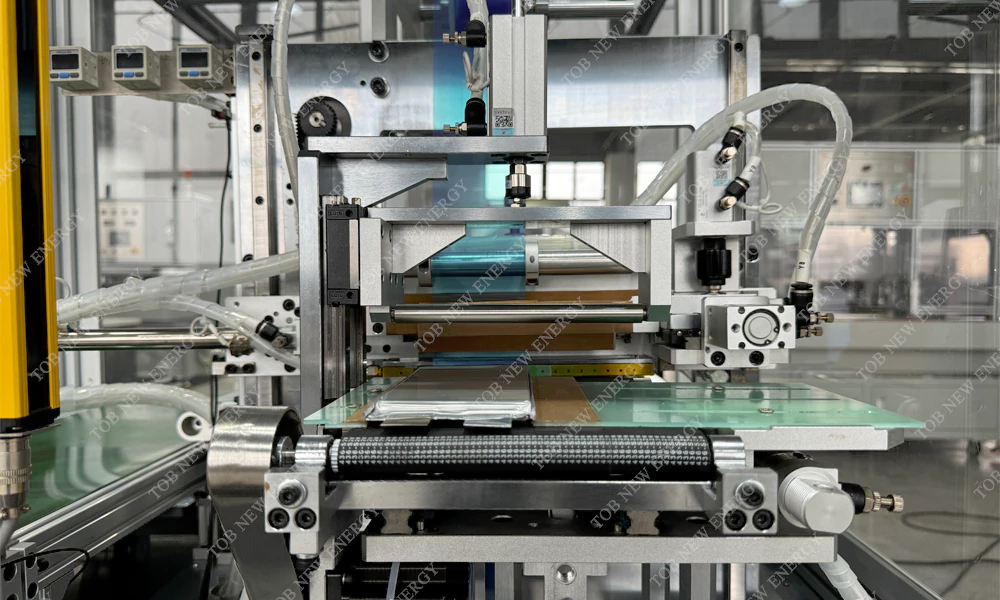

4. The effective length of the film pressing roller is 160mm

5. After the protective film is applied to the cell, the misalignment accuracy of the cell film in the length direction is ±1mm, and the accuracy in the width direction is ±1mm

6. Capacity: 800-1200pcs/h

Process performance

1. The machine needs to manually place the battery cells, single-person single-machine operation

2. The protective film on the top edge of the cell is neat, without deflection, and the length accuracy is ±0.5mm

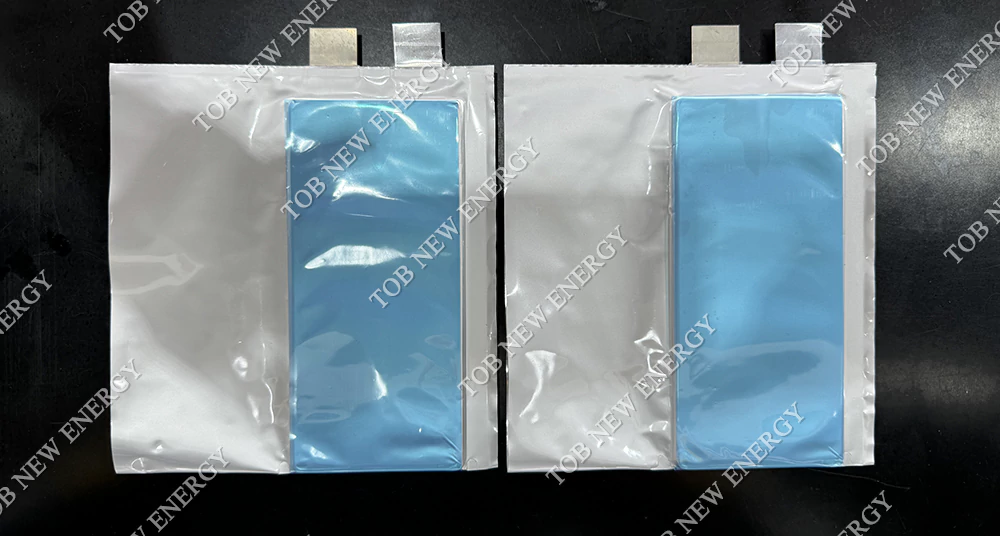

3. There are no bubbles and wrinkles inside the battery body after the protective film is pasted

4. To change the different model cell, it is necessary to adjust the gap between the film rolls (if the thickness does not change much, no adjustment is required) and the film pulling parameters
