Automatic Battery Slurry Feeding Machine with Peristaltic Pump for Battery Electrode Preparation

Automatic Battery Slurry Feeding Machine with Peristaltic Feeding Pump for Battery Electrode Preparation

Specification

1. Product model：TOB-SF-08
2. Product Brief：TOB-SF-08 is an automatic slurry feeder with peristaltic pump and stainless steel reservoir, for Li-ion battery electrode coating process, The flow rates of the pump can be adjusted by the knob, It is a peristaltic pump that meets a variety of flow rates.

3. Features: * Adjustable flow rate.
*Convenient and fast pump tube replacement.
*Low noise and small space occupation.
*Simple structure, no maintenance required.
*With three rotors, the pulsation is moderate.

4. Product appearance (subject to actual product)
5.Work process description
(1)Connect the power supply.
(2)It can be used by adjusting the speed through the governor.

6. Tube change operation

7. Parameter
*Voltage: 24V, with matching power supply
Equipment voltage：220V/110V 50Hz
Power：100W
*Pulsation: Three rollers, small pulsation.
*Pump head: engineering plastic.
*Weight：300g.
*Piping model：Φ2.5mmXΦ4.5mm.
*flow：17~50ml/min.

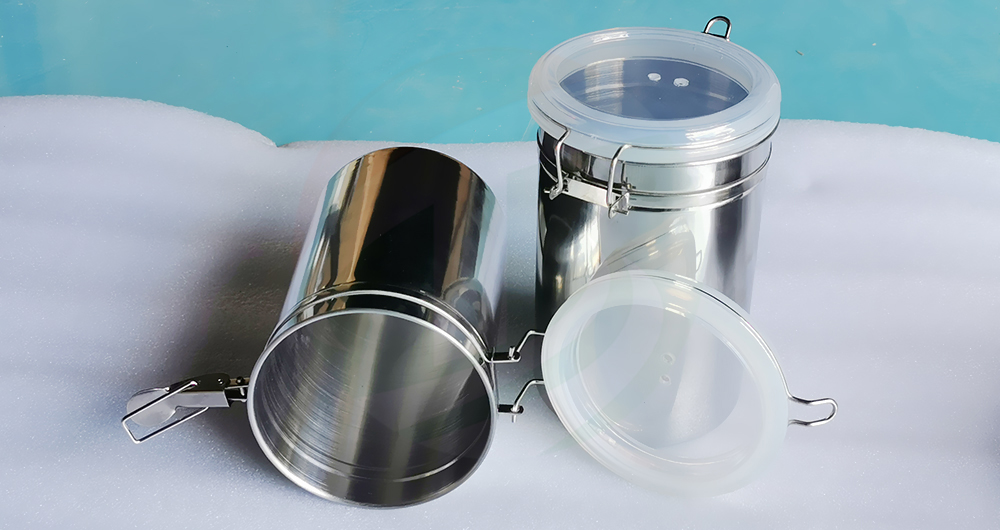

Accessories: 2 stainless steel jars (the equipment is equipped with two flow pumps, which are used for anode and cathode slurry feeding, to avoid slurry mixing, easy to clean.)
Size：37* 18* 11cm（Plus the total height of the jar 21cm）
Packing size： 48*28*50cm

8. Quality assurance and after-sales service
(1)Lifetime maintenance, three-year warranty。
(2)After the warranty period expires, the seller will only charge for working hours and transportation for equipment maintenance, and will only charge for costs related to the replacement and purchase of equipment-related accessories。
