5L Battery Slurry Feeding System for Lithium ion Battery Research

This TOB-GL-5L battery slurry feeding system is convenient for battery capacitance and various process coating material, can also be applied to various slurry supply.

Brand:
TOB NEW ENERGY
item no.:
TOB-GL-5L
order(moq):
1set
Payment:
L/C,T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

5L Battery Slurry Feeding System for Lithium ion Battery Research and Manufacturing

SPECIFICATIONS

Battery slurry feeding system is convenient for battery capacitance and various process coating material, can also be applied to various slurry supply. The device is beautifully designed and equipped with speed-regulating peristaltic pump to realize high-precision flow feeding.

Characteristic

1. The body is made of corrosion-resistant material to prevent slurry pollution, beautiful and exquisite.

2. Corrosion resistant pipeline, can be applied to a variety of acid, alkaline slurry, can also be selected according to customer requirements.

3. The flow rate can be adjusted to match the flow rate required by the coating equipment.

4. Compact size, convenient maintenance, when applied to our coater, coater linkage control feeding supply can be realized.

5. Buffer tank with stirring function, can be opened and closed.

Model	TOB-GL-5L
Feeding pump	Speed-regulating peristaltic pump
Slurry viscosity	2000~12000 (mPas)
Feed flow rate	<450ml/min
Feed speed	<150rpm
Mixing method	Anchor type mixing, mixing speed adjustable
Storage tanks	SS304,Effective volume is 5L
Voltage	100~240VAC±10%,50Hz/60Hz,100W
Size	L600W320H780mm
Weight	About 50kg

PRODUCT DISPLAY

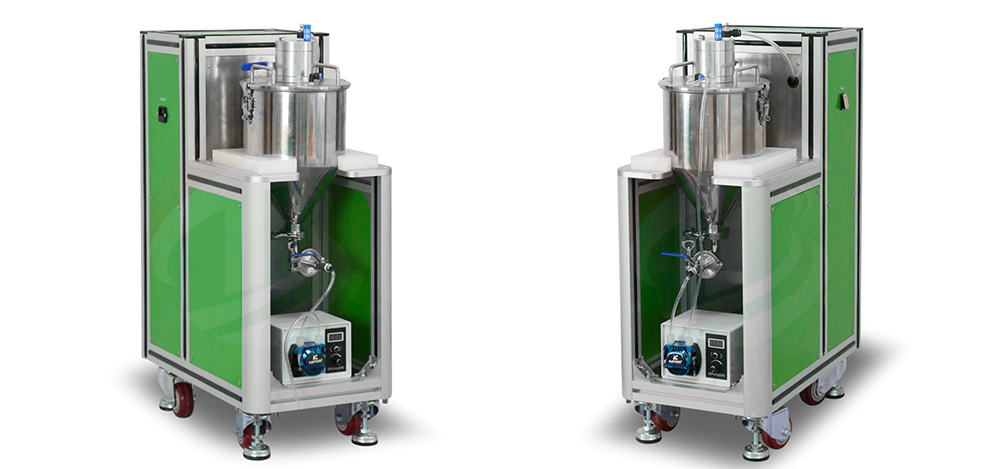

Battery Slurry Feeding System

More battery mixing machine

Email : tob.amy@tobmachine.com

Skype :amywangbest86

Whatsapp/Phone number :+86 181 2071 5609

Related Tags : Battery Slurry Feeding System Battery Slurry Feeding Machine Battery R&D equipment
