Protection Board For Lithium Battery Packs

Protection Board and BMS Importance: Essential for lithium battery safety, preventing overcharge, over-discharge, and thermal runaway.

Brand:
TOB NEW ENERGY
item no.:
TOB-Protection Board
order(moq):
1
Payment:
L/C,T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

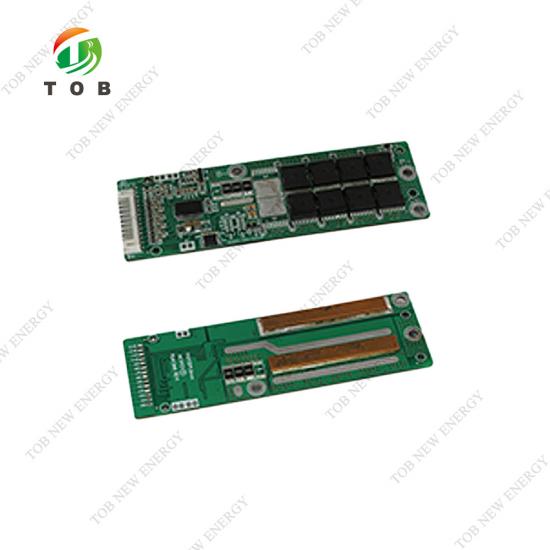

Protection Board For Lithium Battery Packs

SPECIFICATIONS

product model	TOB-04B2
battery series	3-4S
current	10A
project IC	sino wealth
battery type	Li-ion/Lifepo4
package	SOP8
C&P	3C3D
balance	NO
size	60288mm

product model	TOB-07B101
battery series	7S
current	30A
project IC	sino wealth
battery type	Li-ion/Lifepo4
package	TO-263
C&P	5C5D
balance	choosable
size	133608mm

product model	TOB-13B81
battery series	13S
current	35A
project IC	sino wealth
battery type	Li-ion/Lifepo4
package	TO-263
C&P	6C6D
balance	choosable
size	295688mm

product model	TOB-13M6
battery series	7/10/12/13S
current	60-90A
project IC	sino wealth
battery type	Li-ion/Lifepo4
package	TOLL
C&P	5C5D
balance	choosable
size	1103510mm

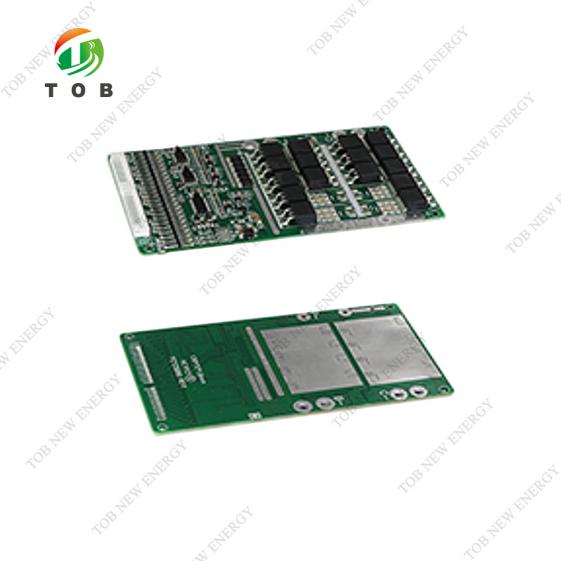

Battery Pack Protection Board

product model	TOB-25B88G
battery series	21-25S
current	50A
project IC	sino wealth
battery type	Li-ion/Lifepo4
package	TO-263
C&P	8C8D
balance	choosable
size	1307010mm

Battery Pack Protection Board

product model	TOB-26G0
battery series	3-26S
current	120A
project IC	mitsumi
battery type	Li-ion/Lifepo4
package	TO-247
C&P	12C12D
balance	choosable
size	14011035mm

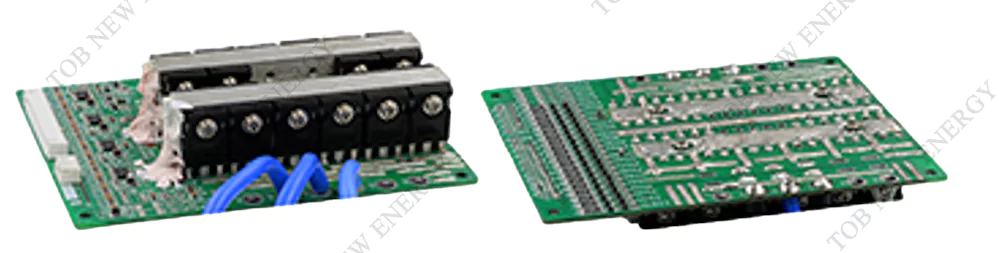

Battery Pack Protection Board

Email : tob.amy@tobmachine.com

Skype :amywangbest86

Whatsapp/Phone number :+86 181 2071 5609

Related Tags : Protection Board protection plate Battery Pack Protection Board Battery Pack Lithium Battery Packs
