Solid-State Battery XRD Testing Device
Loading...

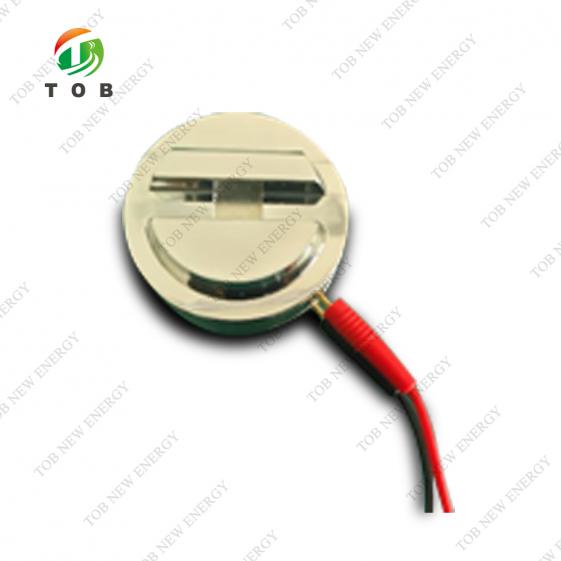

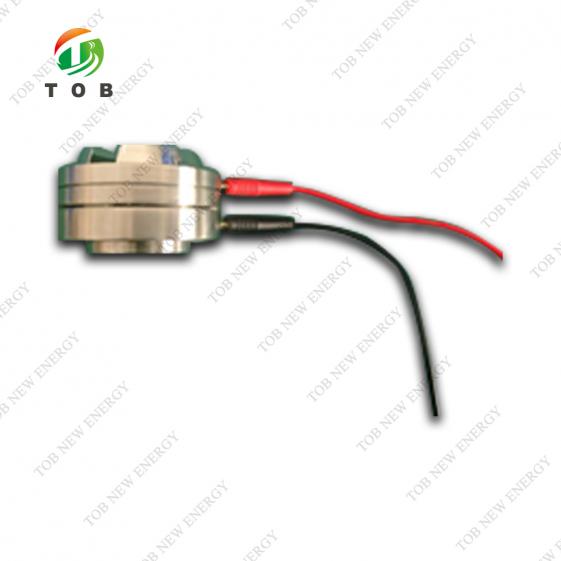

Solid-State Battery XRD Testing Device Solid-State Battery XRD Testing Device

Solid-State Batteries XRD Analyzer

TOB-YCGTXRD-16 Solid-state battery XRD analyzer: Cutting-edge crystal structure detection with rapid, non-destructive analysis for accelerated battery innovation.

  • Brand:

    TOB NEW ENERGY

  • item no.:

    TOB-YCGTXRD-16

  • order(moq):

    1

  • Payment:

    L/C,T/T

  • product origin:

    China

  • shipping port:

    xiamen
inquiry now
Product Detail

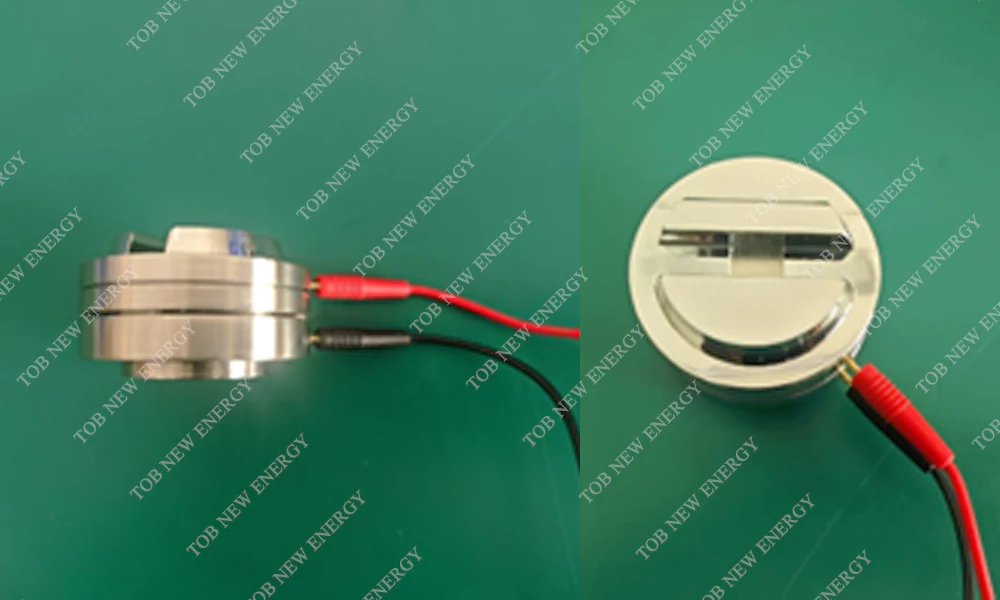

Solid-State Batteries XRD Analyzer


Specifications

TOB-YCGTXRD-16 Solid-state battery XRD analyzer: Cutting-edge crystal structure detection with rapid, non-destructive analysis for accelerated battery innovation.

(1) Compatible with batteries: inner diameter 16 mm, thickness 0–6 mm.

(2) Fixture diameter: 50 mm. Height from base to middle optical slot: 24 mm; total height: 30 mm.

(3) Requires separate mold pressing for 16 electrolyte sheets.

(4) Custom base configurations available upon request(provide test bench photos of the equipment model for dimension measurement).

Alternative: Customers may purchase a lifting platform and adjust to the required testing height.


Item 1 Mold
Item 2 16 pressing mold
Item 3 Beryllium window (diameter 30mm, thickness 0.2mm)
Item 4 Base for different models


Solid-State Batteries XRD Analyzer
