TOB Solid State Battery Split Cell Test Kit

This TOB-YCGT-Series solid-state battery split test cell kit is designed by TOB NEW ENERGY for the development and testing of solid-state battery electrolyte materials. It can be used under pressure for solid-state battery research and product quality control.

  • Brand:

    TOB NEW ENERGY

  • item no.:

    TOB-YCGT-Series

  • order(moq):

    1

  • Payment:

    L/C,T/T

  • product origin:

    China

  • shipping port:

    xiamen
inquiry now
Product Detail

TOB Solid State Battery Split Cell Test Kit

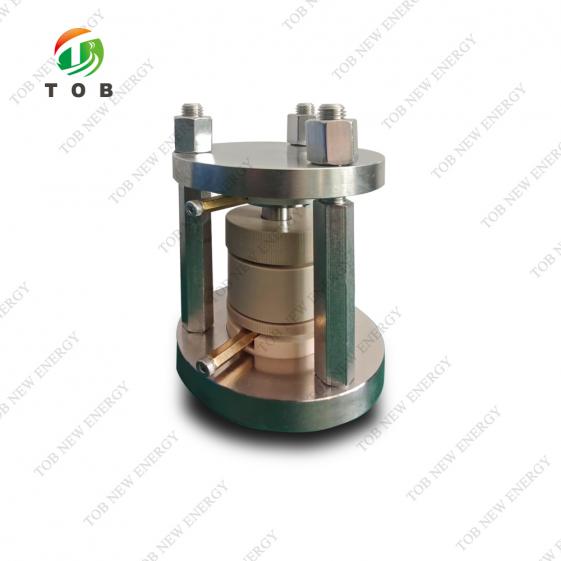

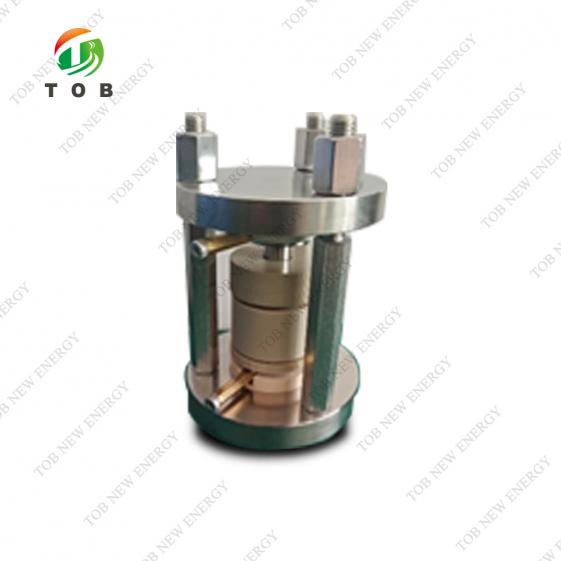

Ⅰ. TOB-YCGT-10 Solid State Battery Split Cell Test Kit

(1) Optional inner diameters: 10, 12, 13, 16 (mm), for other sizes, please contact us for customization.

(2) For 10 mm inner diameter, optional PEEK or zirconia ceramic sleeves. Sleeves are interchangeable.

(3) Fixture outer diameter: 70 mm. Height from base to the top of the three-column assembly: 109 mm.


Model: TOB-YCGT-10

Optional Sleeve 1

10mm, PEEK Sleeve

Optional Sleeve 2

10mm, Zirconia Ceramics Sleeve

Optional Sleeve 3

16mm, PEEK Sleeve


Solid State Battery Split Cell Test Kit

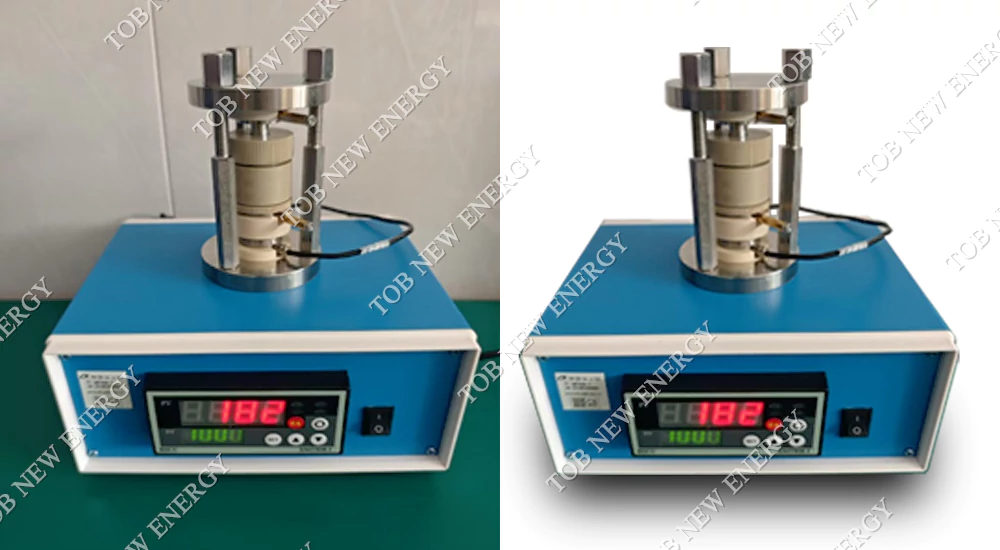

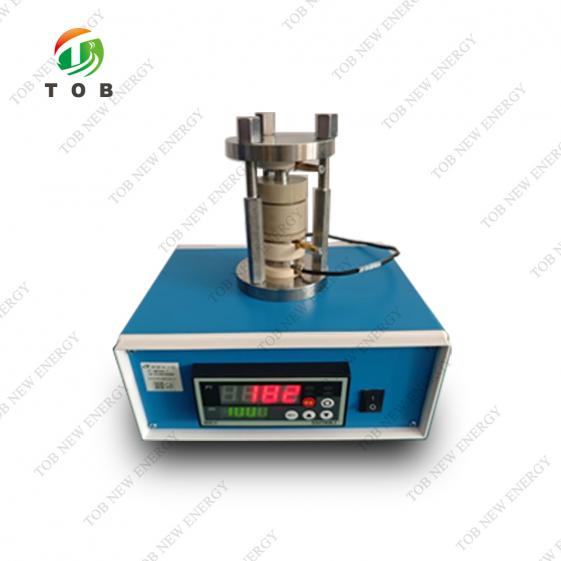

Ⅱ. TOB-YCGTXS-10 Solid State Battery Split Cell Test Kit with Pressure Sensor

(1) Optional inner diameters: 10, 12, 13, 16 (mm), for other sizes, please contact us for customization.

(2) Optional pressure sensor with 5-ton or 2-ton load cell capacity.

(3) For 10 mm inner diameter, optional PEEK or zirconia ceramic sleeves. Sleeves are interchangeable.

(4) Fixture outer diameter: 70 mm. Height from base to the top of the three-column assembly: 123 mm.


Model: TOB-YCGTXS-10

Optional Sleeve 1

10mm, PEEK Sleeve

Optional Sleeve 2

10mm, Zirconia Ceramics Sleeve

Optional Sleeve 3

16mm, PEEK Sleeve

Optional pressure sensor 1

Display＋5 ton pressure sensor（without test device）

Optional pressure sensor 2

Display＋2 ton pressure sensor（without test device）


Solid State Battery Split Cell Test Kit

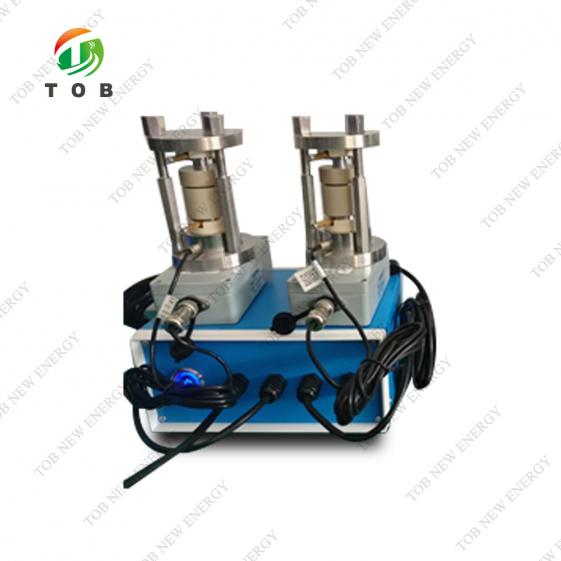

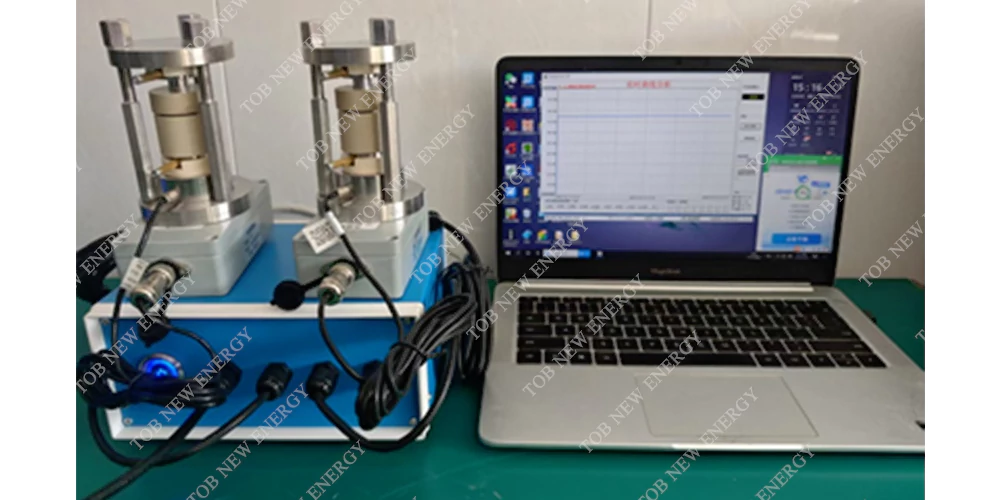

Ⅲ. TOB-YCGTQX-10 Solid State Battery Split Cell Test Kit with Pressure Curve Analysis

(1) Optional inner diameters: 10, 12, 13, 16 (mm), for other sizes, please contact us for customization.

(2) Optional pressure sensor with 5-ton or 2-ton load cell capacity.

(3) For 10 mm inner diameter, optional PEEK or zirconia ceramic sleeves. Sleeves are interchangeable.

(4) Fixture outer diameter: 70 mm. Height from base to the top of the three-column assembly: 123 mm.

(5) one computer can connect to 10 testing devices.

Model: TOB-YCGTQX-10

Optional Sleeve 1

10mm, PEEK Sleeve

Optional Sleeve 2

10mm, Zirconia Ceramics Sleeve

Optional Sleeve 3

16mm, PEEK Sleeve

Optional pressure sensor 1

Software analysis, converter, 5 tons sensor (without test device). Discount for the 2nd to 10th set.

Optional pressure sensor 2

Software analysis, converter, 2 tons sensor (without test device). Discount for the 2nd to 10th set.


Solid State Battery Split Cell Test Kit

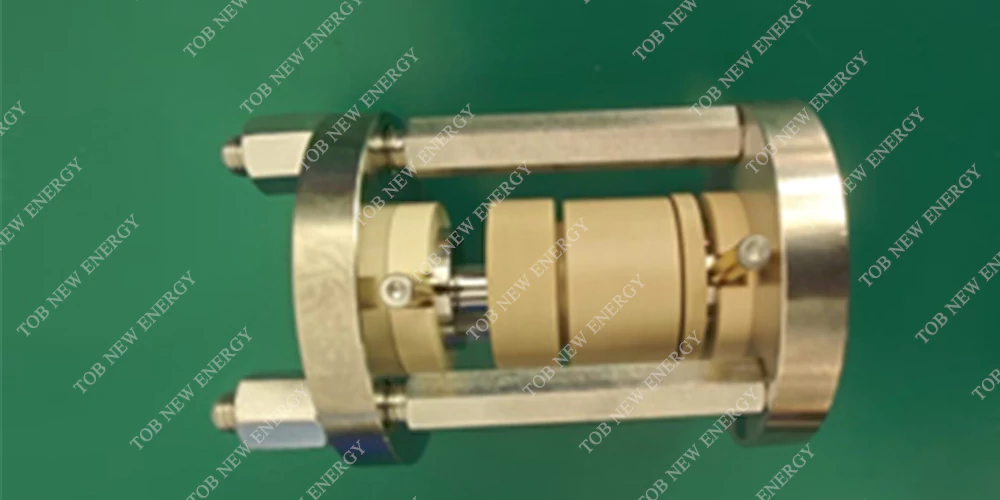

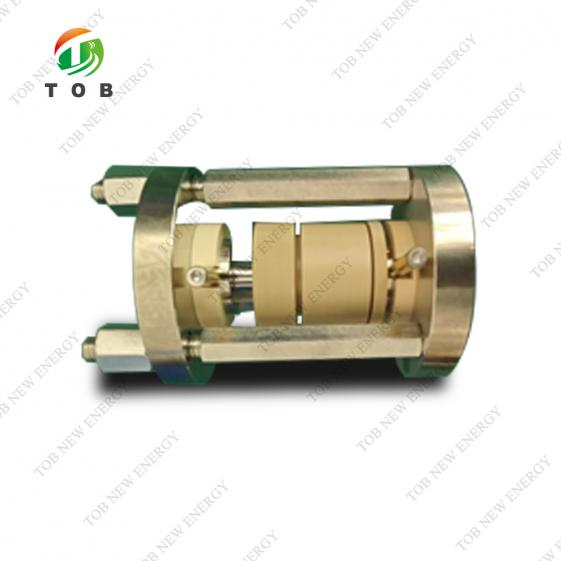

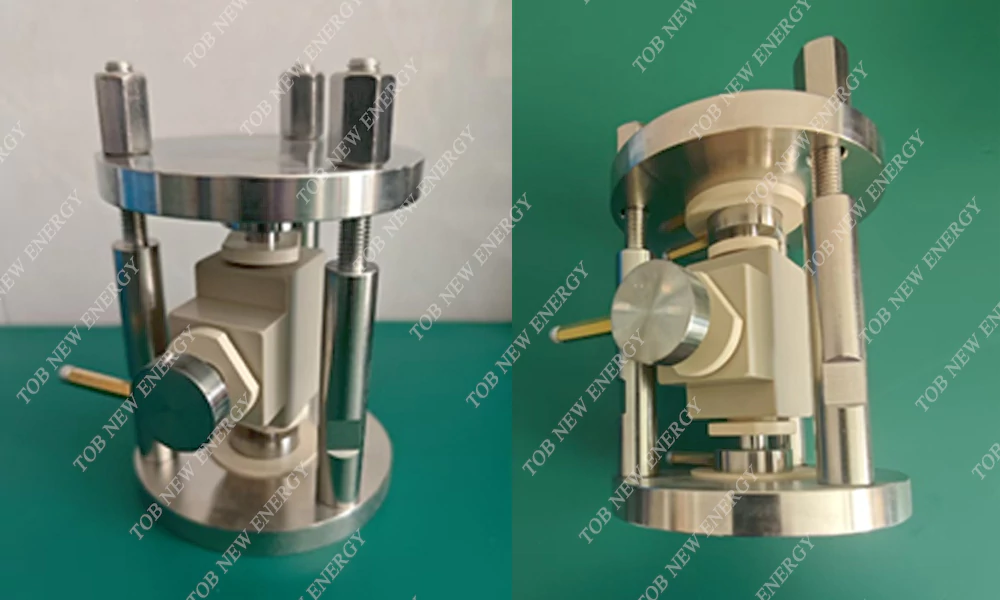

Ⅳ. TOB-YCGT-10-3 Three-electrode Solid State Battery Split Cell Test Kit

(1) Inner diameter: 10 mm.

(2) Fixture outer diameter: 90 mm. Height from base to the top of the three-column assembly: 133 mm.

Three-electrode Solid State Battery Split Cell Test Kit


 Email : tob.amy@tobmachine.com

 Skype : amywangbest86

 Whatsapp/Phone number : +86 181 2071 5609
