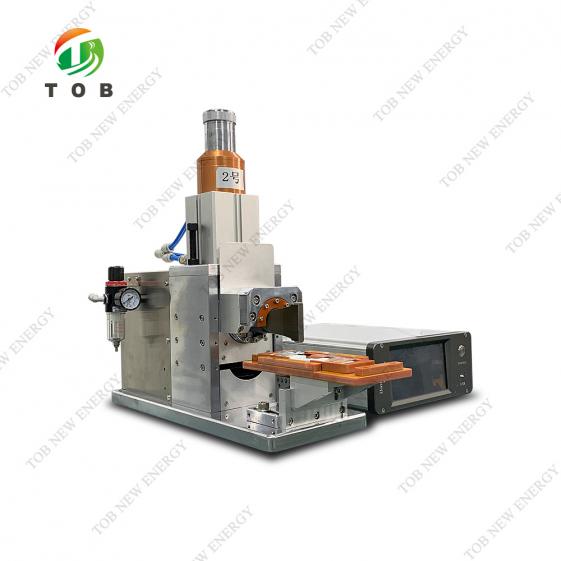

Ultrasonic Metal Welding Machine for Prismatic Cell

This TOB-USW-4000W/6000W ultrasonic metal welding machine is suitable for prismatic cell battery tab pre-welding, battery tab and connector welding, battery tab and lid welding.

Brand:
TOB NEW ENERGY
item no.:
TOB-USW-4000W/6000W
order(moq):
1
Payment:
L/C, T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

Ultrasonic Metal Welding Machine for Prismatic Cell

SPECIFICATIONS

This TOB-USW-4000W/6000W ultrasonic metal welding machine is suitable for prismatic cell battery tab pre-welding, battery tab and connector welding, battery tab and lid welding.

Product Features

1.Automatic frequency tracking and intelligent amplitude segmentation

2.Multiple control modes such as time, energy, time+energy, etc

3.Frequency, amplitude, power, energy, time+energy upper and lower limit alarm prompt

4.Standard communication protocol for reading welding data

5.Parameter setting password protection

Product model	Ultrasound frequency	Ultrasound power	Use volage	Application
TOB-USW-4000W	20KHz	4000W	220V,50/60Hz	Pre-welding 10-80 layers, welding area within 200mm2; Final welding, PACK aluminum to nickel, welding surface 50mm2 internal welding, etc.
TOB-USW-6000W	20KHz	5000-6000W	220V,50/60Hz	The final welding is within 60 layers, and the welding area is 80mm2

Product characteristics

Real-time automatic tracking of ultrasonic frequency, constant amplitude compensation	Frequency, amplitude, power, energy, time energy upper and lower limits of alarm
Time, energy, time energy and other control modes	The mechanical structure of the machine head adopts the German X-rail structure, which has extremely high precision
Parameter to set password protection	The unique ultrasonic welding unit design maximizes the conversion of ultrasonic energy to the welded product
Standard communication protocol reads welding machine data

Product Display

Ultrasonic Metal Welding Machine

Battery Tab Pre-welding

Battery Tab and Connector Welding

Battery Tab and Lid Welding
