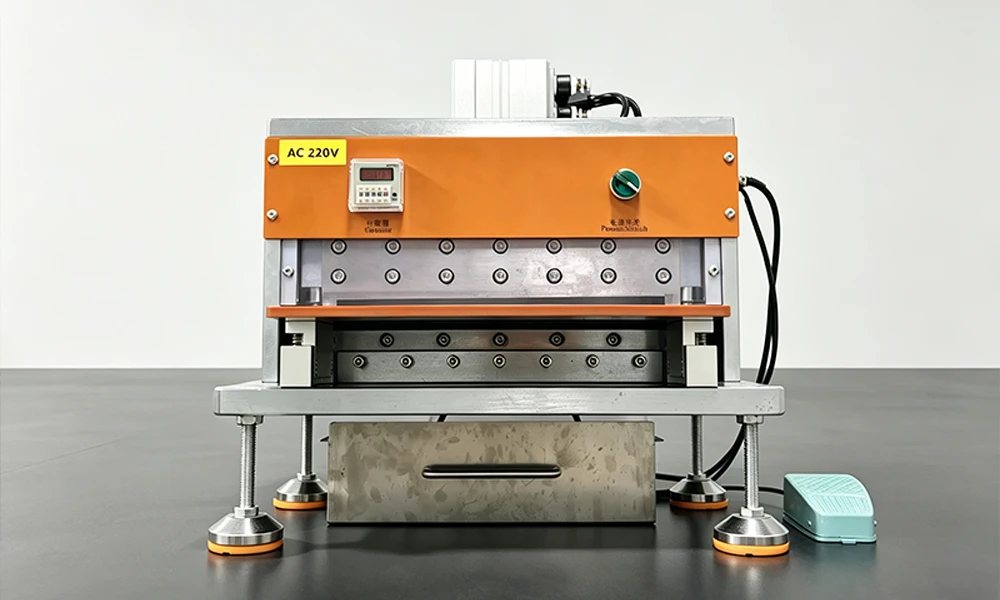

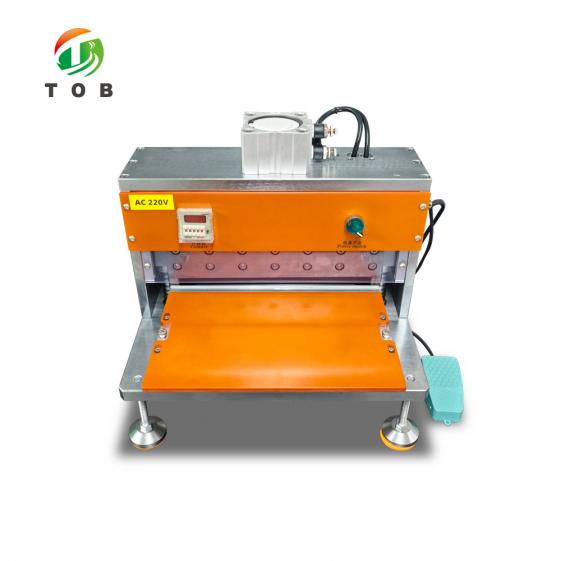

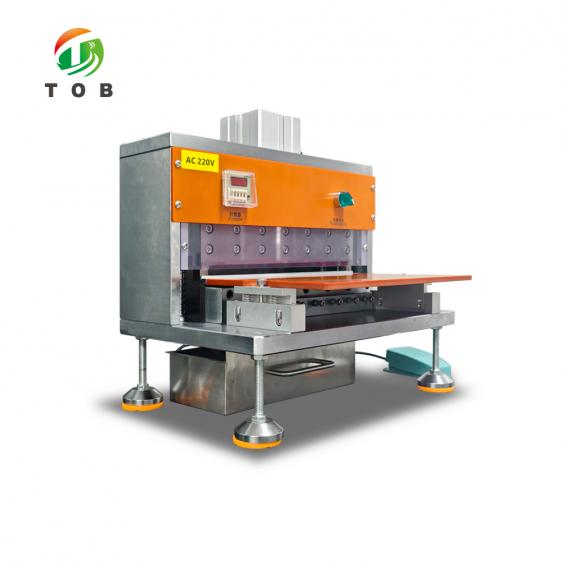

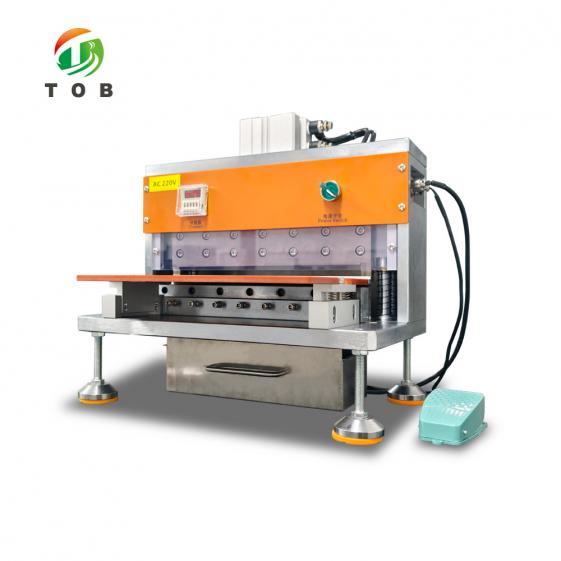

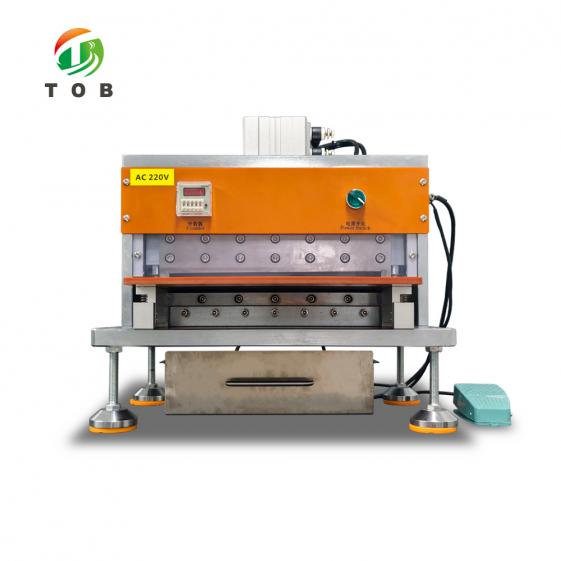

Pouch Cell Edge Cutting Machine

Pouch Cell Edge Cutting Machine

Product Overview and Ideal Applications

The TOB-P-QB30 is a manual edge cutting machine for lithium polymer batteries. Its main application is pouch edge trimming before edge folding: the pouch edge is trimmed to a controlled margin before the folding step, so the edge presented to the folding process is clean and at the set width.

The same machine can also be used for aluminum laminated film pouch trimming after the pouch forming process. This covers the earlier trimming position of pouch cell work, where the formed aluminum laminated film pouch is trimmed before it continues along the assembly flow - so the machine serves two trimming points in pouch cell processing: trimming after pouch forming, and trimming before edge folding.

The TOB-P-QB system manual cutting machine has an adjustable cutting width for 2-8 mm, with cutting length 200 mm, 300 mm, or customized requirement. It is mainly used for lithium polymer battery research and production line. In the TOB-P-QB30 configuration, the edge cutting length is 300 mm and the margin width is 2.5-8 mm.

The utility supply is standard for a laboratory or a production floor: the machine runs on AC 110 V / 220 V, 50/60 Hz with a power of 500 W, and it requires an air supply of 0.6-0.8 MPa. The machine weighs 40 kg, and it is supplied with a one-year limited warranty with lifetime support.

Ideal for:

• Pouch cell production lines and battery research laboratories that trim the pouch edge before edge folding.
• Pouch forming processes that require aluminum laminated film pouch trimming after the pouch is formed.
• Cell formats that require an adjustable cutting width - 2.5-8 mm margin width on the TOB-P-QB30 - with a 300 mm edge cutting length.
• Trimming tasks where the cutting length is specified as 200 mm, 300 mm, or a customized requirement.
• Workshops and laboratories that provide AC 110 V / 220 V power and a compressed air supply of 0.6-0.8 MPa.

Need to confirm whether the adjustable margin width and cutting length match your pouch format? Contact our battery equipment engineers with your pouch dimensions and the trimming step in your process.

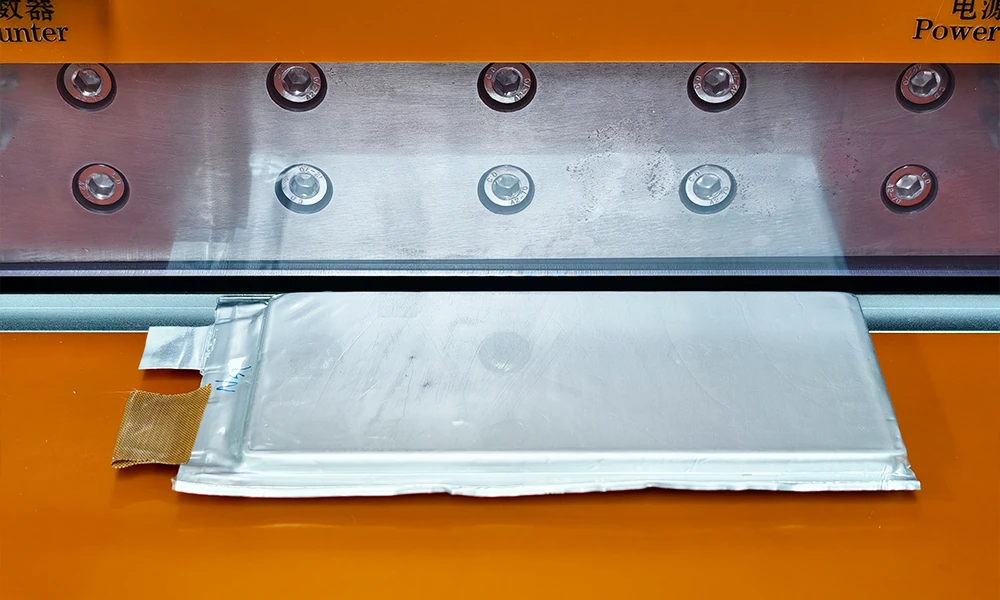

Where Edge Cutting Fits in the Pouch Cell Assembly Flow

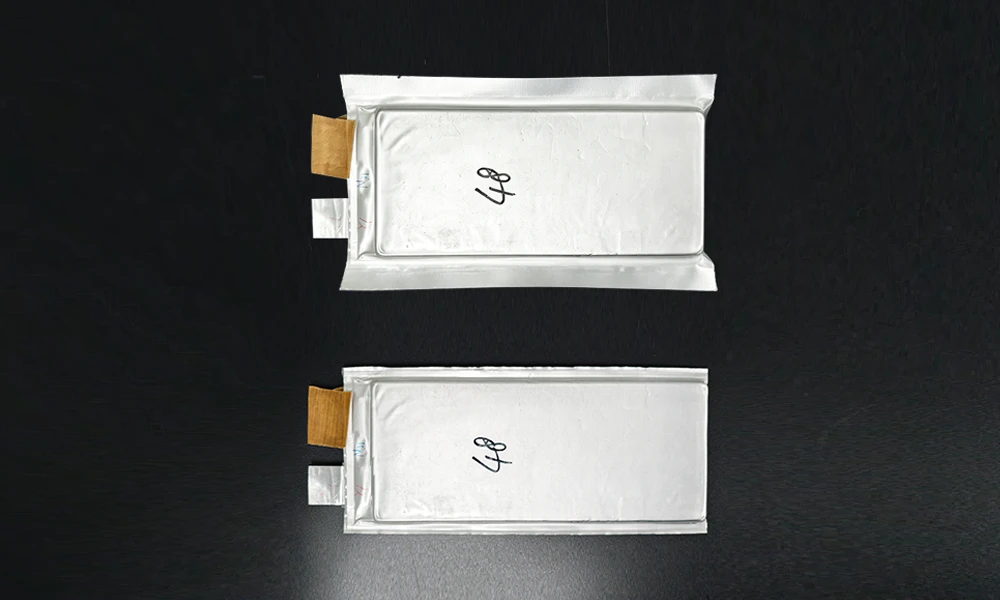

In pouch cell assembly, the aluminum laminated film is formed into the cell case, and the pouch edges then pass through trimming (edge cutting), folding, and ironing (hotting) steps that give the finished cell a clean appearance and reduce the risk of damage from the sharp cut edge. Edge cutting sits directly before edge folding: the material that protrudes beyond the final fold is removed to a controlled margin, so that when the edge is folded and pressed, the fold runs on a consistent edge width.

The TOB-P-QB30 serves the trimming positions of this flow in two ways:

1. Pouch edge trimming before edge folding - the main application, in lithium polymer battery research and production.
2. Aluminum laminated film pouch trimming after the pouch forming process - trimming the formed pouch before it continues along the assembly flow.

Because the machine is a manual cutting machine, the operator presents each pouch and controls the cut of the edge to the set margin width. The adjustable cutting width lets one machine cover a range of pouch formats, and the 300 mm edge cutting length of the TOB-P-QB30 - with 200 mm, 300 mm, or customized lengths available in the series - covers common pouch edge dimensions.

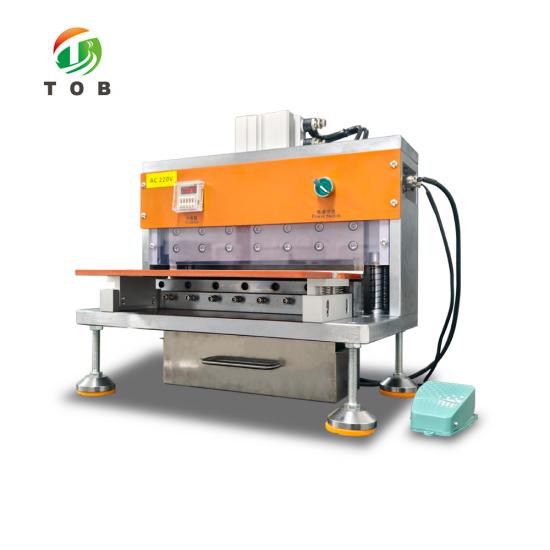

How the TOB-P-QB30 Works

The TOB-P-QB30 is a manual cutting machine of the TOB-P-QB system: the trimming operation is carried out by the operator, who presents each pouch to the machine and cuts the edge to the set margin width. The working sequence is:

1. Set the cutting width (margin width) within the adjustable range for the pouch format being processed. The TOB-P-QB30 specification table lists a margin width of 2.5-8 mm, and the TOB-P-QB system description states an adjustable cutting width for 2-8 mm; both figures are reproduced from the product specification.
2. Present the pouch - the pouch edge before edge folding, or the formed aluminum laminated film pouch, depending on the process point - and trim the edge along the cutting length. The TOB-P-QB30 edge cutting length is 300 mm; the series also provides 200 mm, 300 mm, or customized cutting lengths.
3. Connect the machine to the required supplies: an air supply of 0.6-0.8 MPa, and an electrical supply of AC 110 V / 220 V, 50/60 Hz (power 500 W).

The machine is mainly used for lithium polymer battery research and production line, so the same unit can support laboratory work, pilot builds, and line-side trimming. Where the exact cutting width or cutting length for a specific pouch has to be fixed, our engineers can confirm the value against the specification table and the series description before ordering.

Key Engineering Characteristics of the TOB-P-QB30

1. Edge Trimming Directly Before Edge Folding: The machine's main application is pouch edge trimming before edge folding. Trimming at this point removes the excess pouch material to the set margin, so the downstream folding step works on a clean edge at a controlled width.
2. Serves Two Points of the Pouch Flow: Besides pre-folding edge trimming, the machine can be used for aluminum laminated film pouch trimming after the pouch forming process - one machine covers two trimming positions in pouch cell work.
3. Adjustable Cutting Width (Margin Width 2.5-8 mm on the TOB-P-QB30): The cutting width is adjustable, so a range of pouch formats can be trimmed on the same machine. The TOB-P-QB30 specification table lists a margin width of 2.5-8 mm, while the TOB-P-QB system description states an adjustable cutting width for 2-8 mm.
4. 300 mm Edge Cutting Length: The TOB-P-QB30 trims edges up to a 300 mm cutting length; the TOB-P-QB series also offers cutting lengths of 200 mm, 300 mm, or a customized requirement.
5. Manual Cutting Machine for Research and Production: The machine is a manual cutting machine, mainly used for lithium polymer battery research and production line - suited to laboratory work, pilot builds, and line-side trimming with the operator controlling each cut.
6. Wide-Voltage Supply: The voltage supply is AC 110 V / 220 V, 50/60 Hz with a power of 500 W, so the machine can be used on different mains standards in laboratories and factories.
7. Standard Plant-Air Requirement (0.6-0.8 MPa): The machine requires an air supply of 0.6-0.8 MPa, within the range of common laboratory and production compressed-air systems.
8. Compact Format with Lifetime Support: The machine weighs 40 kg, and it is supplied with a one-year limited warranty with lifetime support.

Complete Technical Specifications

1. Application

1. Battery edge cutting machine is mainly used for lithium polymer battery pouch edge trimming before edge folding.
2. It can also be used for aluminum laminated film pouch trimming after pouch forming process.
3. The TOB-P-QB system manual cutting machine has an adjustable cutting width for 2-8 mm, with cutting length 200 mm, 300 mm, or customized requirement. It is mainly used for lithium polymer battery research and production line.

2. Model and Technical Parameters

Note: The TOB-P-QB system description states an adjustable cutting width for 2-8 mm, with cutting length 200 mm, 300 mm, or customized requirement, while the TOB-P-QB30 specification table lists the edge cutting length as 300 mm and the margin width as 2.5-8 mm. Both statements are reproduced as provided in the product specification; please confirm the exact range and cutting length for your pouch format with our engineers.

Practical Notes for Setup and Use

• Air supply: prepare a compressed air supply of 0.6-0.8 MPa before commissioning the machine.
• Power: the machine operates on AC 110 V / 220 V, 50/60 Hz with a power of 500 W; confirm that the mains voltage at the installation site matches the configured supply.
• Width setting: set the cutting width within the adjustable range for the pouch being trimmed, and verify the margin on a sample before running a batch.
• Process point: plan the trimming at the position required by the process - before edge folding, or after pouch forming for aluminum laminated film trimming.
• Support: the machine is supplied with a one-year limited warranty with lifetime support; keep the delivery documentation for service reference.

Engineering FAQ

Q1: What is the TOB-P-QB30 used for?

The battery edge cutting machine is mainly used for lithium polymer battery pouch edge trimming before edge folding. It can also be used for aluminum laminated film pouch trimming after pouch forming process.

Q2: At which points of the pouch cell flow can the machine be used?

Two points: pouch edge trimming before edge folding (the main application, in lithium polymer battery research and production), and aluminum laminated film pouch trimming after the pouch forming process.

Q3: What cutting width and cutting length does the machine support?

The TOB-P-QB30 specification table lists a margin width of 2.5-8 mm and an edge cutting length of 300 mm. The TOB-P-QB system description states an adjustable cutting width for 2-8 mm, with cutting length 200 mm, 300 mm, or customized requirement. Both figures are reproduced from the product specification; please confirm the value required for your pouch format with our engineers.

Q4: Is the machine manual or automatic?

The machine is a manual cutting machine of the TOB-P-QB system, mainly used for lithium polymer battery research and production line. The operator presents each pouch and controls the cut to the set margin width.

Q5: What are the utility requirements?

The voltage supply is AC 110 V / 220 V, 50/60 Hz; the power is 500 W; the air supply is 0.6-0.8 MPa.

Q6: Can the cutting length be customized?

Yes. The TOB-P-QB series description lists cutting lengths of 200 mm, 300 mm, or customized requirement; the TOB-P-QB30 has an edge cutting length of 300 mm.

Q7: Does the machine come with a warranty?

Yes - one year limited warranty with lifetime support.

Q8: Where does edge cutting sit relative to edge folding and edge hotting?

Edge cutting (pouch edge trimming) is carried out before edge folding; edge folding and edge hotting (edge ironing press after pouch folding) are the subsequent steps in pouch edge processing, giving the cell a good appearance and helping avoid damage by the sharp edge.

Ready to add pouch edge cutting to your pouch cell line or laboratory workflow? Request a quotation for the TOB-P-QB30 with your pouch format and required margin width, and confirm the cutting length for your cell (200 mm, 300 mm, or a customized requirement). Our battery equipment engineers can advise on the trimming position in your process and the machine configuration for your application.
