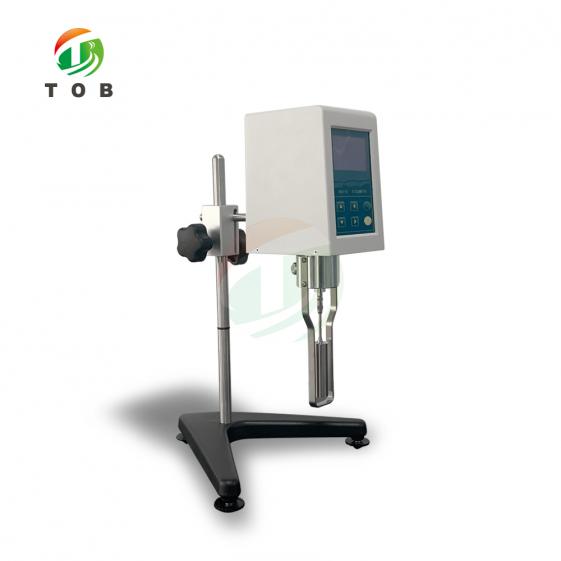

1-10^5 mPa·s Digital Display Viscometer For Battery Slurry

This edge hotting machine is used for lithium pouch cell/Lithium polymer cell Edge hot shaping after edge folding.

SSR series digital rotary viscometer adopts coaxial cylinder structure.using a small sample adapter,the amount of sample required for each measurement is very small, only 7ml -13ml (21ml for No. 0 rotor),optional thermostatic water jacket with circulation can be used in conjunction with the thermostatic bath to control the temperature of the measured sample.the operation is very convenient and the measured value is accurate.very suitable for the measurement of precious and rare samples.

Fineness board is used to measure the fineness of dispersed products during production, storage and application, such as: battery paste, paint, plastic, pigment, printing ink, paper, ceramics, medicine, food, etc

TOB-DV2TLV touch screen viscometer features a 5-inch color touch screen display that guides the user through the process of test creation and data gathering, making viscosity measurements fast and easy. With powerful programming capabilities and advanced data analysis features, the DV2T is ideal for laboratories requiring precision, versatility, and ease of use.

This TOB-DV-LV micro-rotational viscometer adopts advanced mechanical design technology, manufacturing process and microcomputer control technology, with accurate data acquisition, high-resolution TFT display, clear data display and more comprehensive functions. This instrument has the characteristics of high measurement sensitivity, reliable test results, easy operation and beautiful appearance.

Lithium ion battery separator.

Automatic Electrolyte Battery Filling Using Conveyor System For Polymer Battery Filling System SPECIFICATIONS This Automatic Battery Filling System is automatic polymer battery filling machine, it includes Bar code scanning, weigh before filling, automatic injection electrolyte, automatic vacuum holding, automatic vacuum sealing, weigh after filling, automatic discharging, etc. Automatic battery filling system work process Model Automatic Battery Filling System TOB-AFMY-200 Source voltage AC220V, Single phase. Customized according country request Power 10KW Warranty  One year limited warranty with lifetime support Compressed air 0.6MPa  Output 6ppm, according to vacuum holding and sealing time Vacuum flow 350M3/hour Suitable battery size Length 130-285mm, Width 100-170mm, Thickness 8-11mm  Structure configuration  Trough body 3SET Battery rotating mechanism 1SET Automatic feeding mechanism 1SET Weight before filling 1SET Into the jig transfer institution 1SET Pour institutions without electric pump 1SET Vacuum holding box 3SET Vacuum pre-sealing 1SET Discharge transfer institution 1SET Weight after filling 1SET Automatic discharging device 1SET Automatic receiving institutions 2SET With PLC, Touch screen,    Driving motor 2SET Project control system 1SET CAM drive motor 2SET Vacuum holding box 1-99s can be set, with -95kpa vacuum degree Vacuum pre-sealing machine Sealing stamp width : 8mm Sealing head length : 300mm Sealing TEM : Max 260℃, adjustable Sealing Head parallelism : ±0.02mm Vacuum degree : -90KPa Dimension (L*W*H) 8000*1500*2400mm Weight 4000kg  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

Battery internal short-circuit integrated testing machine For lithium battery safety performance testing SPECIFICATIONS 1.Temperature control box technical specifications Temperature range 0℃~+100℃ Analytical precision 0.01℃ Temperature fluctuation ±0.5℃ Temperature uniformity ±2.0℃ Temperature rising rate Average 3℃/min（from 0℃ to 100℃、Nonlinear load） Temperature falling rate Average 1℃/min（from 1000℃ to 0℃、Nonlinear load） Within the box size W600*H750*D500MM Within the box material Mirror stainless steel plate,the bottom reinforcement Carton size W1500*H1750*D1000MM Carton Material Stainless steel or cold rolled steel paint treatment 2.Shield prick test specifications Max load 200kg Force value resolution 1/10000 Force accuracy ≤0.5% Force value magnification 1/1000 Displacement resolution 7-speed automatic switch Displacement accuracy ≤0.5% Shield thorn 10*10MM Speed Range 0.01~20MM/S Effective stroke 150MM（Without holder） Test largest plane 300*300MM(Customized) 3.Voltage data collection Voltage data collection range 0~20V，Acquisition frequency 100HZ/S Voltage resolution 1MV Stop voltage range can be set 0~20V  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
