Touch Screen Viscometer

SPECIFICATIONS

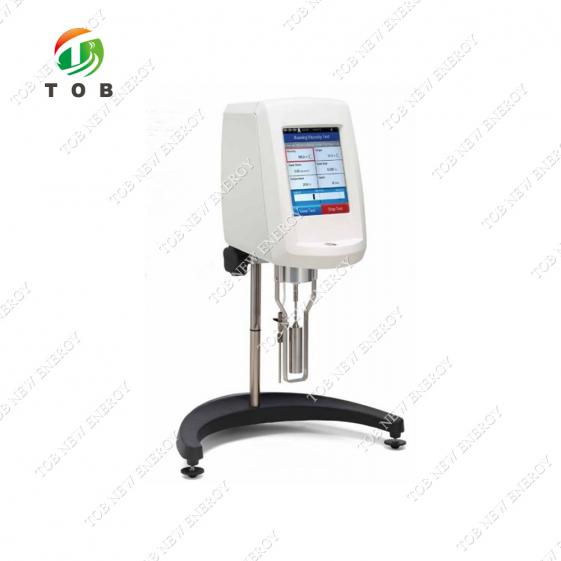

TOB-DV2TLV touch screen viscometer features a 5-inch color touch screen display that guides the user through the process of test creation and data gathering, making viscosity measurements fast and easy. With powerful programming capabilities and advanced data analysis features, the DV2T is ideal for laboratories requiring precision, versatility, and ease of use.

5-inch full color touch screen display

- New user interface

- Enhanced control

- Real time trend display

- Multi language support

Display information:

- Viscosity (cP or mPa • S)

- Temperature (° C or ° F)

- Shear rate/shear force

- %Torque

- Speed / rotor

- Program step status

Enhanced Security Control

- Customize user usage permissions

- Test date and time record file

- Password locking function

- Convenient login settings

Built-in options

- Timing measurement

- Data average

- Programmable QC upper and lower limits/alarms

- User defined speed/rotor list

- Based on user instruction testing

- Data comparison screen display

Automatic range display

- Maximum measured viscosity at current rotor and speed combination

USB PC interface

Provide optional computer control and automatic data collection functions

Accuracy: ± 1.0% of measurement range

- Display the same as the test data

Repeatability: ±0.2%

- Built-in RTD temperature probe

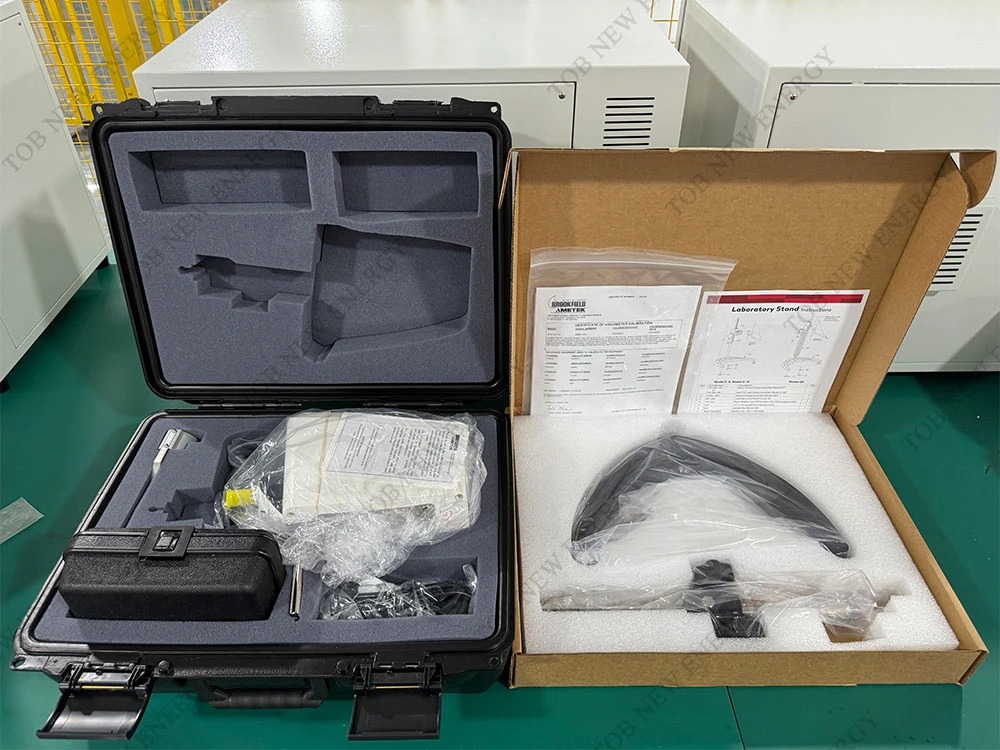

Instrument composition

- Instrument host

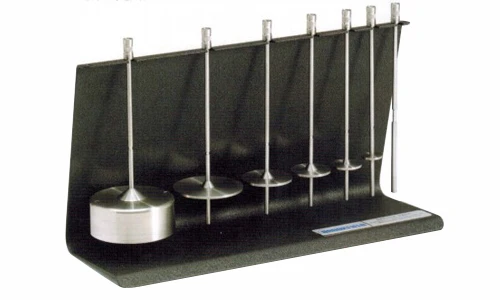

- One set of 6 rotors (RV/HA/HB) (p45) or one set of 4 rotors (LV) (p45)

- RTD temperature probe

- Rotor protection leg *

- Instrument Support (Model G) (p50)

- Portable packaging box

Optional Accessories

- Label printer (P51)

- Paddle rotor (p43&48)

- Ball bearing suspension system (RV/HAJHB) (p50) viscosity standard solution (p52)

- Viscosity standard solution (p52)

- RV/HAJHB-1 rotor (p45)

- EZ Lock rotor quick connect system (p50)

- Quick positioning bracket (p50)

- Constant temperature water bath (p33-35)

- Small sample adapter SSA (p38)

- Ultra low viscosity adapter (p40)

- Thermosel heater (p36)

- Helipath lifting bracket for T-shaped rotor (p42)

- Spiral adapter (p44)

- DIN adapter (p44)

- Quick Coupler/Extension Hook (p49)

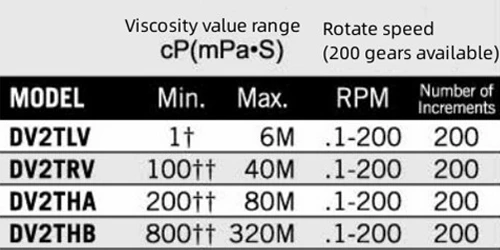

The ULA measurement value can reach 1cP using an ultra-low viscosity adapter. The use of LV standard rotors can measure a minimum of 15cP.

The lowest measurement value can be achieved using the optional RV/HA/HB-1 rotor

M=1 million cP=Centipoise mPa • S=Millipascal • seconds

Note:

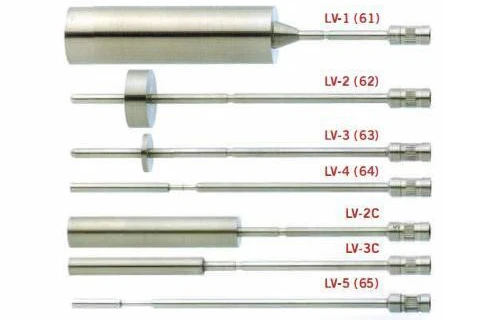

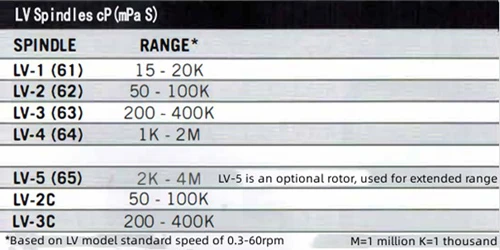

- LV-1 to LV-4 are standard rotors for LV models

- LV-2C&LV-3C are optional cylindrical rotors that can calculate shear rates

- The standard rotor for LV and RV/HA/HB models is made of 302 stainless steel material

- Optional 316 stainless steel material or rotor with teflon coating

Note:

- The standard rotor for RV/HA/HB models is made of 302 stainless steel material

- Optional 316 stainless steel material or rotor with teflon coating

- *This rotor is an optional accessory

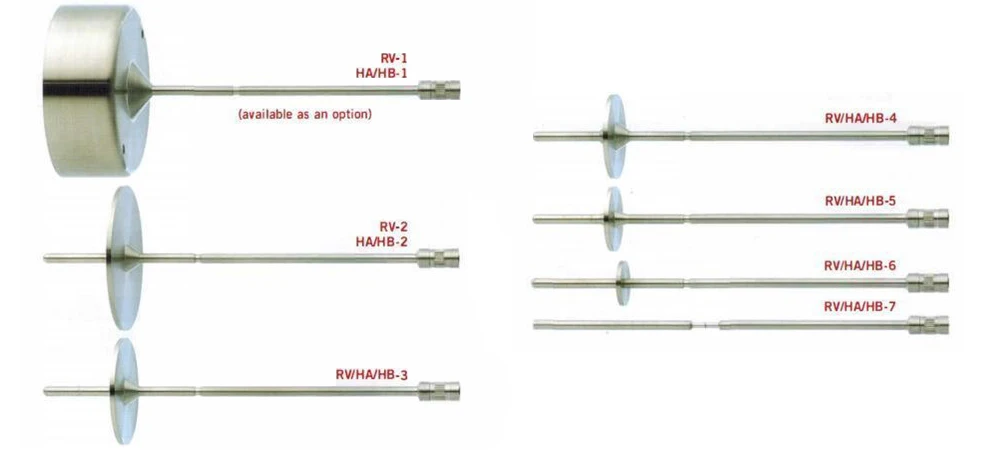

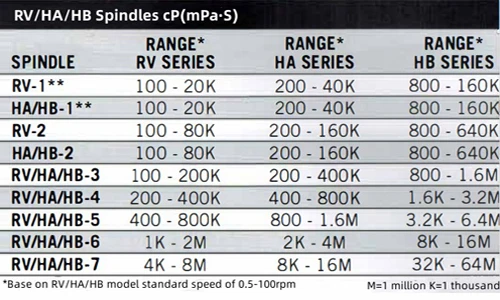

RV/HA/HB models of standard Brookfield viscometer and Rheometer:

- The standard rotors include # 2- # 7, with a total of 6 rotors.

- #1 rotor is an optional accessory.

- The spindle bracket is an optional accessory for all models (LV&RV/HA/HB).

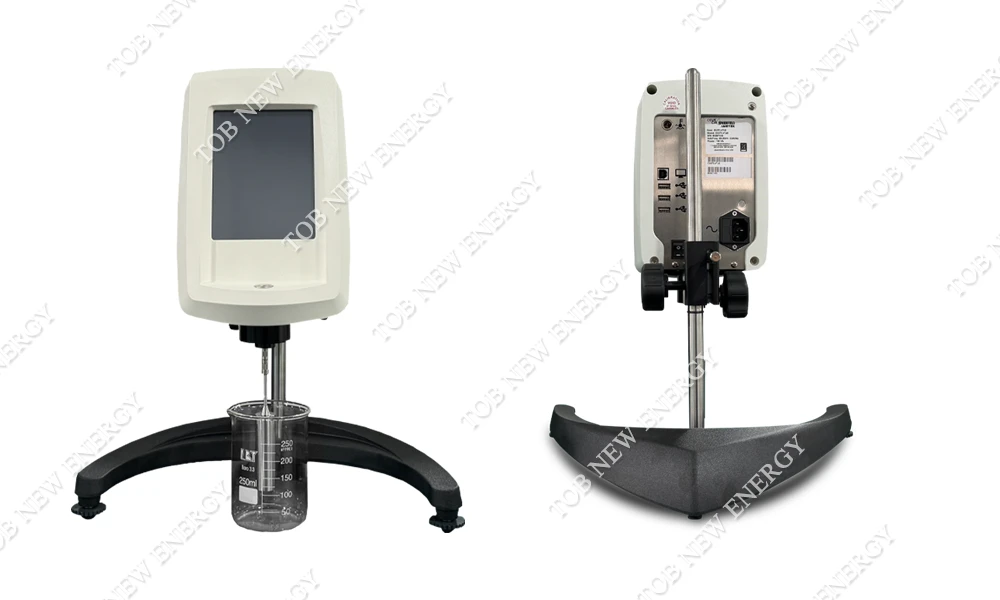

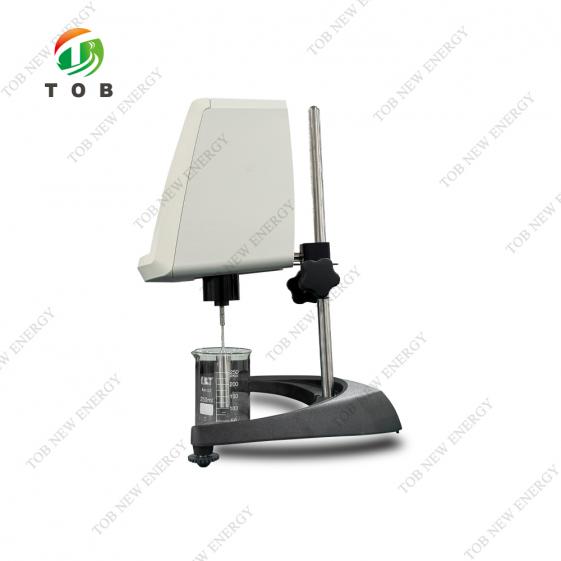

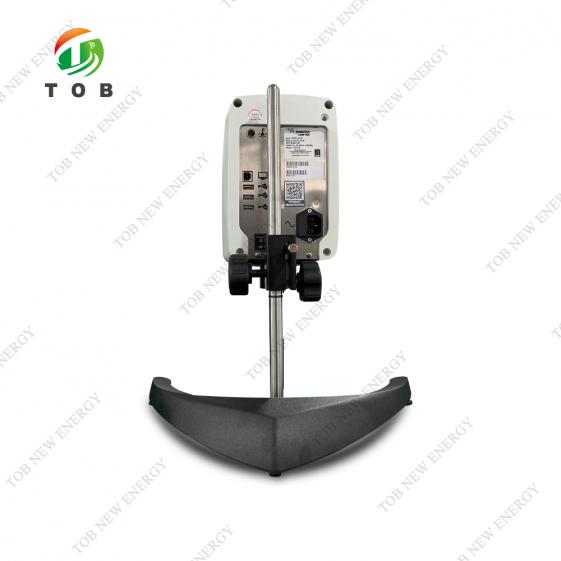

PRODUCT DISPLAY
