Digital Display Viscometer
加载中...

Laboratory Digital Display Viscometer 10-200000cp

This edge hotting machine is used for lithium pouch cell/Lithium polymer cell Edge hot shaping after edge folding.
  • item no.:

    TOB-SNB-1A
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7days
Product Detail

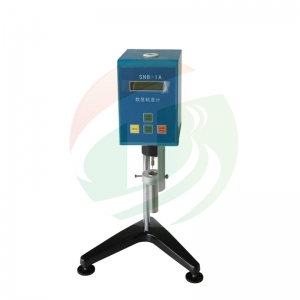

Laboratory Digital Viscometer 10-200000cp Viscosity Testing Equipment


SPECIFICATIONS



The SNB-1ADigital display viscometeris widely used in solvent based adhesive, latex, biochemical products, cosmetics, paint, paint, ink, paper pulp, food, starch and other industries.

Thisviscometerhas testing range of 10-200000cp, with small quantity sample of18-20ml, it testing result can directly displayed on the digital screen without any calculating. English digital display is easy understand, it is with RS232 interface, can be connect with computer for date output.


Model

Digital display viscometer TOB-SNB-1A

Measuring range

10-200000cp

Sample quantity

20 ml

Measuring accuracy

(Newtonian liquid)

±1%

Standard rotor specification

21#/27#/28#/29# rotors

 Rotation rate (RPM/min)

0.5/1/2/5/10/20/50

Dimension

300*300*450mm

Net weight

2kg  (not including pedestal)

Package weight

7.4kg

Package size

480*250*400mm

Working temperature

5-35℃

Working humidity

≤80%

Source voltage

AC 100-230V  45-65HZ


STANDARD PACKAGE LIST

Item

Qty

Digital display viscometer

1 set

Power line (according to your requirements )

1 pcs

Standard rotor 21#/27#/28#/29#

Total 4 pcs

Operating manual (English)

1 book


PRODUCT DISPLAY



viscosity tester

Vicsosity testing machine

Lab viscometer

viscosity testing equipment
