battery machine and materials solution
Products

Hot Products


Pouch Forming Machine
加载中...

200*200*6mm Pouch Forming Machine

TOB-CXJ200 Pouch Forming Machine is used for lithium polymer battery/ pouch cell cup forming in the laboratory and production line of making pouch cell batteries.
  • item no.:

    TOB-CXJ200
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7days
Product Detail
200*200*6mm Pouch Forming Machine For Lithium Battery Aluminum-Laminated Films


SPECIFICATIONS



1 TOB-CXJ200 Pouch Forming Machine is used for lithium polymer battery/ pouch cell cup forming in the laboratory and production line of making pouch cell batteries.

2 The machine is used to prepare polymer cases made ofAluminum Laminated Films.

3 This labaluminum laminated film pouch forming machineis designed with Safety grating protection device, If with operators across the scope of securityemergency stop automatically.


Model

200*200*6mm Pouch Forming Machine.  TOB-CXJ200

Source voltage

AC 220V/110V, 50/60HZ

Power

100W

Warranty

One year limited warranty with lifetime support

Advantages

1 This punching forming machine adopts imported pneumatic,

electrical components, control cylinder pressure stamping forming mold.

2 Mold using high quality die steel materials, stretching out the product contour artistic,

rounded and smooth.

3 Work station is equipped with Safety grating protection device,

If with operators across the scope of security emergency stop automatically.

Suitable aluminum film

thickness

0.1-0.2mm

Suitable aluminum film

size

200*200mm(L*W), customized, with punching depth ≤6mm

Output

200-450EA/H

Output pressure

0-5T, Adjustable

Air source

0.5-0.7MPa

Mold materials

S136 Die steel

Dimension(L*W*H)

800*500*1850mm

Weight

About 220kg


PRODUCT DISPLAY

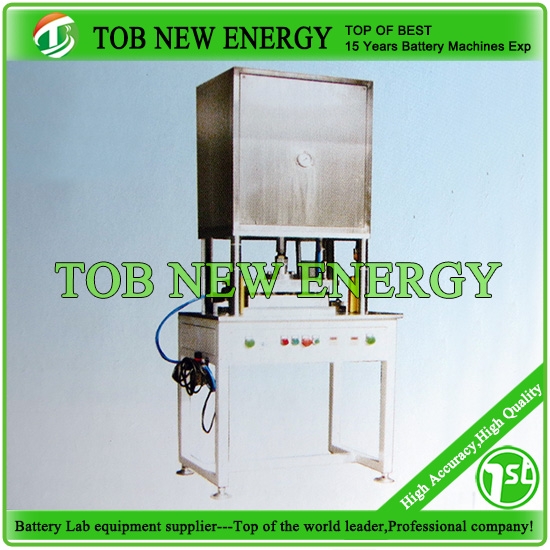

 200*200*6mm Pouch Forming Machine


PACKAGE AND SHIPPING

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.

5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.


SERVICES

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.




 Email : tob.amy@tobmachine.com

 Skype : amywangbest86

 Whatsapp/Phone number : +86 181 2071 5609

Send a Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
