Lab Polymer Battery Pouch Forming Machine

TOB-SCK200 Battery Pouch Forming Machine is used for lithium polymer battery/ pouch cell cup forming in the production line of making pouch cell batteries.
  • item no.:

    TOB-SCK-200
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7days
Product Detail
Polymer Battery Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films



SPECIFICATIONS



1 TOB-SCK-200 Battery Pouch Forming Machine is used for lithium polymer battery/ pouch cell cup forming in the production line of making pouch cell batteries.

2 The machine is used to prepare polymer cases made ofAluminum Laminated Films.

3 This labaluminum laminated film pouch forming machineis designed with simple Spring mold with a smaller size, which is more suitable for lab research. If we want to do producing or Pilot scale production line, We can choose the TOB-CK150 Model or other producing model.


Model

Lab Polymer Battery Pouch Forming Machine TOB-SCK-200

Source voltage

AC 220V/110V, 50/60HZ

Power

100W

Warranty

One year limited warranty with lifetime support

Advantages

1 Structure of guide pin, slide up and down smoothly with high precision

2 Change mould, adjust tensile depth simply, quickly

3 Use screen and casing protection, guarantee safety

4 High strength of chrome steel and aluminum alloy, surface roasts

the paint processing through environmental protection electroplating

Suitable aluminum film thickness

0.1-0.2mm

Suitable aluminum film size

160*120mm(L*W), customized, with punching depth ≤6mm

Max. Cup Depth to Punch

Single pit punching depth ≤6mm

Output

200-400EA/H

Output pressure

3T

Air source

0.5-0.7MPa

Mold materials

S136 Die steel

Dimension(L*W*H)

460*320*925mm

Weight

About 130kg


PRODUCT DISPLAY



 Lab Polymer Battery Pouch Forming Machine

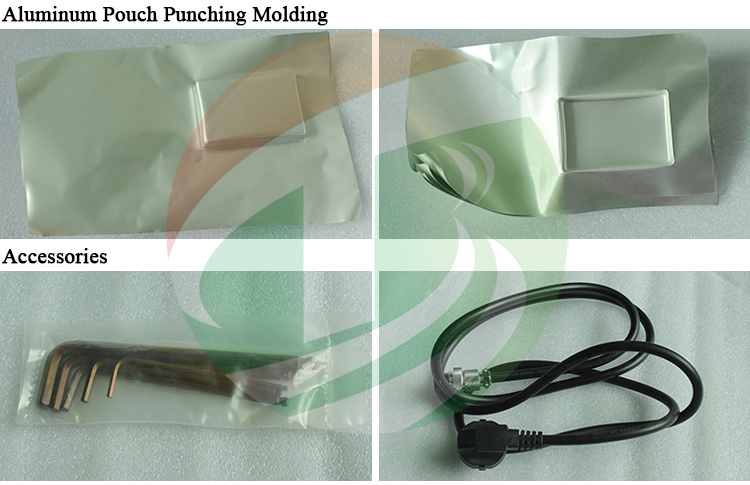

Mould and accessories

PACKAGE



 Lab Polymer Battery Pouch Forming Machine Package
