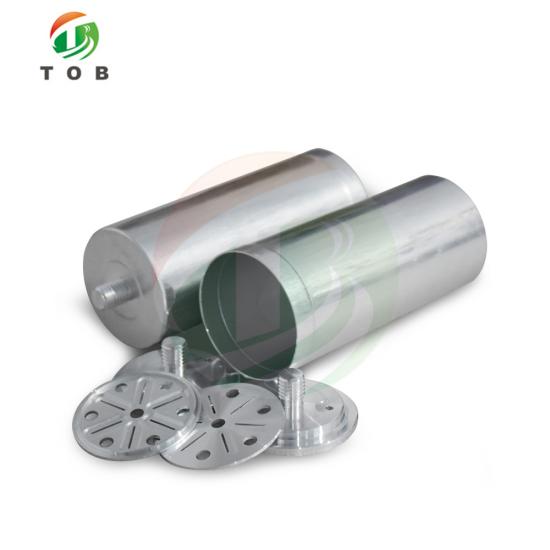

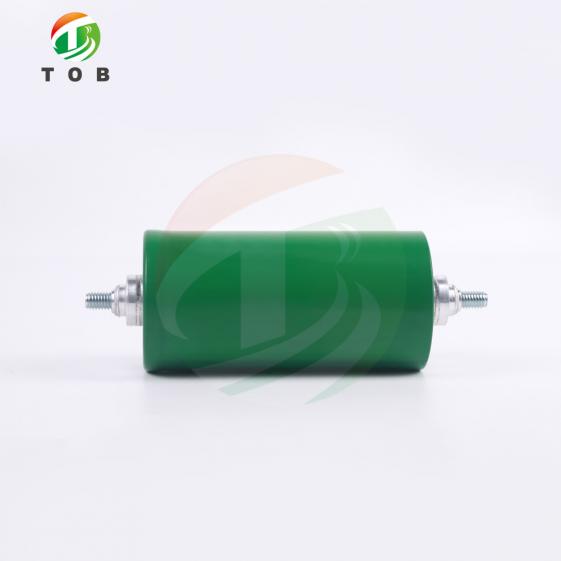

60138, 60130, 38130, 80180 Supercapacitor Production Line

TOB can supply a full set of battery and supercapacitor electrode preparation lab line.

TOB offers the most professional battery and supercapacitor pilot line equipment for battery research and manufacturing.

TOB offers the most professional battery and supercapacitor automatic equipment for battery research and manufacturing.

1100 Degree 7.2L Volume Laboratory Inert Gas Muffle Furnace SPECIFICATIONS The TOB-KBF11Qlaboratory inert gas muffle furnaceadopts Electric resistance wire as heating element with fast temperature rising. (up to 1000degrees within 30mins). 40 segments programmable temperature controllers are installed with 6 groups of PID adjustment. ThisAtmosphere muffle furnaceis the ideal laboratory equipment for universities, research institutes, industrial and mining enterprises to do atmosphere intering , Atmosphere reduction. Model Dimension (D*W*H) Power Voltage Max Heating Temperature TOB-KBF11Q-I 300*200*120mm 2.5kw AC110V/220V 1100℃ TOB-KBF11Q-II 300*200*200mm 4kw TOB-KBF11Q-III 300*250*250mm 5kw TOB-KBF11Q-IV 400*300*300mm 9kw 380V Heating element Electric resistance wire Temperature controller 40 program temperature control system, With over temperature, broken accidentally protection function, 6 groups of PID adjustment Control precision of + / - 1 ℃ Furnace chamber  Polycrystal alumina fiber Pressure measure system Pressure gauge  Air intake control Flow meter Air source H2, Ar, N2, O2, CO, Etc. Warranty One year limited warranty with lifetime support  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

99.99% graphite sheet for battery electrode.

150mm-580 working width, It is suitable for Lithium iron phosphate, Cobalt acid lithium, Manganese acid lithium, Lithium nickel manganese cobalt, such like the above continuous rolling technology of positive and negative battery electrode.

This TOB-JS400-4 single side slot die coating machineis used for precision coating of cathode and anode electrode of lithium-ion batteries. It mainly consists of unwinding part, machine head part, oven part, traction part, winding part, and electric control part. Evenly coat the stirred slurry onto the substrate, ensuring that the size, weight, etc. are within the process range. After drying treatment, roll it up and prepare for the subsequent process.

This Ultrasonic Torque Welding Machine is suitable for positive electrode welding of 4680 and 4695 cells. Adopting a number of patented combined equipment and torsional energy exchange system, it is a kind of active welding mold with torsion fabric integration of swellers.
