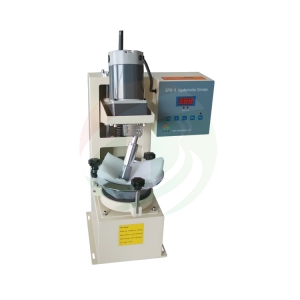

Automatic Desktop Grinder Machine

battery edge press

TOB-1100X-SPC-16M is a benchtop sputter coater for battery material R&D. Achieve uniform coatings, avoid separator damage, and get reliable SEM results. Application support included.

TOB-KS5-150C Mainly used for Single cell and electronic products,components high low temperature test,temperature change etc. Environment simulate reliability test.

This TOB-ECM production-scale coating machine features a two-level mechanical structure and enables continuous double-sided slot die coating of lithium battery electrodes. It is designed for high-throughput electrode manufacturing lines requiring stable coating quality, precise thickness control, and reliable drying performance.

Suitable for channeling of cylindrical cell and supercapacitor.

TOB-CT4008-5V6A-S1 Battery tester equipment is an eight-channel battery analyzer to analyze polymer battery and cylindrical batteries from 0.5mA to 6A, up to 5V

TOB-AF200S automatic rotating sample divider is mainly used for sampling loose materials, with a maximum sampling size of 12mm. High standards of accuracy are guaranteed for both fine and coarse particles.

1200℃ Mini tube furnace SPECIFICATIONS The tube furnace appearance is small, high quality resistance wire heating element, Using double-shell structure and 30 program temperature control instrumentation, Zero trigger, SCR control, furnace polycrystalline alumina fiber material, stainless steel flanges tube ends can be sealed, Installation on a stainless steel flange has a gas nozzle, valve and pressure gauge,  the vacuum can reach to 10-3 Pa,Balanced with the temperature field, the surface temperature is low,  lifting the temperature and rate, energy saving,Colleges and universities, research institutes,  industrial and mining enterprises to do high-temperature sintering atmosphere, reducing atmosphere,  CVD experiment, vacuum annealing with the ideal product. Model TOB-DSP-1200℃-S-I TOB-DSP-1200℃-S-II Power 1.5 KW 1.5 KW Furnace tube size(mm) Dia 25(OD) X700 /600mm Dia50(OD)X700/600mm Dimension 340X290X415 340X290X415 Power supply voltage 220V Phase number Single-phase Heating element High-resistance wire Control mode 1,30 sections of the program can only PID temperature regulation. 2,over-temperature protection, over-temperature protection  burnout or burnout furnace heating circuit automatically cut off ,  (when the furnace temperature exceeds 1200 degrees or thermocouple burns out,  the AC relay on the main circuit will automatically disconnect the main circuit off,  the panel lights off oN, OFF lights, limited protection EAF). 3, with 485 communication interface (when an optional software standard) 4, with power protection function, namely, electrical power and then to start the stove,  the program does not start from a starting temperature rise,  but began to rise from the furnace power outage. 5, the instrument with a temperature self-tuning features Temperature control mode Intelligent PID Control accuracy +/- 1 ℃ Trigger Zero trigger SCR 106 / 16E Germany Simon Kang Max temperature 1200 ℃ Rated temperature 1100 ℃ Heating rate ≤30 ℃/ Min (Available upon request modification) Heating length 205mm Recommended heating rate ≤15  ℃/ Min Vacuum degree (Optional) 1.General vacuum and drive gas out by:TW-1.5A 2.2XZ-2 Vacuum degree pumps can be able to get around 10Pa 3.TOB-DSP-VS 0.1vacuum system can pumped 0.1Pa  (and equipped with a resistive vacuum gauge display) Certification CE Surrounding surface temperature ≤45℃  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
