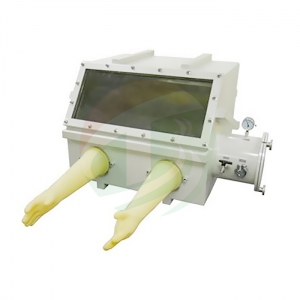

Benchtop Stainless Steel Vacuum Glove Box

TOB-STX-1 is a small size stainless steel glove box with Airlock Chamber, Gauges and vacuum Flanges, which allow glove box operate under vacuum to remove moisture and oxygen without expensive inert gas purging, It is an ideal tool for material and chemical researchers to process air sensitive materials and solutions.

  • Brand:

    TOB NEW ENERGY

  • item no.:

    TOB-STX-1

  • order(moq):

    1

  • Payment:

    L/C,T/T

  • product origin:

    China

  • shipping port:

    XIAMEN
inquiry now
Product Detail

Benchtop Stainless Steel Vacuum Glove Box For Lab 600*450*300mm


SPECIFICATIONS

TOB-STX-1 is a small size stainless steel glove box with Airlock Chamber, Gauges and vacuum Flanges, which allow glove box operate under vacuum to remove moisture and oxygen without expensive inert gas purging, It is an ideal tool for material and chemical researchers to process air sensitive materials and solutions.


Glove Box Chamber

1 Case Material: Made of 11 gauge (3mm thickness) 304 stainless steel sheet with sport frame, which provide heavy duty structure for vacuum

2 Dimensions: 555mm(L) x 444mm(W) x 414mm(H)

3 Max. Positive Pressure: 810 Torr (1.1 atm)

4 Note: Gloves cannot work if pressure is higher than 810 Torr

5 Max. Vacuum Level: 0.5 Torr

6 Note: Stainless Steel case may deform at higher vacuum level

7 Leakage Rate in GloveBox: < 6 Torr/hour

Air-lock Chamber

Dimensions: 200mm(ID) x 270mm(L)

Max. Vacuum Level: 0.05 Torr

Vacuum gauge and valves

1 Two vacuum flanges are included for glove box to achieve vacuum to remove moisture and oxygen without expensive inert gas purging

2 Do not operate under vacuum status. Vacuum process is used for purging the glove box chamber before operation.

3 One KF-25 connector is installed in the back for connecting humidity monitor or other testing equipment

Gloves

One pair of Latex Gloves are included for immediate use

Glove hole diameter : 139mm (2 pcs)

Product Dimensions

1186mm(L) x 480mm(W) x 490mm(H)


PRODUCT DISPLAY

lab glove box
 lab glove box
Vacuum Glove Box

Vacuum Glove Box

PACKING

lab glove box
