Fully transparent plexiglass glove box

This product is widely used in biochemistry, metallurgy, electronics, chemical, geological, mineral,pharmaceutical and other sectors. Electronic materials, magnetic materials, equipment, batteries biological cultivation, food vacuum packaging, battery materials and so on.

  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-012C
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

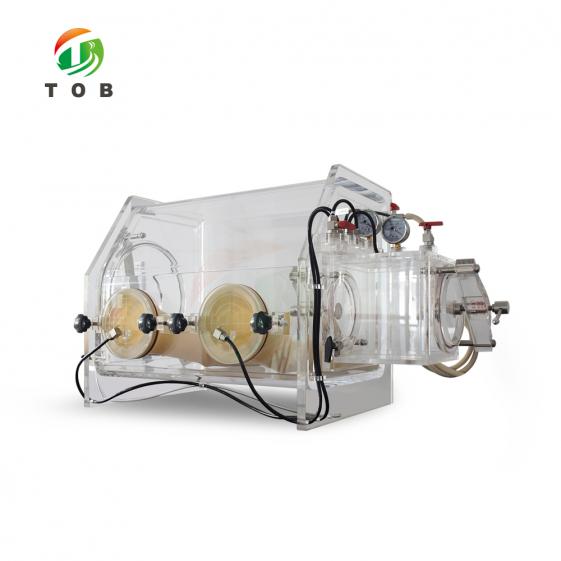

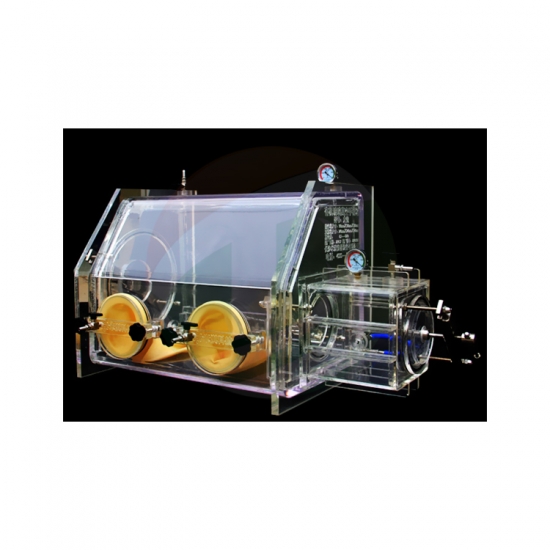

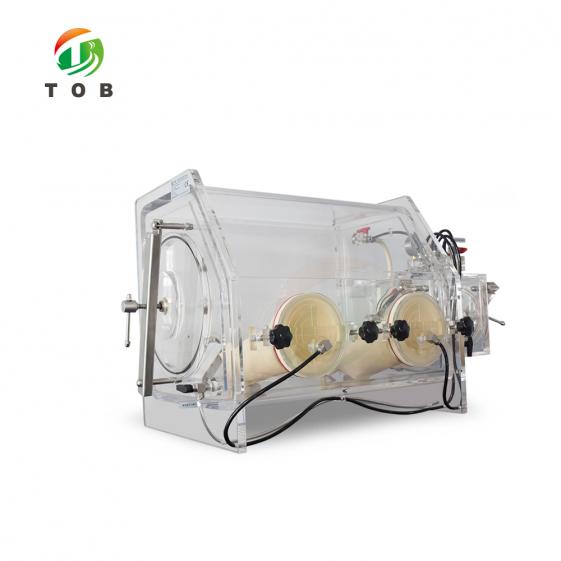

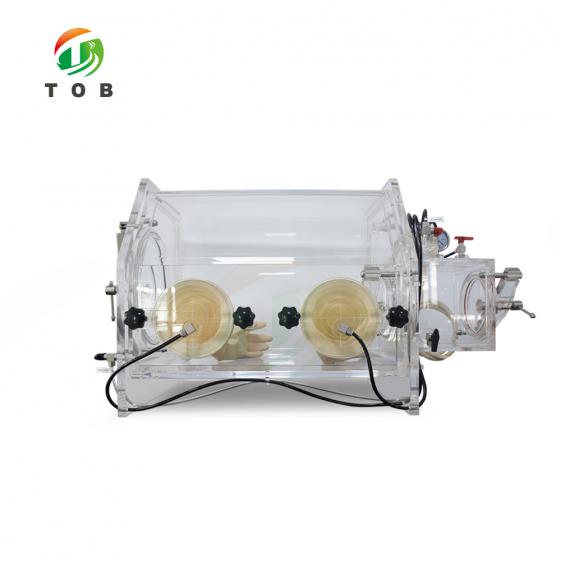

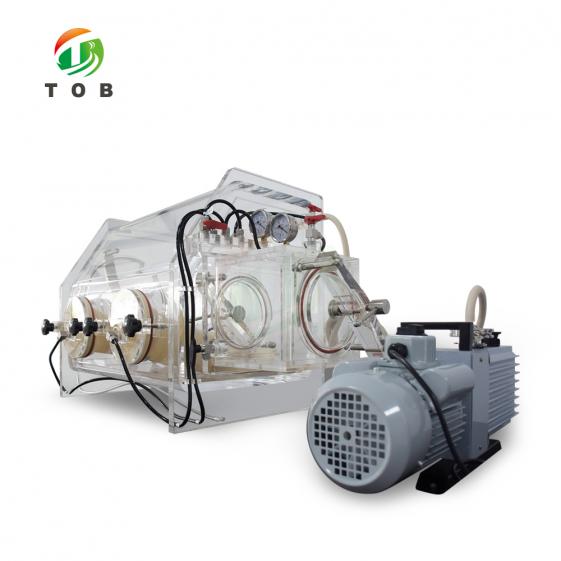

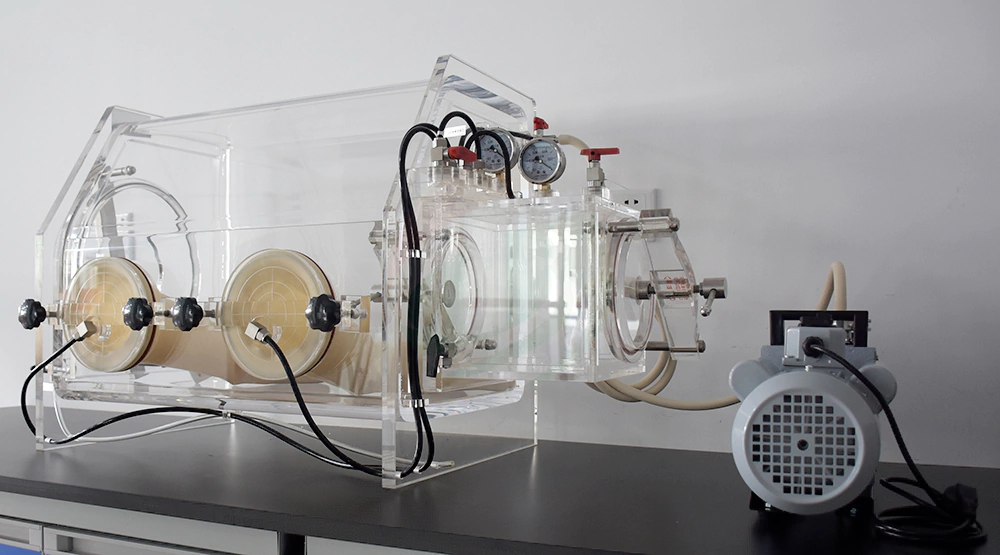

Fully transparent acrylic plexiglass glove box for lab 700*450*500mm


SPECIFICATIONS


Application:

This product is widely used in biochemistry, metallurgy, electronics, chemical, geological, mineral,pharmaceutical and other sectors. Electronic materials, magnetic materials, equipment, batteries, biological cultivation, food vacuum packaging, battery materials and so on.

The operation boxes in three models:

A: As radiation protection, quarantine operation or special dust-proof operation and can not be used for evacuation.

B: As an anaerobic glove box use hydrophobic transition chamber may be evacuated, the operating chamber of inert gas displacement, maintaining anaerobic hydrophobic operating environment.

C: Operation box and transition box to perform vacuuming operation, the vacuum can reach ultimate vacuum -0.1MPA.


Features:

Transparent material, simple structure, easy to use.

Under normal conditions, its shape is stable, highly transparent, can pass through ultraviolet light, resistance to chemical attack and gas change.

The glove box is equipped with perforated sockets for scientific experiments.

Airtight performance is good, and can shield and absorb the α -ray and low energy β -ray emitted by radioactive substances, to protect human body tissue by ionizing radiation damage.


Technical Specifications:

Model

TOB-012C

Material Thickness

20mm

Open Door

Round door(Left side) diameter: 300mm

Transition chamber (right side) : 160mm

Round door diameter

300mm

Gloves Dimension

145*600*1.1mm or 145*800*0.3 (choose one)

Transition chamber vacuum degree



0 ~ -0.1Mpa (2.5-stage vacuum table),

packing more than 12 hours

Operating room vacuum degree

0 ~ -0.1Mpa (2.5-stage vacuum table), packing more than 12 hours

Using a gas

Argon, helium, nitrogen gas (purity 99.95%) or more

Operation box size

700 * 450 * 500mm

Transition box size

240 * 240 * 240mm

Vacuum degree

0~0.1mpa(2.5 stage vacuum table)

Dwell time

12 hours

Optional equipment

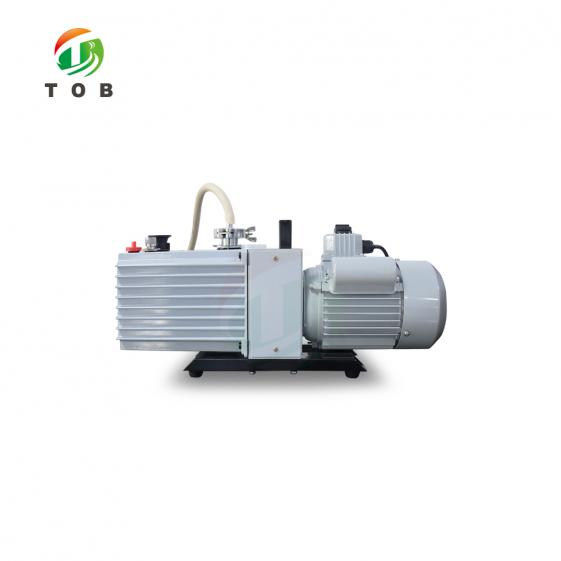

Vacuum pump(between 2L-4L),Dew-point meter, Oxygen analyzer, balance, Electric furnace , etc.

Leak rate

≤0.05%

Weight

90kg

Accessories

vacuum gauge: 2pcs

vacuum valve: 6pcs

Power supply board: 1pcs

Air pipe: 1set

Gloves: 1pair


Product display

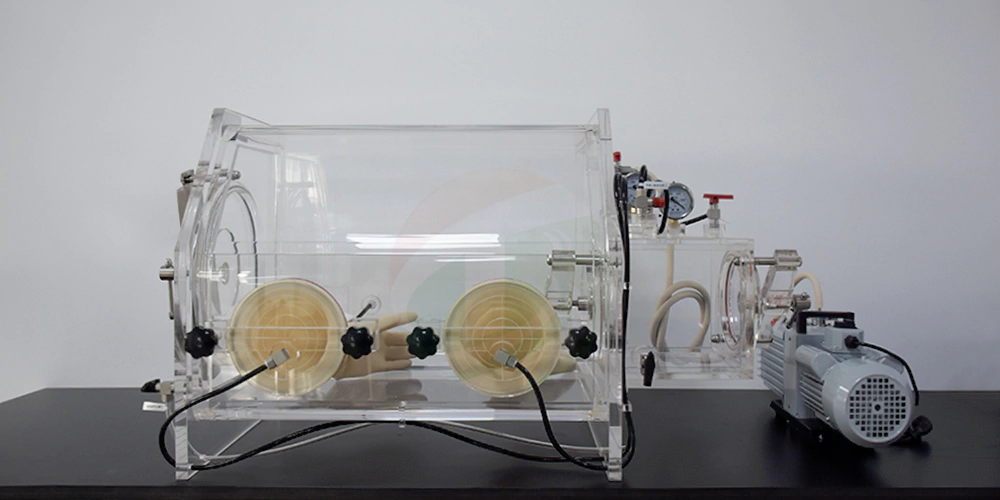

acrylic glove box

plexiglass glove box

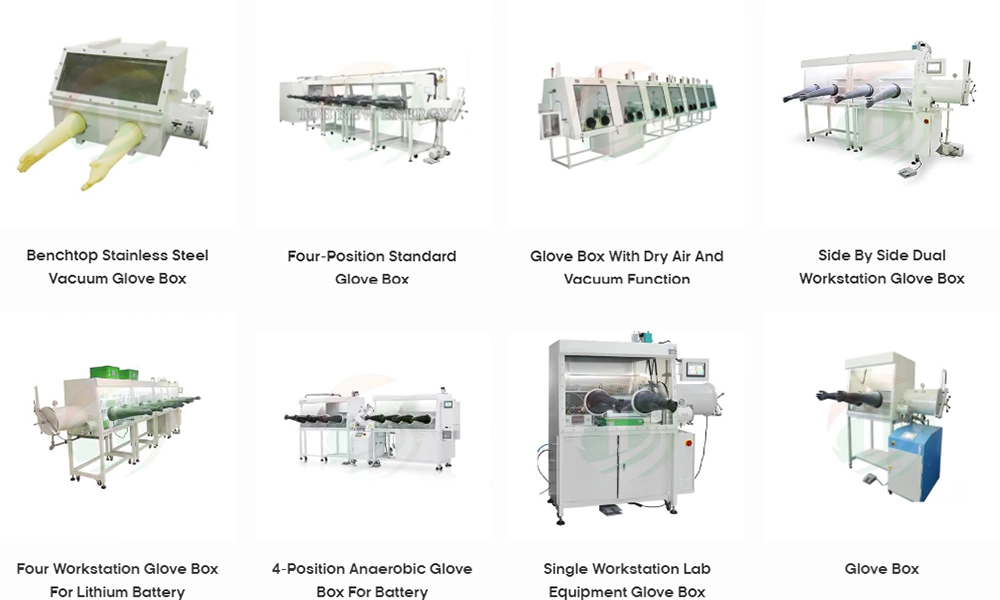

More glove box
