Busbar Sticking Machine For Thin-Film Solar Cell Manufacturing

This machine consists of automatic bus bar system, automatic bus bar release system, automatic positioning transmission system and control system.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-BBSM
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    china
  • shipping port:

    xiamen
Product Detail

Busbar Sticking Machine For Thin-Film Solar Cell Manufacturing


SPECIFICATIONS



Equipment Component and introduction

This machine consists of automatic bus bar system, automatic bus bar release system, automatic positioning transmission system and control system. The head of the bus bar is placed on the moving mechanism, and the head is moved by the synchronous belt movement controlled by servo motor to realize rolling laying.


Equipment parameters

a. Size:

   1840*910*1800(for 600*1200 Substrate);

   2600*1815*1915(for 1000*2000Substrate);

b. Running speed: 50~200mm/s adjustable (touch screen digital adjustable)

c. Electrode lead reel change time: <2min/time.

d. The life of electrode lead wire scissor>300000 times

e. Taping pressure 60~150N adjustable

f. Supply and rewind tray tension can be adjusted digitally on the touch screen

g. The efficiency: ≤52S


Product Display

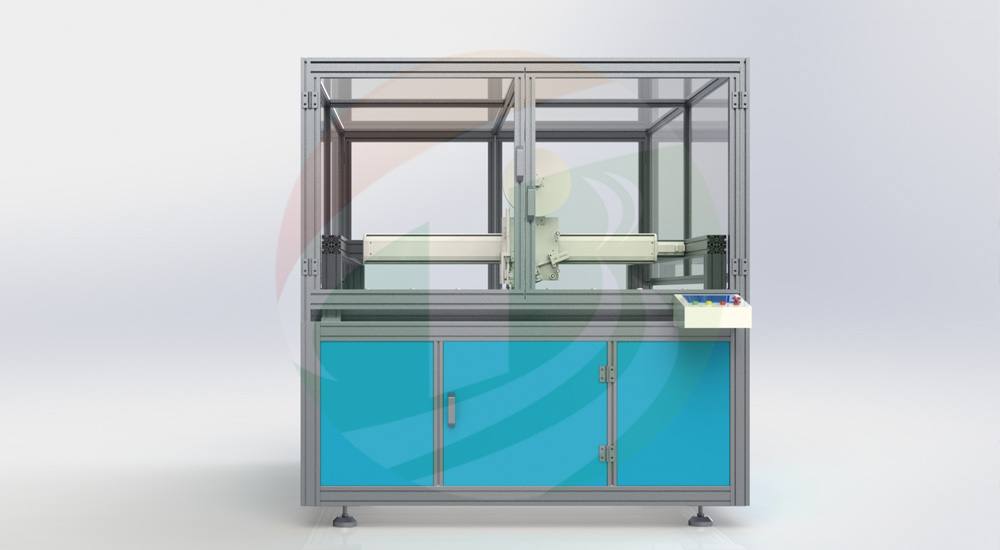

Busbar Sticking Machine

Busbar Sticking Machine
