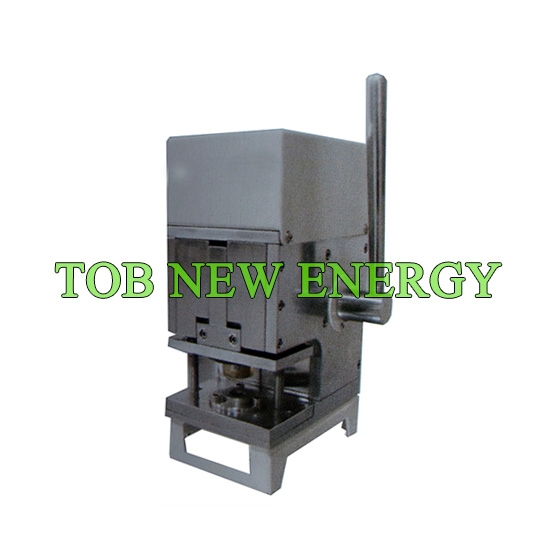

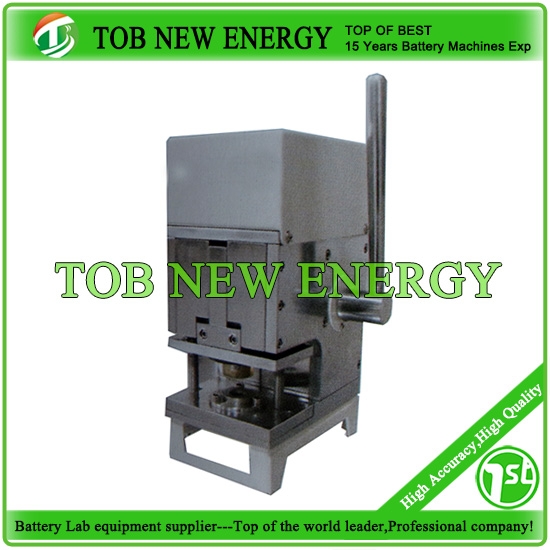

Coin Cell Electrode Punching Machine Coin Cell Electrode Punching Machine

Coin Cell Electrode and Separator Punching Machine

The Coin Cell Punching Machineis used for coin cell electrode punching with customized cutting die.

  • item no.:

    TOB-CP-S2

  • order(moq):

    1 set

  • Payment:

    L/C,T/T,Western Union

  • Price:

    $1000/SET

  • product origin:

    China

  • shipping port:

    XIAMEN

  • Lead Time:

    7 days
inquiry now
Product Detail

Precision Coin Cell Punching Machine with Bespoke Punching Die for Electrode and Separator Cutting


SPECIFICATIONS



The Coin Cell Punching Machine is used for coin cell electrode punching with customized cutting die. It's operation is simple with light weight,  The resulting discs can be used as electrode/separator discs of split test cell and coin cell for battery researches.


Machine model

Coin Cell Punching Machine  TOB-CP-S2

Operating

Manual

Punching size

Standard configuration : φ14mm punching die,

φ8-24mm can be chosen

Application Notes

For make CR2016, CR2025 or/and CR2032 coin cell batteries,

we will need at least three cutting dies:

A 15mm (for negative side case, which is 16.5mm in diameter)

B 19mm (for positive side case, which is 20mm in diameter)

C 20 mm (for separator to fully separate the electrodes)

For CR2450 coin cell:

20mm cutting die can be used for cutting electrode discs and the

24mm cutting die for either electrode or separator disc.

 Die materials

 Hight quality die steel with HRC60 Hardness

Punching stroke

25mm

Punching thickness

0.005-0.5mm electrode and separator

Advantages

Simple operation

Light weight

Can both cut electrode and separator

Dimension

166*196*233mm

Weight

About 15kg

Warranty

One Year limited warranty with lifetime support
