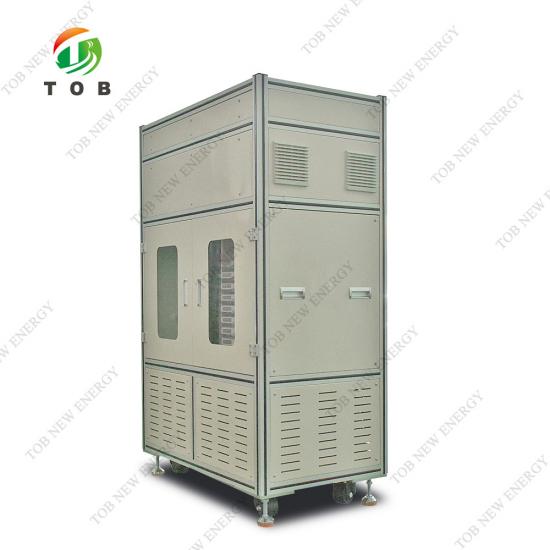

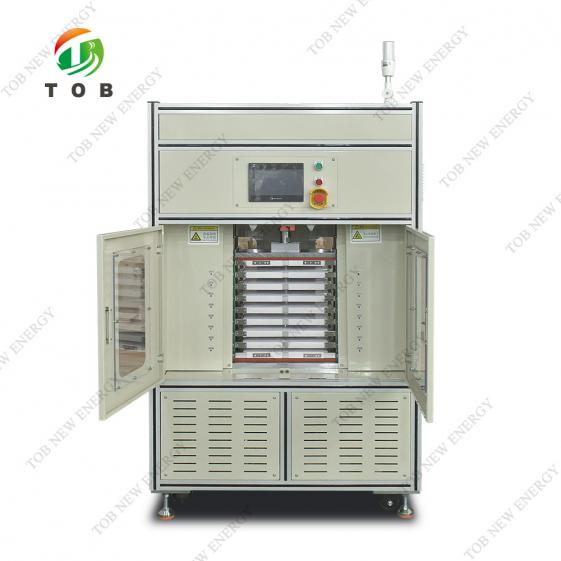

Hot-Press Machine For Lithium Pouch Cell Formation

Ttem

No.

Size（mm)

Length

L1

60～150

Widths

W1

40～80

Thickness

T

3～12

Battery Tab Length

S

10～20

Minimum Distance of Tab

W2

≥10

Widths of Tab

W4

10～20

Item

Indicator Parameter

Resolution

AD：24bit；DA：16bit

Input Impedances

≥1GΩ

Voltage

Constant voltage range control

10mV~5V

Min. discharge voltage

Both ends of the upper and lower clamps can be discharged to 1V, and the length of 2m wire can be discharged to 1.5V.

Accurate

±0.01% of FS

Stability

±0.02% of FS

Electric current

Output range

Range 1: 0.2mA-0.1A; Range 2: 0.1A-3A; Range 3: 3A-6A

Accurate

±0.1% of FS

Constant Voltage Cutoff Current

Range 1: 0.1mA; Range 2: 3mA; Range 3: 6mA

Stability

±0.05% of FS

Power

Single channel output power

30W

Stability

±0.1% of FS

Time

Current Response Time (10%FS~90%FS)

＜1.5ms

Work step time range

≤(365*24) hours/work step, time format support 00:00:00:00 (h, min, s, ms)

Data recording

Data recording conditions

Minimum time interval: 100ms;

Minimum sampling voltage: 10mV

Minimum sampling current: 6mA

Minimum voltage interval: 10mV

Minimum current interval: range 1: 0.1mA; range 2: 3mA; range 3: 6mA

Recording frequency

10Hz
