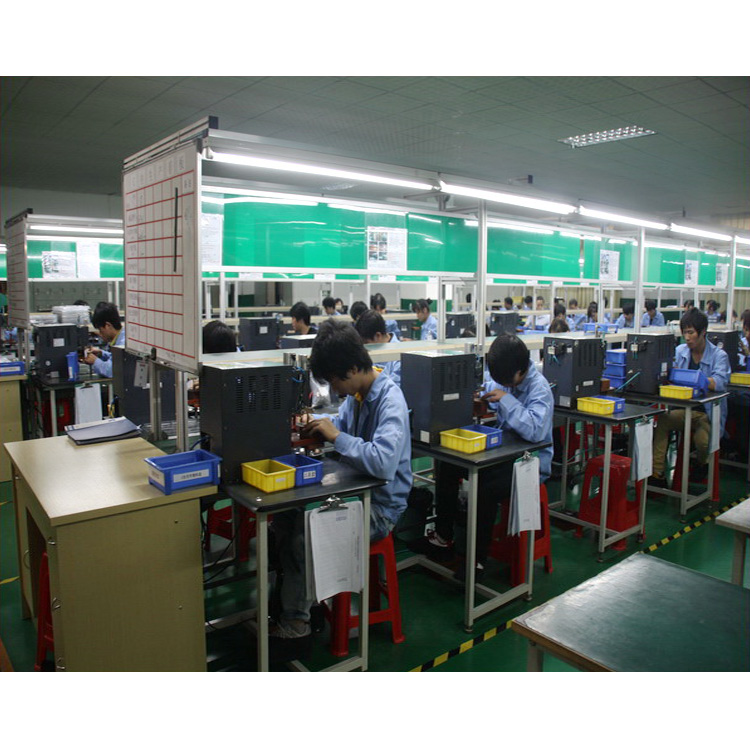

Manual Pouch Cell Manufacturing Line

TOB NEW ENERGY provides a complete set of drone battery pilot line solutions, providing a full set of battery materials, equipment, and battery technology.

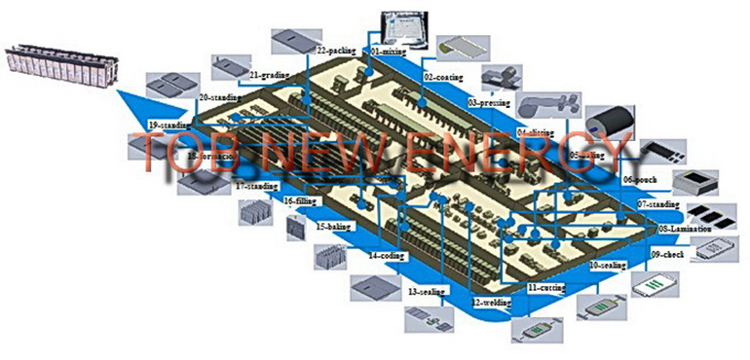

TOB offers a full set of semi-auto pouch cell production line solution.

TOB offers professional lithium battery production system solutions for polymer battery and supercapacitor manufacturing.

TOB offers the most professional pouch cell and supercapacitor assembly line equipment for battery research and manufacturing.

TOB NEW ENERGY provides a complete set of unmanned aerial vehicle UAV battery production line solutions, providing a full set of battery materials, equipment, and battery technology.

Battery internal short-circuit integrated testing machine For lithium battery safety performance testing SPECIFICATIONS 1.Temperature control box technical specifications Temperature range 0℃~+100℃ Analytical precision 0.01℃ Temperature fluctuation ±0.5℃ Temperature uniformity ±2.0℃ Temperature rising rate Average 3℃/min（from 0℃ to 100℃、Nonlinear load） Temperature falling rate Average 1℃/min（from 1000℃ to 0℃、Nonlinear load） Within the box size W600*H750*D500MM Within the box material Mirror stainless steel plate,the bottom reinforcement Carton size W1500*H1750*D1000MM Carton Material Stainless steel or cold rolled steel paint treatment 2.Shield prick test specifications Max load 200kg Force value resolution 1/10000 Force accuracy ≤0.5% Force value magnification 1/1000 Displacement resolution 7-speed automatic switch Displacement accuracy ≤0.5% Shield thorn 10*10MM Speed Range 0.01~20MM/S Effective stroke 150MM（Without holder） Test largest plane 300*300MM(Customized) 3.Voltage data collection Voltage data collection range 0~20V，Acquisition frequency 100HZ/S Voltage resolution 1MV Stop voltage range can be set 0~20V  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

3mm Width Nickel Tab as Negative Terminal for Polymer Li-ion Battery SPECIFICATIONS Material      Nickel 99.99% Length      48mm Width      3mm Thickness      0.09mm Application      Connect to anode current collector as polymer battery negative terminal Net Weight      128mg/pcs Max. Loading Current      3A  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

150℃ Four Drums Electric Round Oven For Roller Battery Production Line Electrode Baking SPECIFICATIONS TheRound Vacuum Ovenis dedicated to theLi ion battery electrode dryingprocesses for producing. The vacuum oven working chamber is equipped with cylindrical cantilever, can hang the whole roll electrode, with maximum bearing weight up to 400 kg. The TOB-JK-ZKHX-AR4 Round vacuum ovenis equipped with four drums, you can also choose single drum, double drum, three drum or four drum according the battery production line output. Model Four Drum Round Vacuum Oven   TOB-JK-ZKHX-AR4 Working Voltage AC110V/220V, 50/60HZ Max. Power Consumption 4.5KW*4 Temperature range RT-150℃ For battery material and electrode baking, with accuracy≤±1 ℃ Vacuum degree -98Kpa, Can maintain limited vacuum degree up to 24hours Working chamber size Dia 550*600, can customized according request Product Dimensions (H*W*D) 1850*2180*1100mm Warranty One year limited warranty with lifetime support PACKAGE AND SHIPPING 1 Standard exported package : Internal anticollision protection, external export wooden box package 2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode 3 Responsible for the damage during shipping process, change the damage part for free 4 Supply with suitable voltage input and power plug according to customer's country requirements. SERVICES 1 We supply machines with battery technology support. 2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery. 3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line. 4 We can also supply a full set of battery technology for battery design, research and producing. We cooperated with each other, and we will do TOP OF THE BEST battery  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
