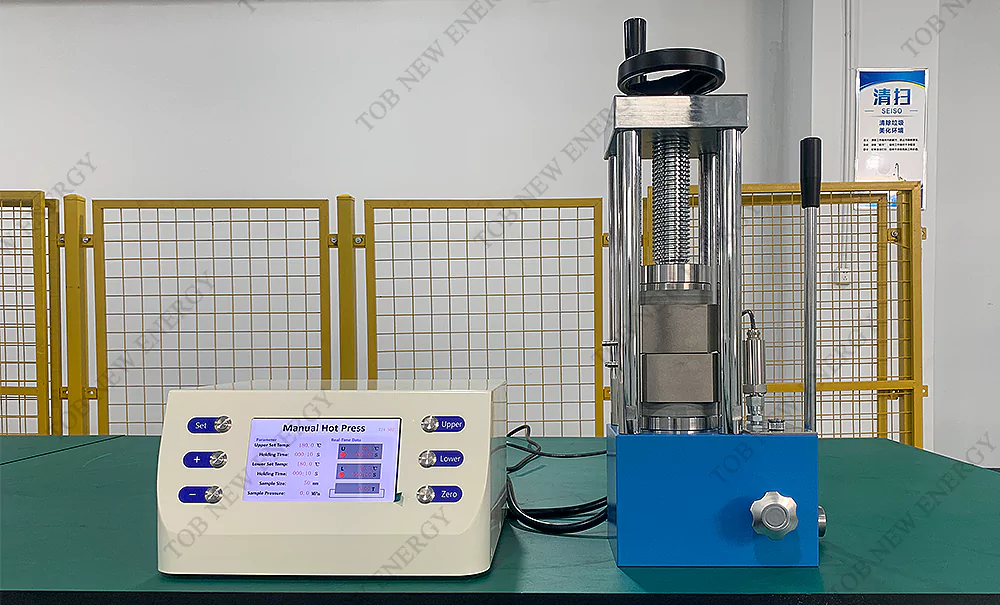

Max 40 Tons Manual Heat Press Machine
Brand:
TOB NEW ENERGYitem no.:
TOB-NLH-600-Seriesorder(moq):
1Payment:
L/C,T/Tproduct origin:
Chinashipping port:
XIAMEN
TOB-NLH-600-Series Max 40 Tons Manual Heat Press Machine
SPECIFICATIONS
Selection Suggestions:
For manual hot presses, it is recommended that the pressure used be within half of the full-scale pressure. For example, if a pressure of 10 tons is required, it is best to choose a hot press of more than 20 tons, so that the pressure can be relatively stable. If the pressure is too high, the insulation pads and insulation boards will produce large deformations under high pressure, which will lead to insufficient pressure.
If the pressure required is relatively high and the pressure holding requirement is relatively high, it is recommended to choose an automatic tablet press. Because the automatic machine has an automatic pressure replenishment function, that is, if the pressure is insufficient, the machine will automatically replenish the pressure.
| Model | TOB-NLH-600C/CG(500℃) | TOB-NLH-600D2/DG2(500℃) | TOB-NLH-600 E/EG(500℃) | TOB-NLH-600F | TOB-NLH-600F-400mm |
| Pressure range | 0-24.0 ton | 0-30.0 ton | 0-40.0 ton | 0-40.0 ton | 0-15.0 ton |
| Piston diameter | Chrome plated cylinder Φ95mm(d) | Chrome plated cylinder Φ110mm(d) | Chrome plated cylinder Φ130mm(d) | Chrome plated cylinder Φ130mm(d) | Chrome plated cylinder Φ95mm(d) |
| Main body overall structure | Units have no sealed connections, reducing the number of oil leakage points | Units have no sealed connections, reducing the number of oil leakage points | Units have no sealed connections, reducing the number of oil leakage points | Units have no sealed connections, reducing the number of oil leakage points | Units have no sealed connections, reducing the number of oil leakage points |
| Mould heating temperature | Room temperature-300.0℃/500.0℃ | Room temperature-300.0℃/500.0℃ | Room temperature-300.0℃/500.0℃ | Room temperature-300.0℃/500.0℃ | Room temperature-300.0℃/500.0℃ |
| Constant temperature time | 1sec~∞sec | 1sec~∞sec | 1sec~∞sec | 1sec~∞sec | 1sec~∞sec |
| Temperature control precision | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ |
| Heat insulation method | Imported heat insulation board | Imported heat insulation board | Imported heat insulation board | Imported heat insulation board | Imported heat insulation board |
| Cooling method | Water-cooled rapid cooling [water cooler optional] | Water-cooled rapid cooling [water cooler optional] | Water-cooled rapid cooling [water cooler optional] | Water-cooled rapid cooling [water cooler optional] | Water-cooled rapid cooling [water cooler optional] |
| Mould size | 100*100mm(M*N) chamfered | 200*200mm(M*N) | 300*300mm(M*N) | 400*400mm(M*N) | Double plate heating 400*400mm(M*N) |
| Main body size | 245*175*500mm (K*P*H) | 405*260*525mm (K*P*H) | 380*350*600 (K*P*H) | 500*480*650 (K*P*H) | 400*400*70mm (K*P*H) |
| Dimension of the whole machine | 500*175*500mm (L*W*H) | 950*260*525mm (L*W*H) | 700*400*600mm (L*W*H) | 850*480*650mm (L*W*H) | 550*520*460mm (L*W*H) |
| Power supply | 600W (200V/110V can be customised) | 1200W (200V/110V can be customised) | 3000W (200V/110V can be customised) | 5000W (200V/110V can be customised) | 5000W (200V/110V can be customised) |
| Main machine weight | 60kg | 180kg | 260kg | 460kg | 380kg |
