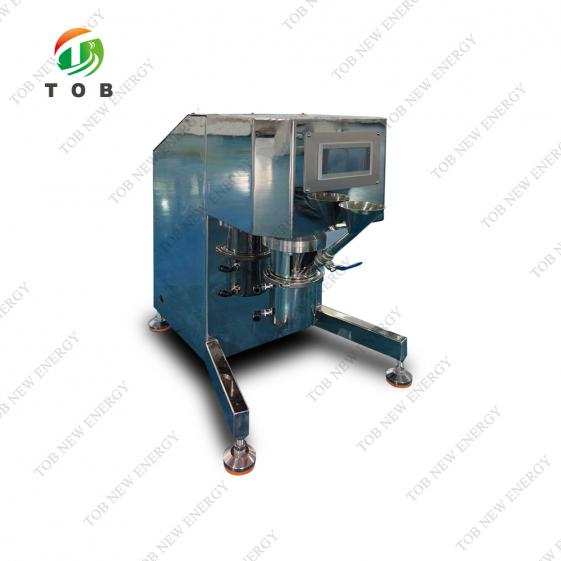

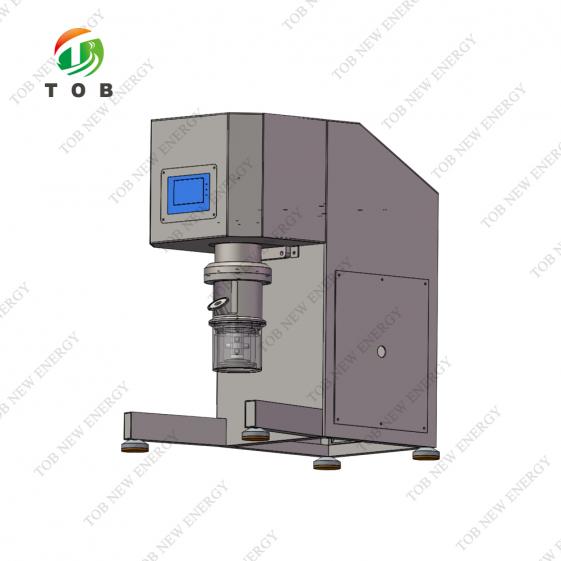

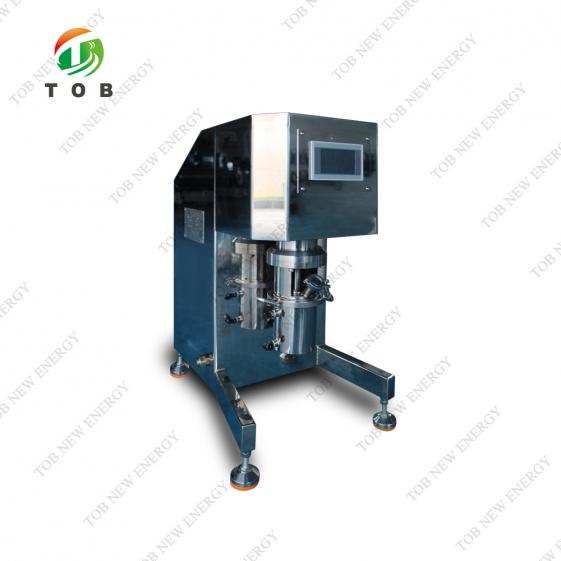

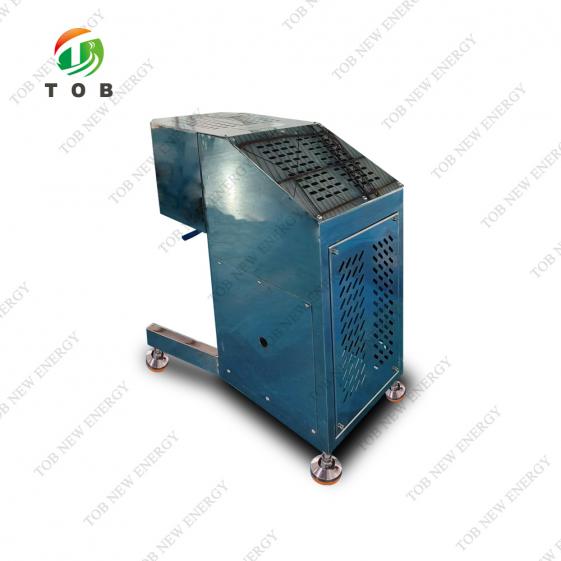

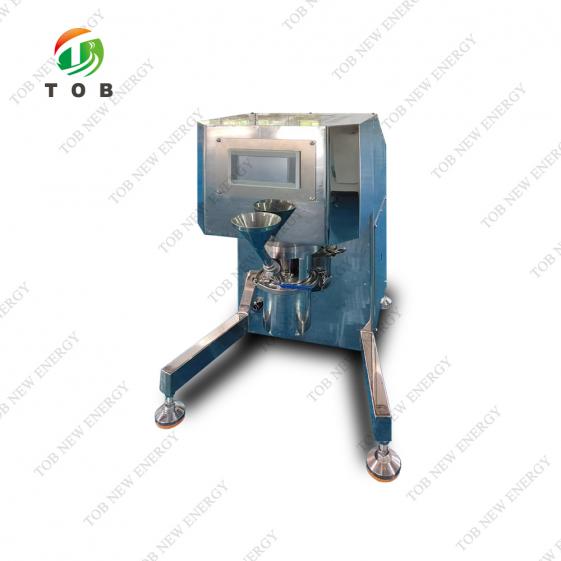

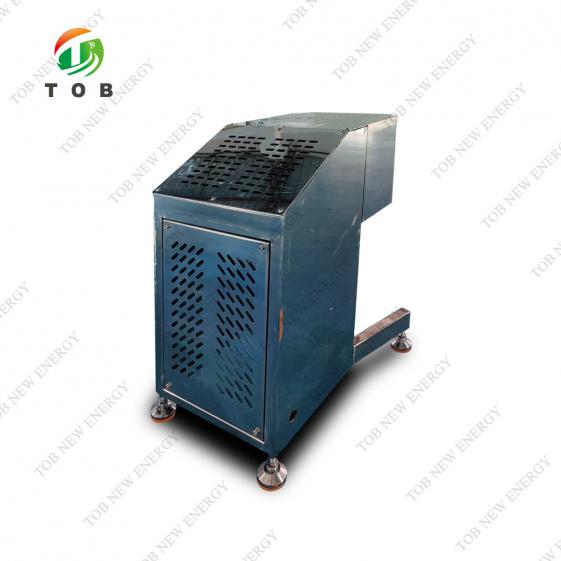

Nano Pin Sand Mill Machine

The TOB-KNL-0.1L of nano pin vertical sand mills is a specially designed vertical grinding system. It features strong shear force and high grinding efficiency. The screen free structure design prevents leakage and blockages. It can be loaded with 0.015 mm grinding media, achieving a product size of less than 100 nanometers with a more uniform particle size distribution.

Brand:
TOB NEW ENERGY
item no.:
TOB-KNL-0.1L
order(moq):
1set
Payment:
L/C,T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

Nano Pin Sand Mill Machine

SPECIFICATIONS

The TOB-KNL-0.1L of nano vertical sand mills is a specially designed vertical grinding system. It features strong shear force and high grinding efficiency. The screen free structure design prevents leakage and blockages. It can be loaded with 0.015 mm grinding media, achieving a product size of less than 100 nanometers with a more uniform particle size distribution.

Item	Configuration
Model	TOB-KNL-0.1L
Net volume	0.1L
Grinding media addition amount	60%-85%
Cooling water flow rate	About 90 L/H
Cooling water temperature	8-12℃
Cooling water inlet and outlet	6'' hose
Dimension	L590* W450*H750
Color	All stainless steel casing
Weight	About 80KG
Supply voltage	380V-50HZ
Motor brand	2.2KW Shanghai Pinxing (If there are any changes, no separate notification will be provided.)
Frequency converter	2.2KW Shanghai Zhongchen(If there are any changes, no separate notification will be provided.)
Rotate speed	800-3000rmp, 0m/s-13m/S (linear speed)
Bearing	ImportedSKF
Protective device	If the temperature inside the bucket is too high, the main unit will automatically shut down
Sealing ring	FFKM
Mechanical seal	Double-ended cartridge mechanical seal
Electrical accessories	Taiwan Shilin Electric(If there are any changes, no separate notification will be provided.)
Control system	Siemens PLC, Siemens touch screen
Inner chamber material	Zirconia ceramic material
Pin material	Zirconia ceramic material

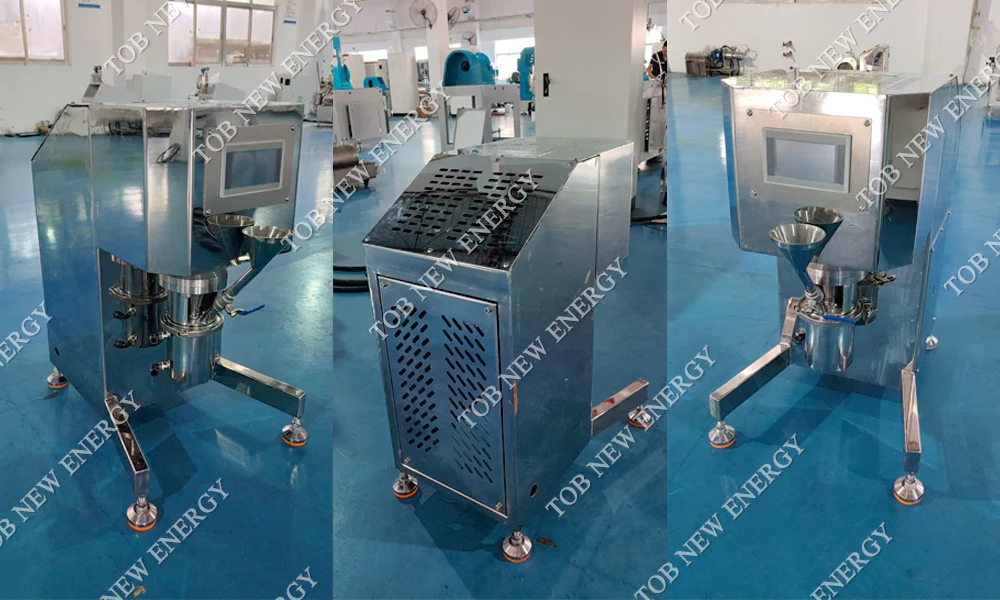

PRODUCT DISPLAY

Nano Pin Sand Mill Machine
