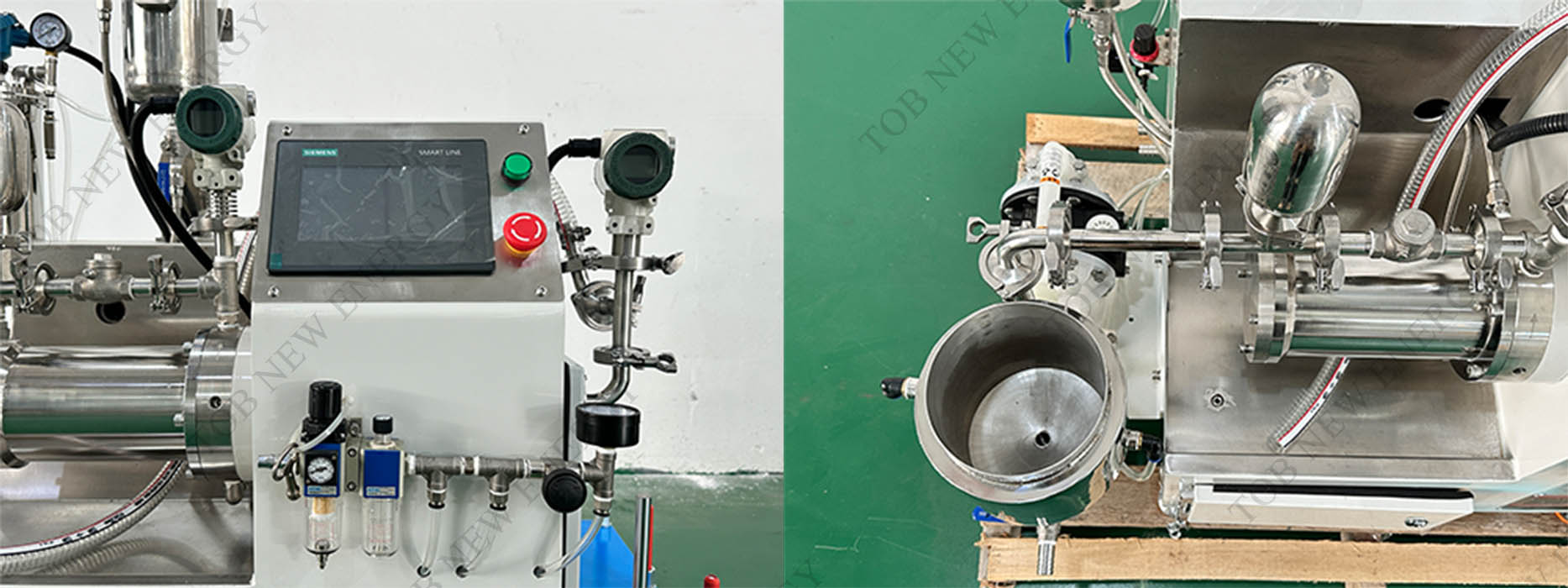

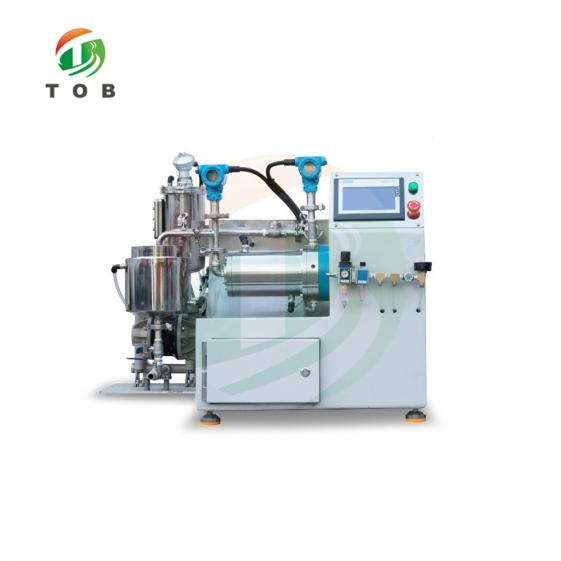

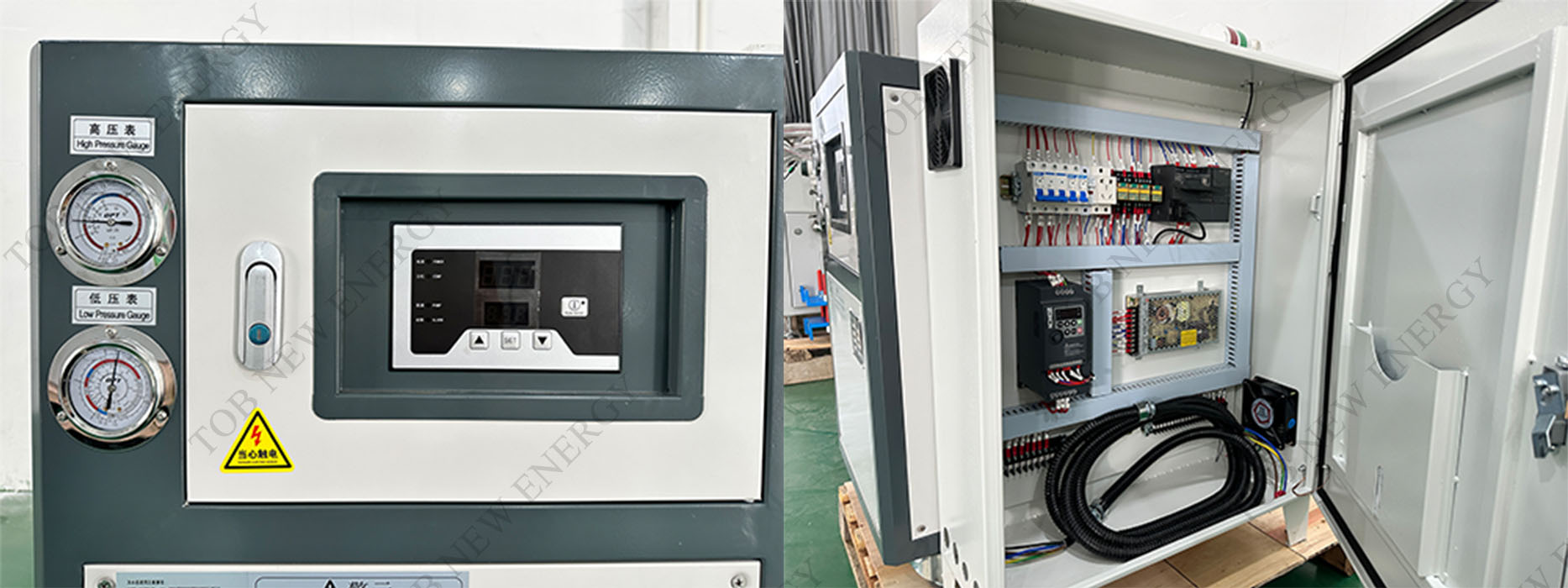

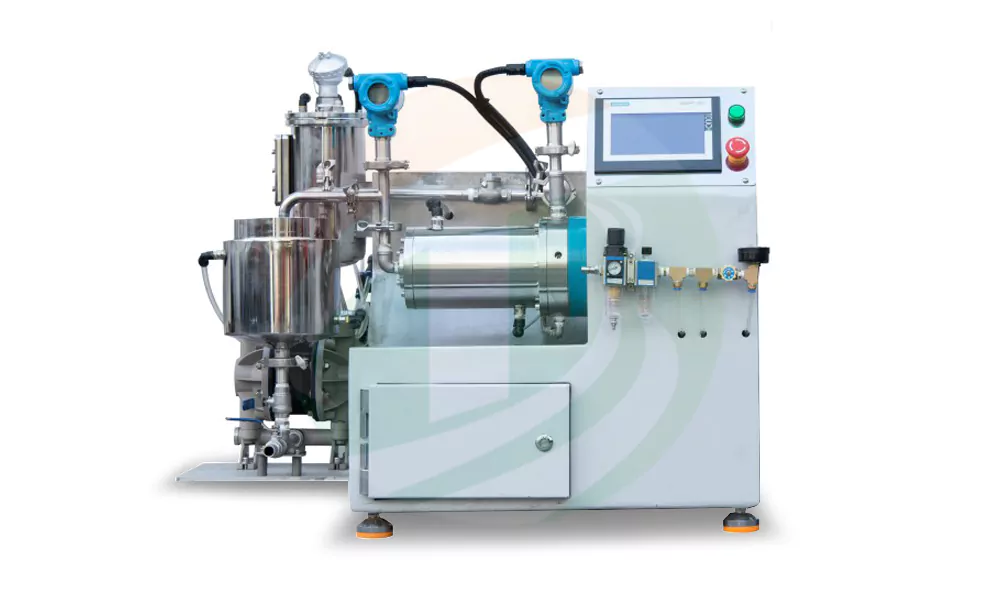

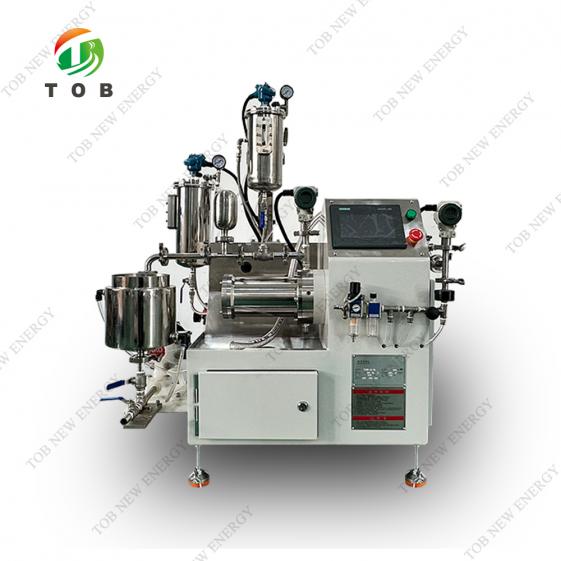

Nano Horizontal Sand Mill Grinding Machine

Net Capacity

1L

Milling Materials

2.7kg70%additive amount（95 high purity zirconium）

Separator form

Large flow static separator

Separator clearance

0.05mm

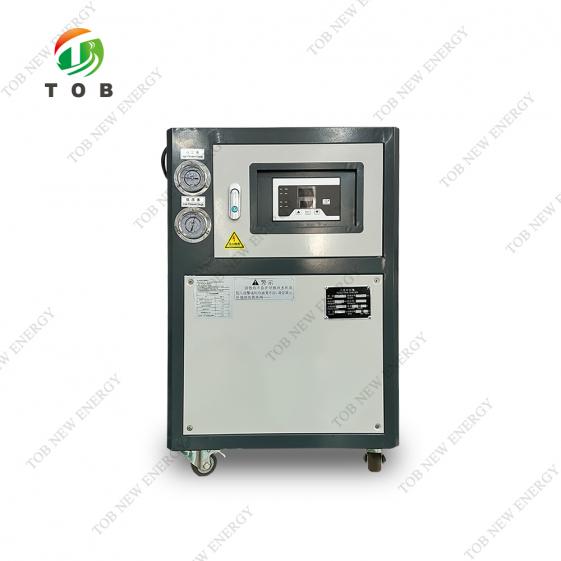

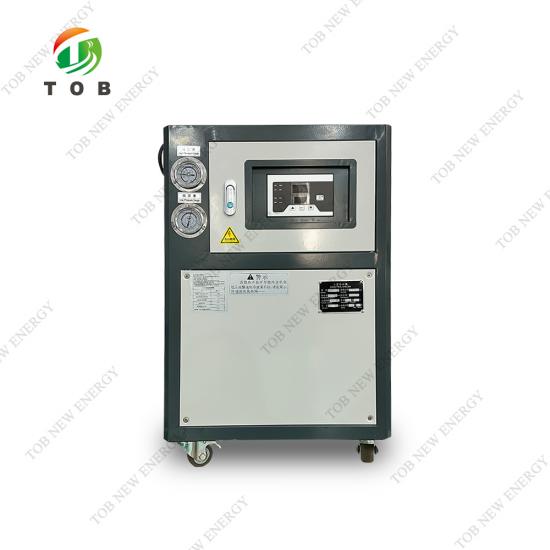

Cooling water flow

About500L/hour

Cooling watertemperature

8-12℃

Cooling waterpressure

0.4Mpa

Cooling waterinlet/outlet

DN 6

Inletpressure

0.2Mpa

Outlettemperature

0-100 ℃（adjustable）

Materials feeding form

With pump transfer

Dimension（mm）

Length550mmWidth450mmHeight650mm

Weight（kg）

110

Materials feeding form

Pump

Pneumatic diaphragm pump

Electrical drive part

Voltage

380V-50HZ

Frequency converter

5.5KW

Host power

4KWmotor

Drive

Belt wheel drive, linear speed can be adjusted by frequency conversion

Bearings

SKF, SWEDEN

Electrical accessories

Taiwan Shilin / Schneider

Rotate speed

2800 r/min, 0m/s-13m/S（liner speed）

Control cabinet

Independent Control Cabinet

Control system

Siemens touch screen PLC control

Protector

1 Contact type pressure induction protection device, when the pressure in the barrel is too high due to obstruction and other abnormal conditions, the host machine will stop automatically;

For example ,Mechanical shaft seal or shaft seal sheet leakage, resulting in no coolant in the cooling bucket, the host machine automatically shut down;

2 Circulating pressure induction protection,

For example, Mechanical shaft seal or cooling circulation pipe blocked, the host machine automatically shut down;

3 Temperature induction protection, the temperature in the barrel is too high, the host machine automatically shut down

Material barrel

5L

Mechanical seal part

Seal form

Imported double face assembly type mechanical seal

Seal pressure

0.2Mpa

Seal ring

Anti-corrosion O-ring, Teflon materials

Seal liquid

According to mill material

Wear-resisting parts configuration

Inner material

Silicon carbide ceramic material

Grinding rod pin

Zirconia ceramic material

Grinding rotor

Zirconia ceramic material

Mesh

304 stainless steel
