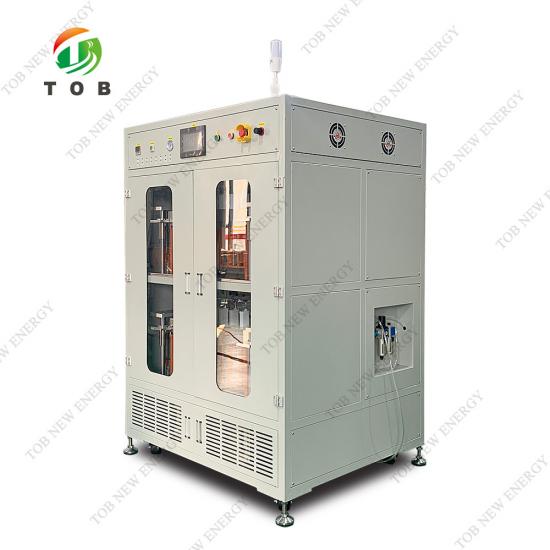

Negative Pressure Formation Machine for Prismatic Cell

The TOB-NPF-5V30A-16 negative pressure formation machine is mainly used for prismatic cell formation under vacuum and negative pressure. The machine consists of a heat preservation box and a set of press, with a total of 16 channels.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-NPF-5V30A-16
  • order(moq):

    1set
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

Negative Pressure Formation Machine for Prismatic Cell


SPECIFICATIONS


The main functions of the press are as follows:
The positive and negative of the battery are connected with the equipment positive and negative , and the battery electrolyte injection hole is connected with the vacuum nozzle; do vacuum for battery, and the chassis are heated, after meet the process requirements vacuum and temperature, start formation for battery, when complete formation get through positive pressure to break the vacuum, the electrolyte within the reservoir cup back to the corresponding cell, when suction nozzle needle bed separated from the battery get through fine negative pressure, prevent the residual droplet electrolyte fell on the cell surface.


Main function of formation:

  • Channel reliable docking function
  • Charging function
  • Discharge function; Discharge energy feeds back to the grid
  • Data link and communication function
  • Safety and protection functions

Basic parameter

  • Power supply configuration : voltage Three-phase: 380V/60Hz, total power distribution 7KW, power supply charge and discharge power 2.4KW, maximum heating power 4kW (starting from room temperature to target temperature process), heating power 1kW during insulation.
  • Air source input : the lowest input pressure shall not be less than 0.3mpa, and the highest input pressure shall not exceed 1.0Mpa; The input negative pressure is not less than -90 kpa.
  • A smoke sensor is installed on the machine : When the smoke is sensed, the fixture will be opened automatically, and the formation process will be stopped, and the spraying system will be started.
  • Equipment weight : the weight of a single press is less than 400kg, the weight of the whole machine is less than 1000kg, and the ratio of total weight to bearing area is less than 700kg/m².
  • Overall dimensions of the device : L x W x H ≤1440 x 1200 x 1650(excluding the tri-color lamp)


PRODUCT DISPLAY


Negative Pressure Formation Machine

Negative Pressure Formation Machine

Negative Pressure Formation Machine

Negative Pressure Formation Machine
