Semi-auto Battery Electrode Stacking Machine

The TOB-BDP100-S battery stacking machine is mainly used for Z-shaped stack assembly of positive and negative electrodes and separators in lithium battery cells.

  • Brand:

    TOB NEW ENERGY

  • item no.:

    TOB-BDP100-S

  • order(moq):

    1set

  • Payment:

    L/C, T/T

  • product origin:

    China

  • shipping port:

    XIAMEN
inquiry now
Product Detail

Semi-auto Battery Electrode Stacking Machine



SPECIFICATIONS

The TOB-BDP100-S battery stacking machine is mainly used for Z-shaped stack assembly of positive and negative electrodes and separators in lithium battery cells. Manual loading, subsequent electrode position correction, and automatic stacking process are completed, resulting in high stacking efficiency and precision. Different sizes can be achieved by adjusting the fixture, which is very suitable for the development and sample production of stacked lithium-ion batteries. The desktop structure design of this device can be placed in a glove box for use; The equipment adopts a single cantilever structure design, with automatic constant tension control of the coil isolation film.


Main features:


  • Automatic servo constant tension control for coil separator, Z-shaped automatic lamination.
  • The number of laminations can be automatically controlled according to pre-set settings.
  • Adopting compatibility design, battery size changes can be achieved by adjusting the positioning fixture, with a large adjustment range to ensure stacking accuracy.
  • PLC control, HMI operation, easy to use and maintain.
  • Manual loading of polarizers, automatic positioning, mechanical arm vacuum suction cup automatic suction, automatic stacking.
  • The left and right movement is controlled by a pulse motor, which is precise and convenient for fine-tuning.
  • Can be used in a glove box.



Technical parameters

Model TOB-BDP100-S
Stacking method Z-shaped stacking, the separator is rolled
Operation mode The mechanical arm automatically takes and stacks the material, and automatically pulls the diaphragm with constant tension control
Vacuum degree of suction greater than -65Kpa
Stacking accuracy Uniformity ≤ ± 0.3mm (relative position size between electrodes, 25 layers of stacking)
Electrode width 40-90mm
Electrode length 40-100mm (in the direction of the tab, excluding the size of the tab)
Tab length Max.15mm
Stacking thickness Max.15mm, the number of stacked layers Max.100 can be set
Separator roll diameter Max 200mm
Separator core 3-inch core, clamped with an expansion shaft;
Stacking speed 4-6S/piece for stacked electrodes, 6-8S/piece for stacked metallic lithium (excluding the stacking preparation time for each cell)
Power supply Single-phase AC220V ± 10% (customizable 110VAC), frequency 50Hz/60Hz, power 0.4KW
Gas source 0.5~0.8MPa
Equipment size L800 * W600 * H720mm
Weight 120Kg

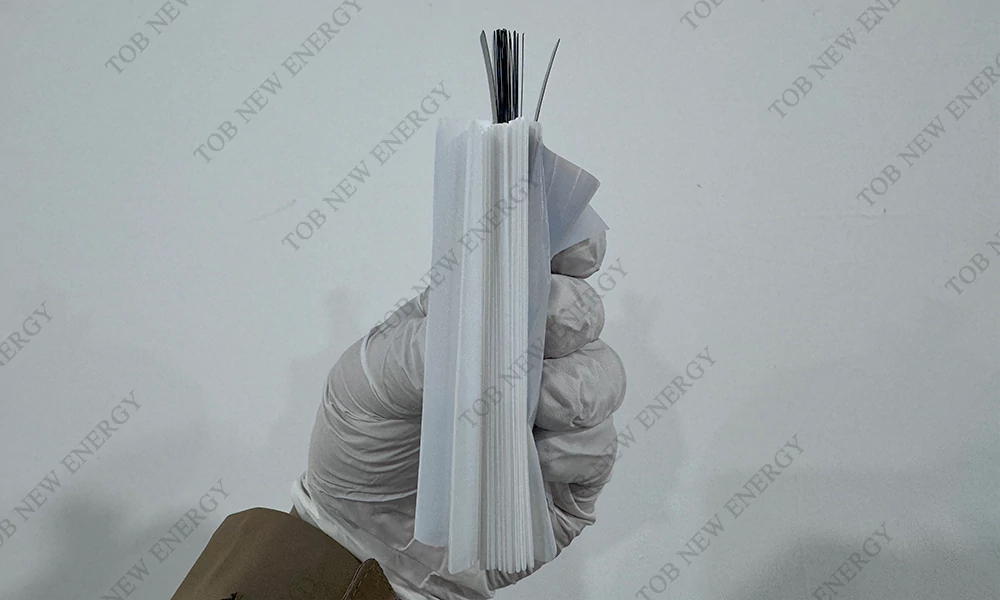

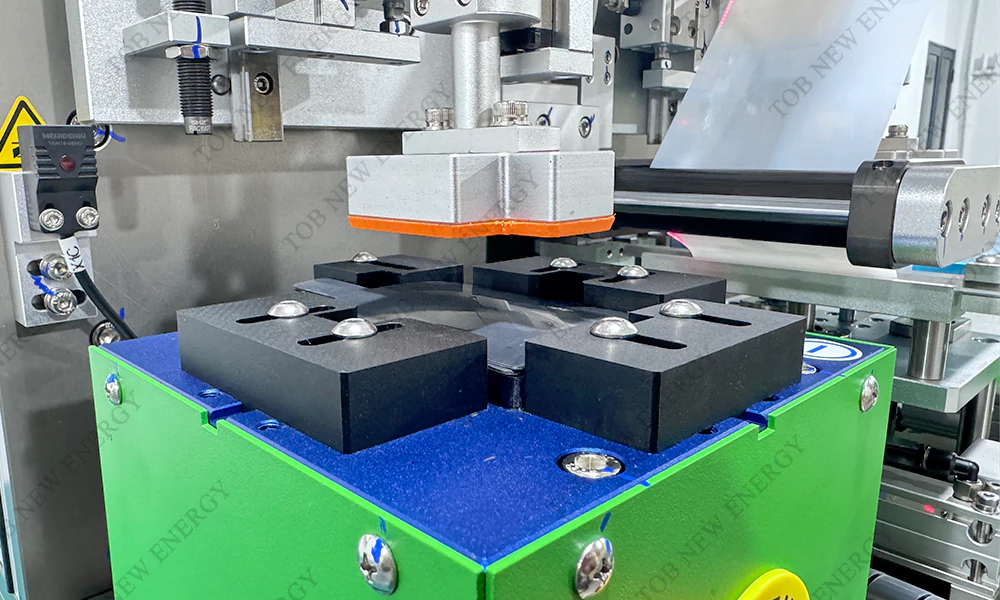

PRODUCT DISPLAY

Battery Electrode Stacking Machine

Battery Electrode Stacking Machine

Battery Stacking Machine

Battery Stacking Machine

Battery Stacking Machine

Battery Stacking Machine

Different colors can be customized
