Semi-automatic Battery Stacking Machine for Battery Electrode Z-fold Assemble

This machine is designed for large square lithium ion power battery stack design and development, use Z shaped stacked chip.


  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-S-DP-150
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    30days
Product Detail

Semi-automatic Battery Stacking Machine for Battery Electrode Z-fold Assemble



SPECIFICATIONS


TOB-S-DP-150 is a high-accuracy Semi-auto stacking machine with many advanced features to ensure a stable, repeatable and precise electrode stacking. It adopts "Z" glyph laminated.


Advanced Features:

1 PLC Touch Screen Control with easy condition setting

2 Continuous "Z" fashion stacking with a separator

3 Auto electrode pick-up & stacking via vacuum suction manipulator

4 Through four manipulator to remove electrode from material box placed second para platform, after calibration then place on lamination platform, laminated with automatic clamping device on stage.

5 Unreeling rotors for separator film feeding

6 Auto-tension control for separator film delivery


Model

Semi auto stacking machine  TOB-S-DP-150

Suitable battery size

Thickness H (mm)

5-20

Width W (mm)

30-90

Length L (mm)

80-150

Tab length Q (mm)

Q≤20

Tab width (mm)

≤20

Technology parameter

Stacking speed

1.3-1.5s/pcs

Registration accuracy

±0.5mm

Stacking quantity

Can be set

Percent of pass

≥98%

Power

4kw

Weight

800kg

Dimension (L*W*H)

1250*1150*1850mm

Materials size

Electrode

Length : 80-150mm

Width : 30-90mm

Thickness : 0.07-0.25mm

Tab

Length :≤20mm

Width : 8-20mm

Separator

Length : in roll

Width : 90-150mm

Thickness : 0.02-0.04mm

Inner diameter :φ76.2mm

Max out diameter :φ300


Product Display

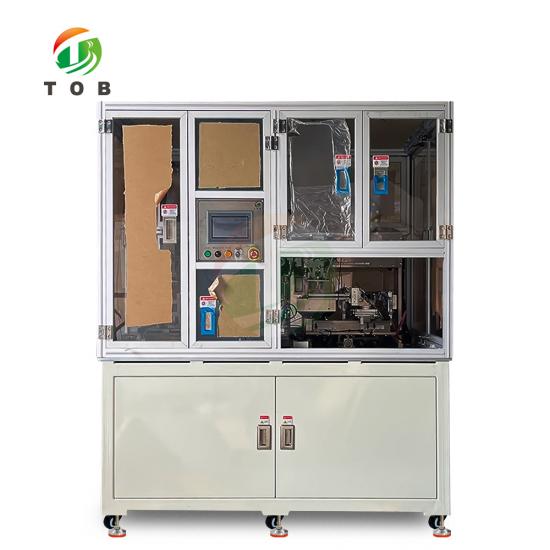

battery stacking machine

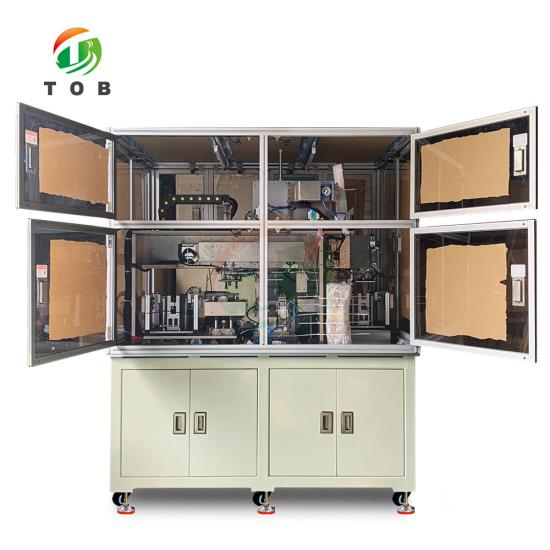

semi-automatic stacking machine
