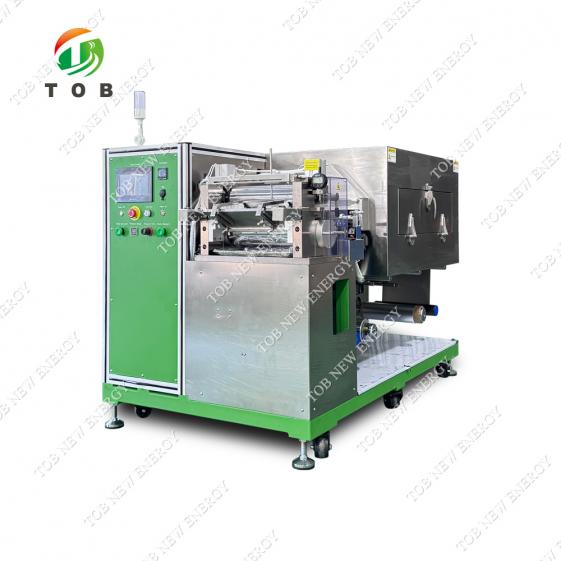

Solid State Battery Electrode Coating Machine
Coating width≤280mm
The TOB-SY300J solid state battery electrode coating machine is a three-roll transfer coating machine, can be continuous and intermittent coating, suitable for a variety of substrate surface coating process
Brand:
TOB NEW ENERGYitem no.:
TOB-SY300Jorder(moq):
1setPayment:
L/C,T/Tproduct origin:
Chinashipping port:
XIAMENLead Time:
20days
Solid State Battery Electrode Coating Machine
Intermittent Coating
Continuous Coating
SPECIFICATIONS
Features：
*can switch freely to achieve continuous and intermittent coating；
*Substrate tension control, transport stability, configuration correction device；

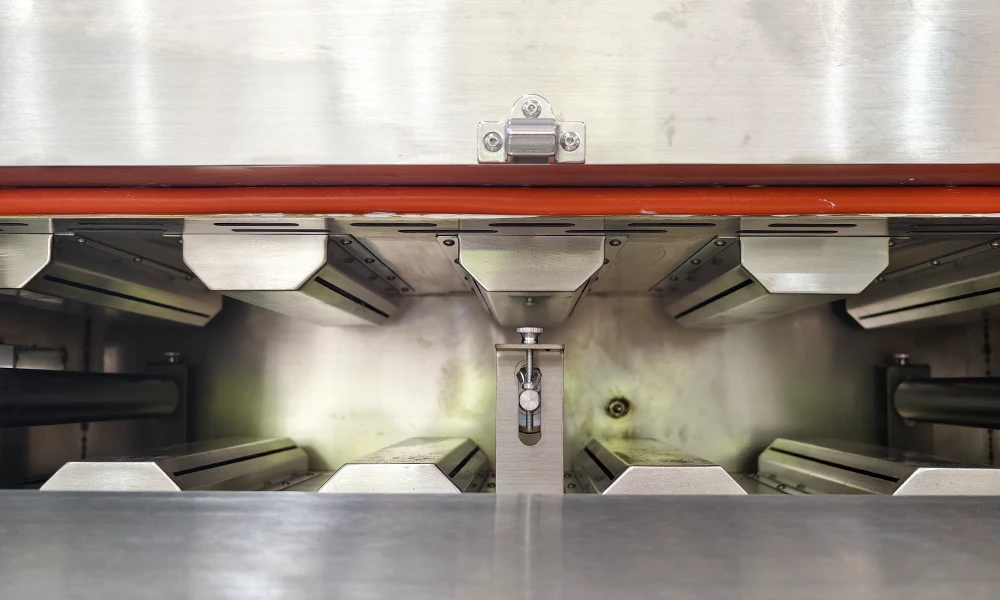

*Hot air oven, the upper and lower double-sided blowing, high-quality drying effect；

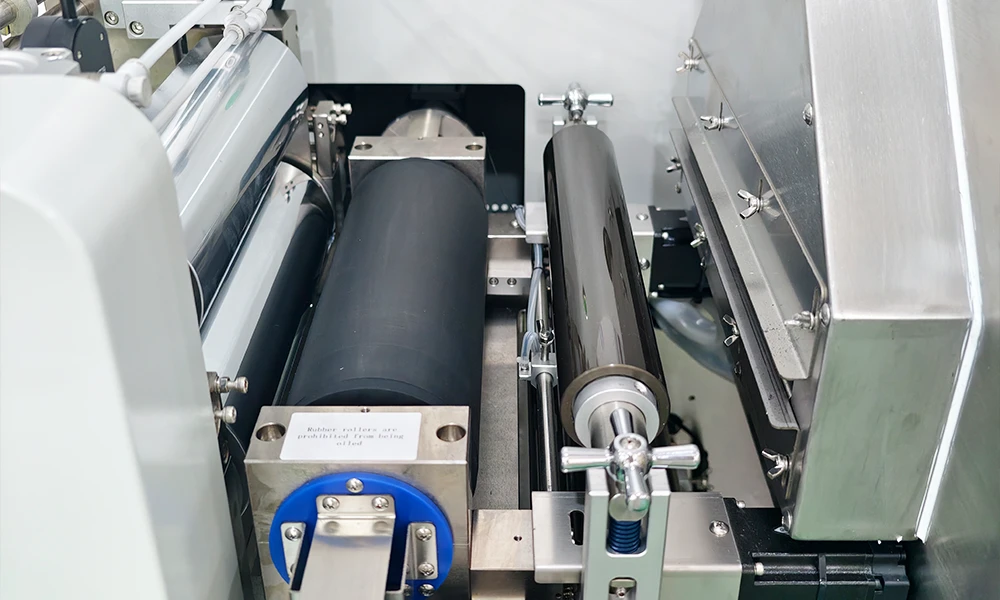

*Three-roll transfer coating, wider coating window；
*Comma scraper measurement, with precision adjustment agencies, access to high-Precision coating；

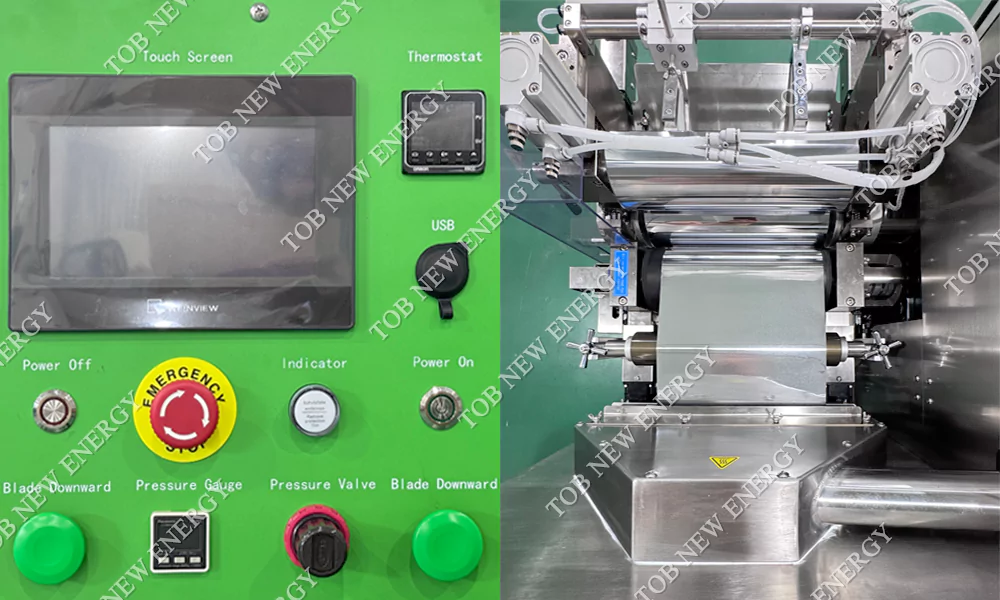

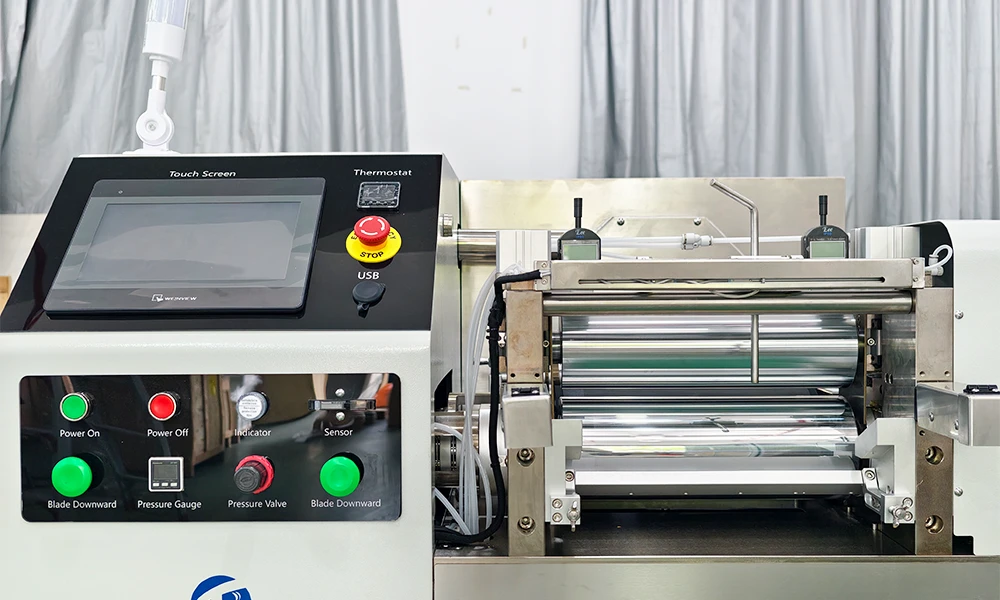

*PLC control，Touch screen operation, easy to use；
*Optional solvent recovery device；
Installation environment requirements:
Machine head ambient temperature 25~30℃，Other:10~40℃；
Machine head relative humidity: positive RH ≤35%, negative RH ≤98%，others ≤98%；
Equipment function:
|
Model |
TOB-SY300J Solid State Battery Electrode Coating Machine |
|
Dimension |
L 1800*W 1300*H 1200mm |
|
Weight |
About 1.2T |
|
Power supply |
3PH 380V，50HZ, |
|
Voltage fluctuation range |
+8%～–8%； |
|
start total power |
10KW |
|
Compressed air |
After drying, filtration and stabilivolt: outlet pressure＞5.0kg/cm2 |
|
Suitable system |
Solid State Battery |
|
Coating method |
Continuous coating, interval coating |
|
Oven section number |
1 section 1 meter oven |
|
Substrate thickness |
Aluminum foil：8～30um；Copper foil：8～30um |
|
Roll surface design width |
330mm |
|
Ensure coating width |
≤280mm |
|
Coating |
±3um |
|
Double-sided coating weight accuracy (mg/cm2) |
Coating center value ±1.0% |
|
Slurry viscosity |
2000~12000 (mPas) |
|
Single-coated dry thickness range |
20-200μm |
|
Solvent characteristics |
Oily solvent NMP(s.g=1.033,b.p=204℃) |
|
Watery solvent H2O/NMP(s.g=1.000,b.p=100℃) |
|
|
Solid content |
20~85% |
|
Coating dimension accuracy(mm) |
L≤±1、W≤±0.5 |
|
Positive and negative alignment accuracy(mm) |
L≤±1、W≤±0.5 |
Three Coating Methods Options
1. Comma Blade Coating（only for continuous coating）
 |
 |
2. Roll Coating (Transfer Coating) - Continuous Coating and Intermittent Coating
 |
 |

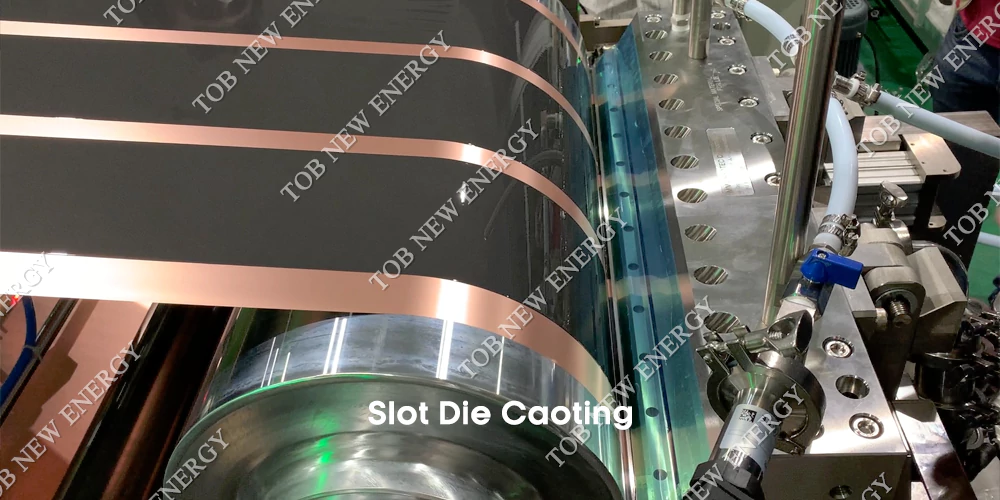

3. Slot Die Coating

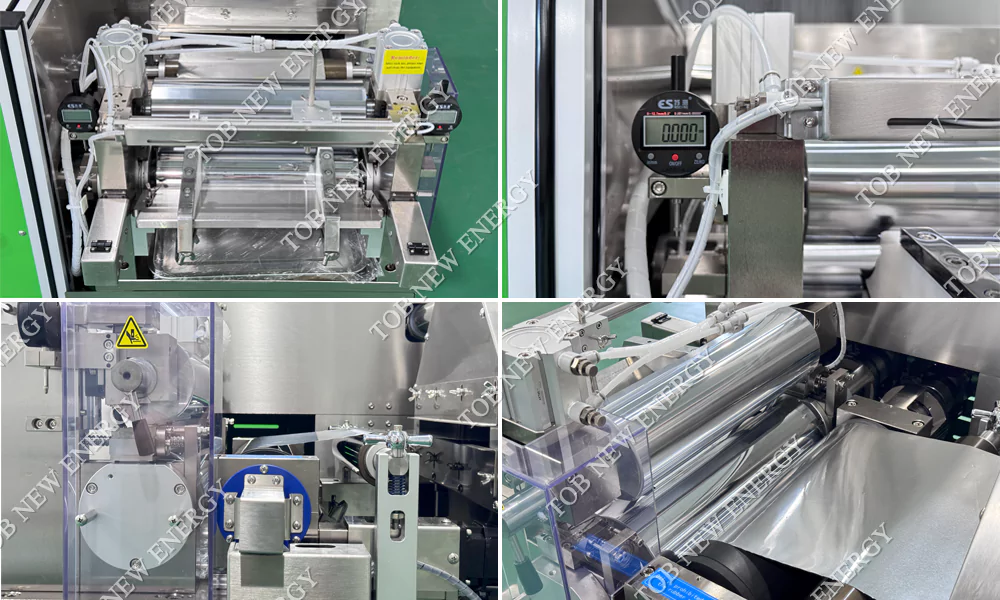

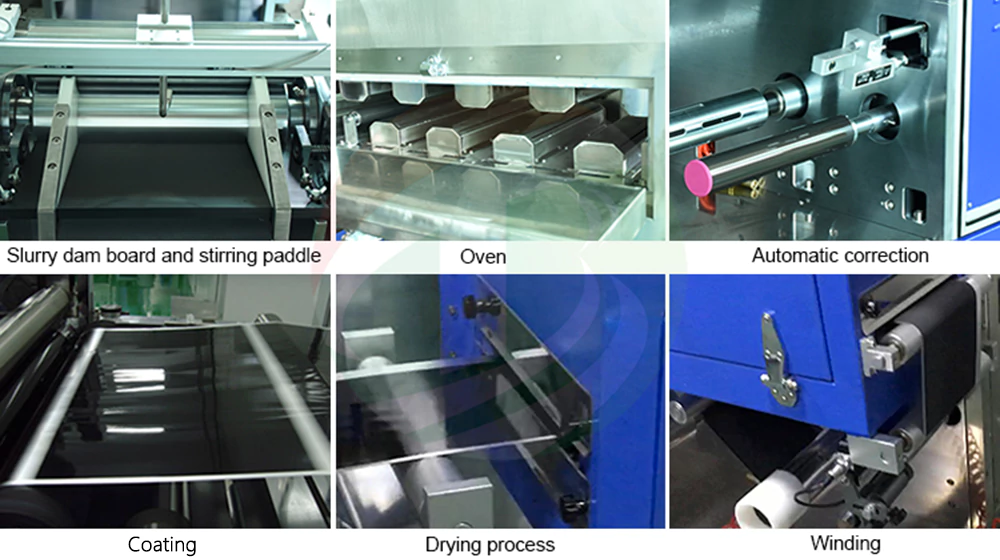

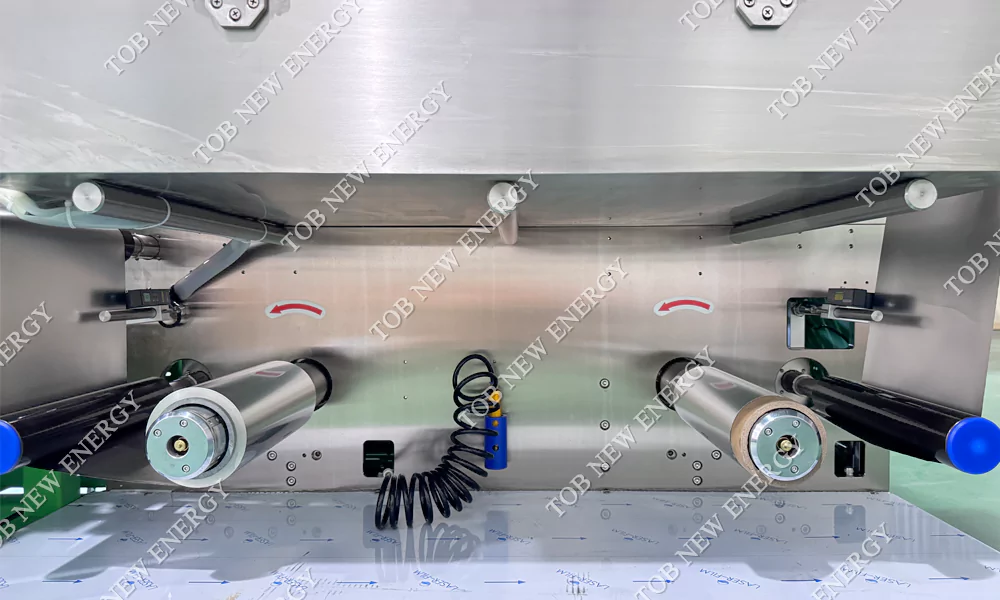

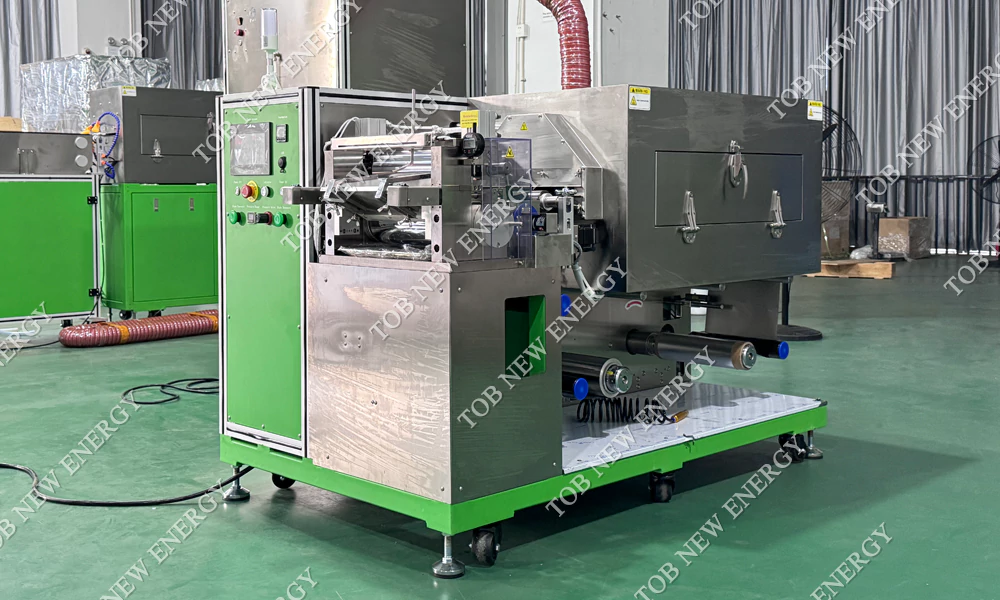

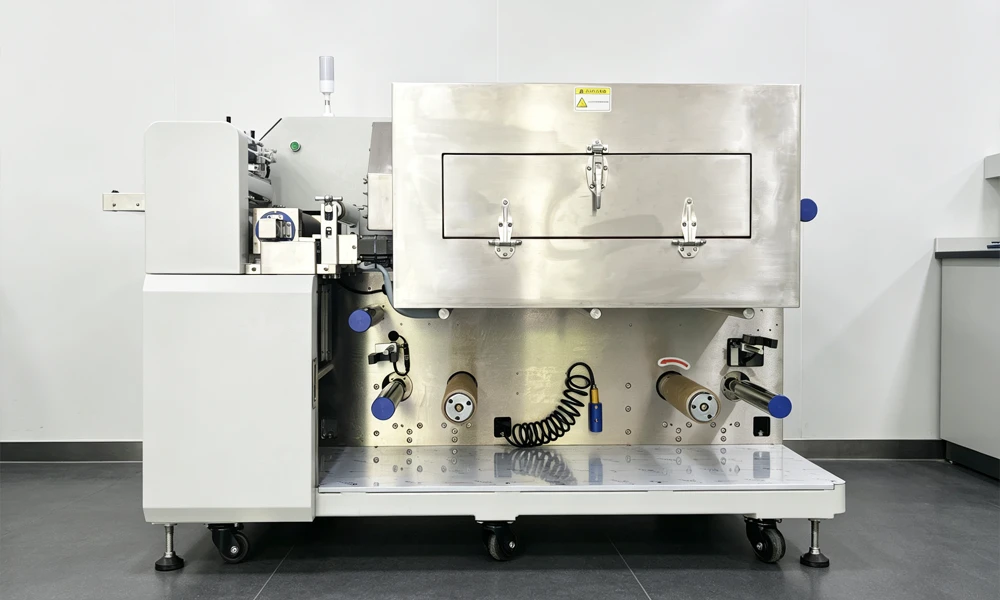

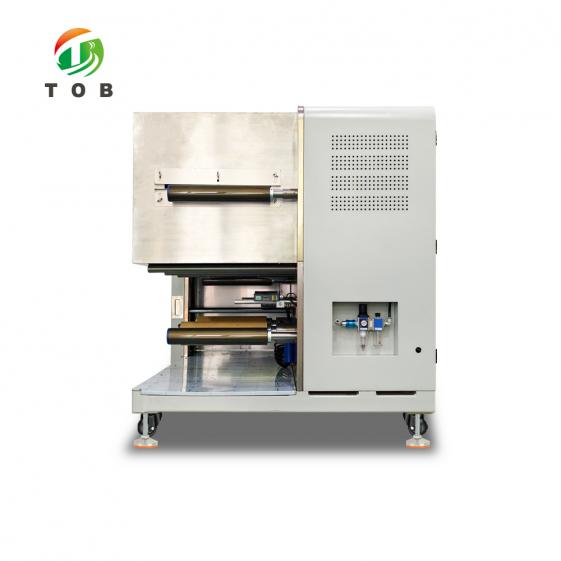

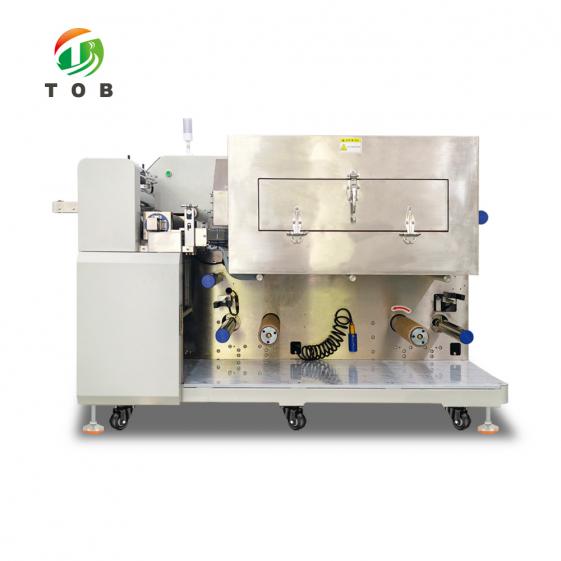

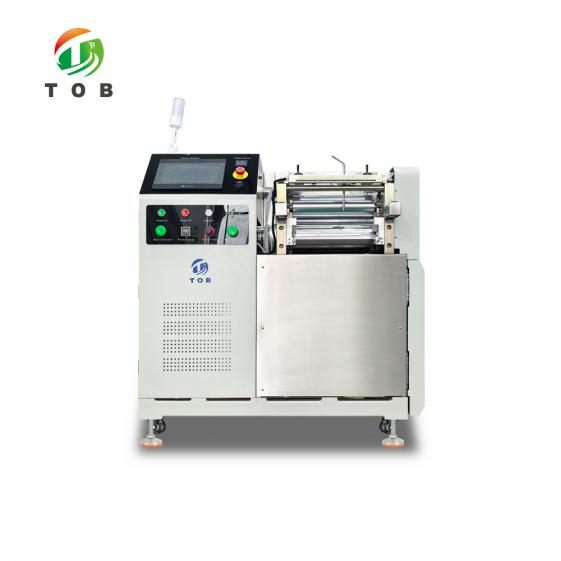

PRODUCT DISPLAY
