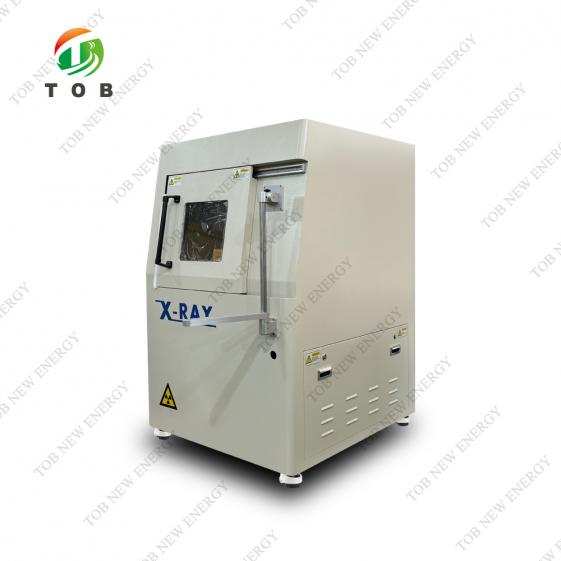

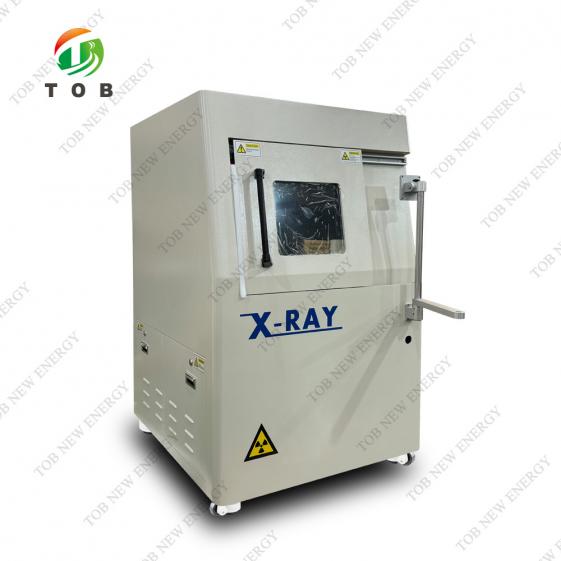

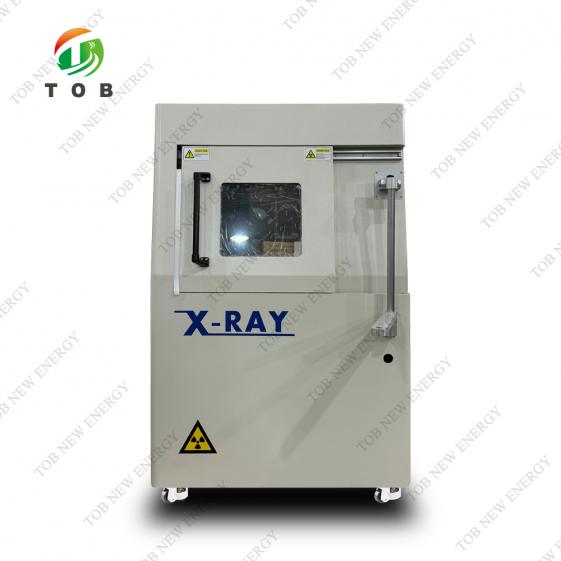

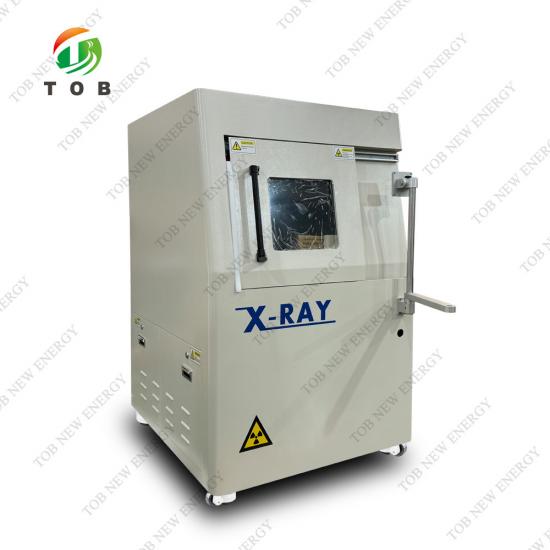

X-ray Inspection Machine for Battery

TOB-X-Ray-1 X-Ray inspection machine in lithium-ion battery production are non-destructive testing devices utilizing X-ray imaging technology. They are designed to inspect internal structural defects (e.g., electrode misalignment, solder voids, tab bending) in real-time, ensuring battery safety and consistency. With high penetration capability and micron-level precision, these systems are widely integrated into automated production lines for cylindrical, prismatic, and pouch-type batteries.

Brand:
TOB NEW ENERGY
item no.:
TOB-X-Ray-1
order(moq):
1
Payment:
L/C, T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

X-ray Inspection Machine for Battery

SPECIFICATIONS

X-ray inspection machine in lithium-ion battery production are non-destructive testing devices utilizing X-ray imaging technology. They are designed to inspect internal structural defects (e.g., electrode misalignment, solder voids, tab bending) in real-time, ensuring battery safety and consistency. With high penetration capability and micron-level precision, these systems are widely integrated into automated production lines for cylindrical, prismatic, and pouch-type batteries.

Features

· 130kV (<7 µm) closed X-Ray Generator

· HD Flat Panel Detector

· Flat Inspection platform and 4 - axis motion system

· X- ray tube & detector automatic lifting and descending, with convenient target point positioning system

· Multi- function DXI image processing system, CNC programmable detection

Model: TOB-X-Ray-1

Item	Description	Specifications
X-Ray Tube	Max. Voltages, Type	130kV, Closed
	Power Consumption	40W
	Focal Spot Size	<7 μm
	Motion range (Up and Down)	120mm
	System Magnification	600X
Detector	HD FPD Effective Area	130*130mm
	Pixel Size	85μm
	Pixel Matrix	1535*1536
	Motion range (Up and Down)	280mm
System Computer	Operating System	Industrial PC, i7 Processor, Win 10
System Computer	Monitor	22” LCD
Software	User Interface	Multi-function DXI image processing system
Working Platform	Max. Loading Area	500mm×500mm
	Max. Inspection Area	420mm×360mm
	Max. Loading Weight	10kg
	Movement Control	Joysticks, Mouse and Keypads
Navigation	Camera	HD Camera, Laser point
Axis	Manipulator	4-axis with X / Y / Z1 / Z2
Equipment Features	Power Supply	AC 110~220V (±10%) 50Hz, 3.0kW
	Footprint / Net Weight	1080(W)×1180(D) ×1730(H)mm, 1250kg
	Package / Total Weight	Plywood Crate, 146(W)x128(D)x196(H)cm, 1400kg
Optional Accessories	1.Barcode Scanner; 2.DimensionMeasurementGauge 3.Bad Marker, the price is not included these items
Warranty	One year warranty , free replacement the parts due to original manufacturer's defect, but expect of man-made damages and force majeure

X-Ray Safety: All X-ray machines meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems. The FDA - CDRH standard for cabinet x-ray systems states that radiation emission will not exceed. 5millirem a /hr.2"from any external surface. Our machines (Leakage <1μSv/h) are typically 5- 10 times less than the international standards.

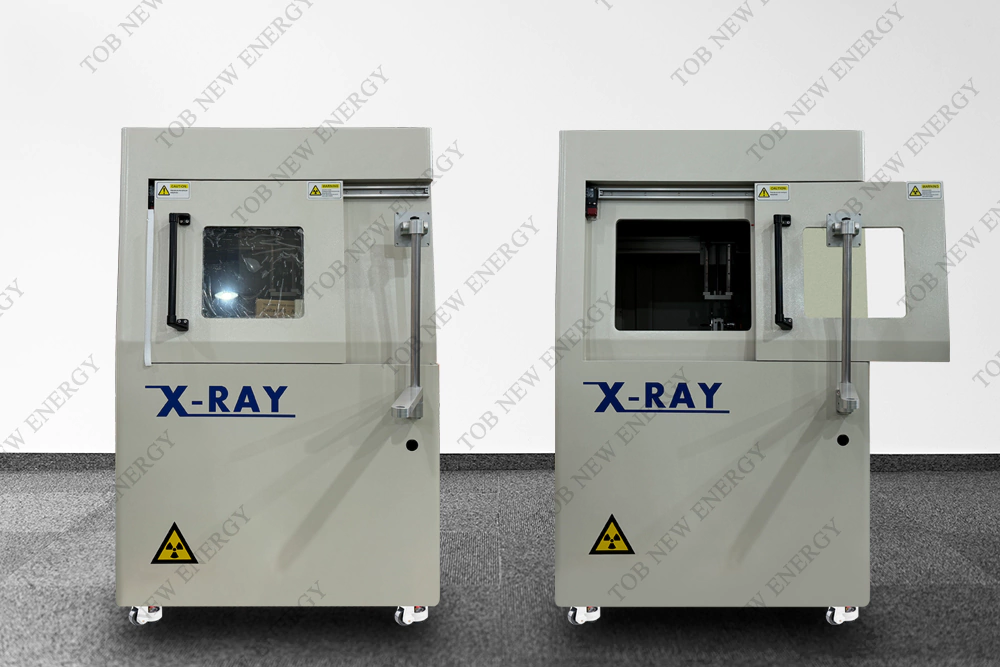

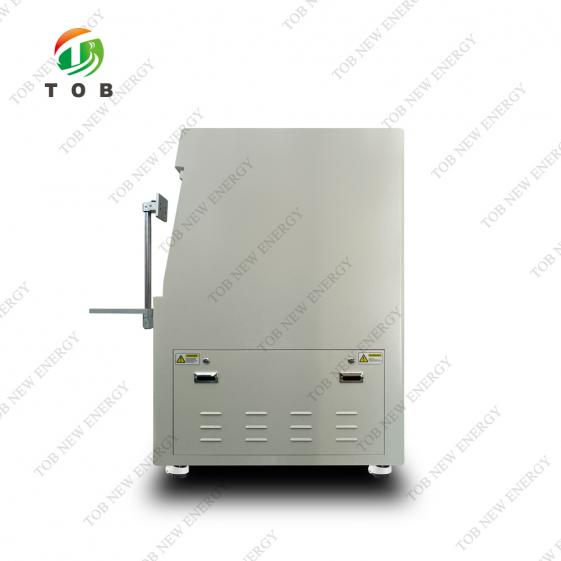

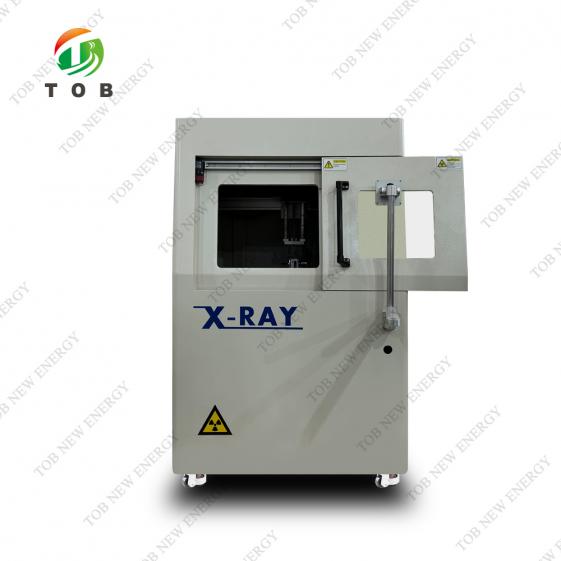

PRODUCT DISPLAY
