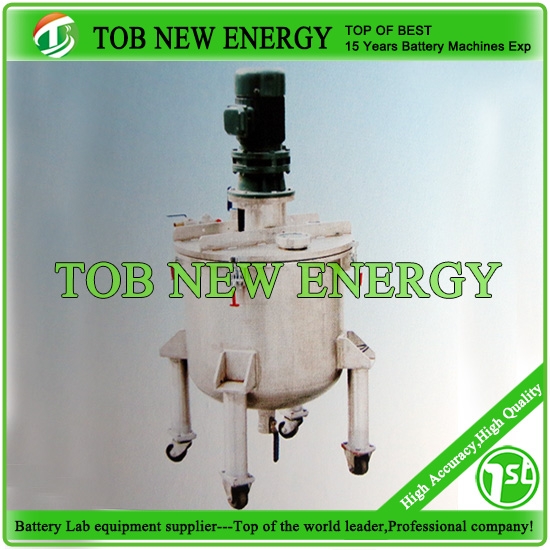

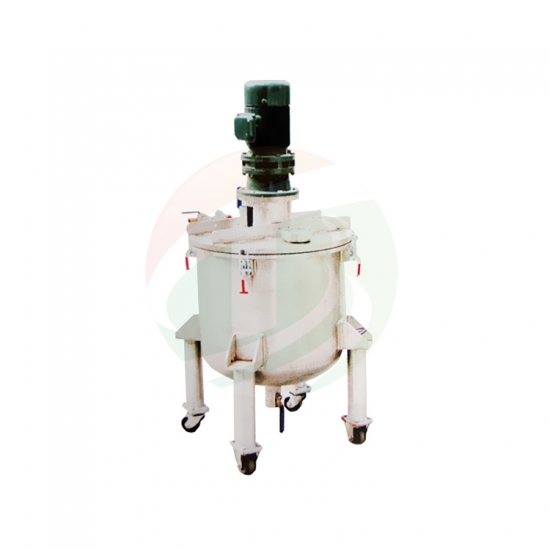

100L Vacuum Storage Tank

TOB-JBT-200Vacuum Storage Tankwith effective volume 200L, it is alower speed vacuum mixerequipment mainly used for battery anode/cathode paste and other electronic, chemical industry materials vacuum storage.

5mm Thickness Iron Nickel Foam For Battery Electrode Materials SPECIFICATIONS Model : TOB-IFeF-005 Material : Iron nickel foam, Sold in sheet. Dimension : 100*100*5mm, or customized as request Thickness : 5mm The aperture : 0.1mm-10mm (5-130ppi) Porosity : 75-98% Through Hole Rate : ≥98% Bulk density : 0.1-0.8g/cm3 Application field Exhaust gas purifier carrier materials,battery electrode materials, all kinds of catalyst carrier, especially for high temperature resistance and acid and alkali corrosion filtering material, the surface of the infrared burner materials, all kinds of industrial and civil heating material drying equipment, etc  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

The TOB-AF500 three-dimensional Mixer is used for mixing substances of different types, particle sizes that require high uniformity. Samples are mixed in a completely closed container, which can achieve dry to dry sample mixing, dry to wet sample mixing, wet to wet sample mixing. The entire process ensures a dust-free process for easy cleaning.

Adjustment range 20 ~ 280mm It is widely used in lithium battery, metal foil, optical film and other functional film industries.

1 TOB-VS-40A Ultrasonic Spot Welding Machine is an ultrasonic metal welder designed for welding Li ion battery anode electrode sheets copper foil and Ni tab onto current collectors to prepare Li-Ion pouch cells and cylinder cell in R&D laboratories and production line. 2 TOB-VS-40A Ultrasonic welding machine is with Automatic frequency tracking function, you don’t need to setting frequency always, simple operation.

Automatic Die Cutting / Punching Machine For Anode and Cathode Electrode for Stacking Pouch Cell SPECIFICATIONS This machine is used for make the roll electrode into cell shape electrode automatically. 1 Roll electrode feeding automatically, controlled by Photoelectric switch 2 Adopt laser module to get high efficiency and accuracy Model TOB-04-350-DC Source voltage  AC 220V, 50HZ Power  4.2KW Air compression 0.6-07MPa Suitable battery size ≤350*200mm Max electrode width 360mm Cutter die height 23.8mm Accuracy of struggle 0.1mm Capacity 40-60times/min Dimension 2800*1400*900mm Weight 2500kg Finished electrode of the die cutter machine  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

Copper foam has great function of conducting heat and electricity, which can be used as the electrode substrate of lithium ion battery or fuel cell or Nickel zinc battery and electric double layer capacitor electrode material.

1400 Degree Box-type High Temperature Furnace This furnace has the advantages of balanced temperature field, low surface temperature, fast temperature rise and fall rate, and energy conservation. It is a special and ideal equipment developed for high-temperature sintering, high-temperature annealing, melting, and analysis in universities, research institutions, and industrial and mining enterprises.
