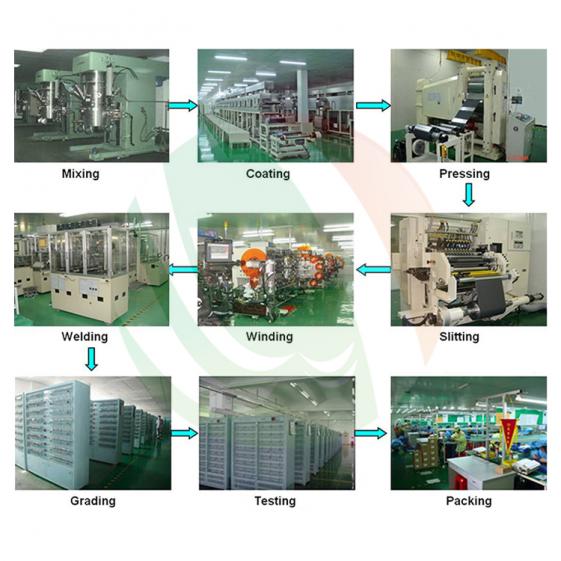

Automatic Aluminum Shell Battery Production Line

TOB offers professional semi-auto aluminum shell battery pilot line for battery manufacturing.

The flange window is cut into an integral rectangular ring with an integral thick plate, which is high strength and resistant to impact extrusion deformation and can open sealing grooves.

TOB-ET35 series benchtop LCR meter digital tester for capacitance resistance inductance accuracy 0.05%, 10 Hz - 1 MHz.

This TOB-XFZH1000 planetary mixing machine is suitable for mixing and dispersing the powder and liquid materials of various common batteries, and finally obtains a uniformly mixed battery slurry. Especially suitable for high viscosity process.

LiNiMnCoO2 Lithium ion battery materials electrolyte lipf6

1 TOB-0918 Battery voltage tester is a Voltage sorter with single-chip control of portable test instrument, This voltage tester is with a voltage limit set and automatic judging function, we can set the voltage in the range or out the range alarm function. 2 Battery Voltage test sorter can be used for testing battery open circuit voltage and reverse polarity testing purpose for lithium battery and lead-acid battery manufacturers. Intelligent judgment by voltage test sorter can eliminate the human error.

TOB-ERP30 electric riveting machine is suitable for riveting the upper caps, tabs and sliding wires of supercapacitors, horn-type capacitors and other battery cells.

1600 chamber furnaces SPECIFICATIONS Model TOB-DSP-KF1600-I TOB-DSP-KF1600-II TOB-DSP-KF1600-III TOB-DSP-KF1600-IV TOB-DSP-KF1600-VI TOB-DSP-KF1600-VI TOB-DSP-KF1600-VII Power 3 KW 5KW 7KW 9KW 12KW 21KW 65KW Furnace tube size(mm) 160X150X150 200X200X200 300X200X200 300X250X250 400X300X300 500X400X400 1200X600X600 Dimension 510X490X780 560X550X850 560X630X850 610X630X930 660X730X1340 910X900X1500 1670X1180X1500 Power supply voltage 220V 380V Phase number Single-phase Three Phase Heating element 1700 type silicon molybdenum rod Temperature control mode 一.Yudian temperature control 30 sections can only use PID temperature regulation. 二.FP93 temperature control (from Japan) (Replace imported instruments, for an additional fee) 1,40 section program temperature control can be divided into 4,2,1 group program,  if the program is divided into four groups, each program segment 10, 2,6 group PID control, low, medium and high temperature can each with a set of PID,  such that each segment is capable of controlling the temperature is very accurate. Control accuracy +/- 1 ℃ Heating rate ≤30 ℃/ Min Recommended heating rate 15℃/ Min Max temperature 1600 ℃ Rated temperature 1550 ℃ Surrounding surface temperature ≤35℃ Thermocouple Type Type B Triggers 1.Phase trigger (with soft start and current limiting function) 2.Current limiting function: no matter how to adjust the heating time,  our furnace transformer secondary current through the post is limited to 160A,  limited protection of equipment, no matter how you operate, the device will not burn. 3.Soft-start function: When the power current will slowly increase,  the impact on the heating element is small, help extend the life of the heating element SCR 106 / 16E Germany Semikron Certification CE  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
