Semi-auto Aluminum Shell Battery Pilot Line

Automatic aluminum shell battery production line for lithium battery manufacturing.

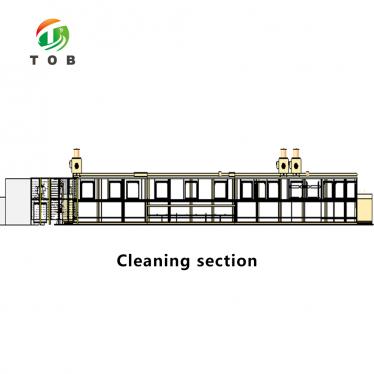

The prismatic cell aluminum case production line including stretching, cleaning, and full inspection packaging sections. Designed for lithium-ion battery manufacturers requiring stable quality, strict process control, and high-volume output. Compatible with multiple case models such as 39148103, 52148103, and more.

The 2600W battery welding machine is used for multi-layer foils with multi layers tab welding for battery stacking process, it is suitable for both anode and cathode.

1200℃ Mini tube furnace SPECIFICATIONS The tube furnace appearance is small, high quality resistance wire heating element, Using double-shell structure and 30 program temperature control instrumentation, Zero trigger, SCR control, furnace polycrystalline alumina fiber material, stainless steel flanges tube ends can be sealed, Installation on a stainless steel flange has a gas nozzle, valve and pressure gauge,  the vacuum can reach to 10-3 Pa,Balanced with the temperature field, the surface temperature is low,  lifting the temperature and rate, energy saving,Colleges and universities, research institutes,  industrial and mining enterprises to do high-temperature sintering atmosphere, reducing atmosphere,  CVD experiment, vacuum annealing with the ideal product. Model TOB-DSP-1200℃-S-I TOB-DSP-1200℃-S-II Power 1.5 KW 1.5 KW Furnace tube size(mm) Dia 25(OD) X700 /600mm Dia50(OD)X700/600mm Dimension 340X290X415 340X290X415 Power supply voltage 220V Phase number Single-phase Heating element High-resistance wire Control mode 1,30 sections of the program can only PID temperature regulation. 2,over-temperature protection, over-temperature protection  burnout or burnout furnace heating circuit automatically cut off ,  (when the furnace temperature exceeds 1200 degrees or thermocouple burns out,  the AC relay on the main circuit will automatically disconnect the main circuit off,  the panel lights off oN, OFF lights, limited protection EAF). 3, with 485 communication interface (when an optional software standard) 4, with power protection function, namely, electrical power and then to start the stove,  the program does not start from a starting temperature rise,  but began to rise from the furnace power outage. 5, the instrument with a temperature self-tuning features Temperature control mode Intelligent PID Control accuracy +/- 1 ℃ Trigger Zero trigger SCR 106 / 16E Germany Simon Kang Max temperature 1200 ℃ Rated temperature 1100 ℃ Heating rate ≤30 ℃/ Min (Available upon request modification) Heating length 205mm Recommended heating rate ≤15  ℃/ Min Vacuum degree (Optional) 1.General vacuum and drive gas out by:TW-1.5A 2.2XZ-2 Vacuum degree pumps can be able to get around 10Pa 3.TOB-DSP-VS 0.1vacuum system can pumped 0.1Pa  (and equipped with a resistive vacuum gauge display) Certification CE Surrounding surface temperature ≤45℃  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

1600 chamber furnaces SPECIFICATIONS Model TOB-DSP-KF1600-I TOB-DSP-KF1600-II TOB-DSP-KF1600-III TOB-DSP-KF1600-IV TOB-DSP-KF1600-VI TOB-DSP-KF1600-VI TOB-DSP-KF1600-VII Power 3 KW 5KW 7KW 9KW 12KW 21KW 65KW Furnace tube size(mm) 160X150X150 200X200X200 300X200X200 300X250X250 400X300X300 500X400X400 1200X600X600 Dimension 510X490X780 560X550X850 560X630X850 610X630X930 660X730X1340 910X900X1500 1670X1180X1500 Power supply voltage 220V 380V Phase number Single-phase Three Phase Heating element 1700 type silicon molybdenum rod Temperature control mode 一.Yudian temperature control 30 sections can only use PID temperature regulation. 二.FP93 temperature control (from Japan) (Replace imported instruments, for an additional fee) 1,40 section program temperature control can be divided into 4,2,1 group program,  if the program is divided into four groups, each program segment 10, 2,6 group PID control, low, medium and high temperature can each with a set of PID,  such that each segment is capable of controlling the temperature is very accurate. Control accuracy +/- 1 ℃ Heating rate ≤30 ℃/ Min Recommended heating rate 15℃/ Min Max temperature 1600 ℃ Rated temperature 1550 ℃ Surrounding surface temperature ≤35℃ Thermocouple Type Type B Triggers 1.Phase trigger (with soft start and current limiting function) 2.Current limiting function: no matter how to adjust the heating time,  our furnace transformer secondary current through the post is limited to 160A,  limited protection of equipment, no matter how you operate, the device will not burn. 3.Soft-start function: When the power current will slowly increase,  the impact on the heating element is small, help extend the life of the heating element SCR 106 / 16E Germany Semikron Certification CE  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

TOB-VFC-300 The film coating machine is mainly used for lithium battery electrode coating for coin cell assemble and pouch cell research.

TOB New Energy provides two electrode test split cell of different materials. TOB-PSLC-14-316 is used for lithium-ion battery, solid electrolyte, alkaline battery, and overcapacity testing. TOB-PSLC-14-Ti is used for zinc-ion battery and aqueous battery testing. TOB-PSLC-14-Mo is used for aluminum-ion battery testing and magnesium-ion battery testing.

Vacuum Mixing Machine 1-5 Litres
