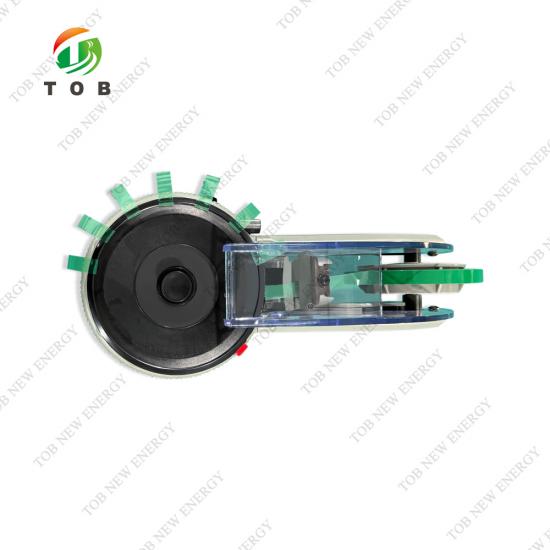

Automatic Tape Dispenser
Brand:
TOB NEW ENERGYitem no.:
TOB-ZCUT-2order(moq):
1Payment:
L/C, T/Tproduct origin:
Chinashipping port:
XIAMEN
Automatic Tape Dispenser
SPECIFICATIONS
The automatic tape cutter adopts a large disc design, and the cutting tape surrounds the disc of the electric tape dispenser, which can be used by multiple people at the same time, saving work time and improving work efficiency.
|
Voltage |
AC 220V 50/60HZ |
|
Tape width |
3-25mm |
|
Maximum external inner diameter of the tape |
130mm |
|
Cutting lengths |
13-60mm |
|
Tape inner diameter |
25/32/75 |
|
Weights |
About 2.85kg |
|
Size |
300*165*170mm |
How to Use:
1. Load the tape into the tape dispenser.
2. Adjust the manual rocker to the position where the tape can be placed.
3. Load the tape into the adhesive paper clip.
4. Adjust the tape cutting spacing and length.
5. Put down the safety cover, turn on the power button, and press the top start button.
6. The tape cutting is completed.
Features:
Detachable Rollers: The rollers are detachable, which is very convenient to replace the tape, and the suitable tape size range is wide, and tapes with a diameter within 13cm can be installed on it. You just need to connect to the power, turn on the switch, adjust the spacing and length of the tape, activate the cut button on the top, and you can start cutting the tape.
Cut Neatly: The blade of the tape cutting dispenser is made of tungsten steel, which is very sharp, and there is no gap between the upper and lower blades. The edge of the cut tape is neat without burrs and will not curl. Can cut 3mm ultra-narrow tape, the error is only 0.05mm.
Adjustable Tape Dispenser: The tape cutting length and width can be adjusted from 11-58mm and 3-22mm separately. You can adjust them according to your wishes or work needs, which is very flexible and convenient.
Stop Intelligently: This automatic tape dispenser will automatically stop after half a turn, so even if you don't have time to use the tape that has been cut, you don't have to worry about wasting tape. The tape dispenser adopts high-quality ABS material, which has high strength, impact resistance and has a long service life.
Widely Uses: It is suitable for schools, offices, warehouses, etc., for cutting adhesive paper to wrap gifts, wrap parcels, etc. It is suitable for cutting scotch tape, aluminum foil tape, high-temperature tape, double-sided tape, masking tape, etc.
PRODUCT DISPLAY
