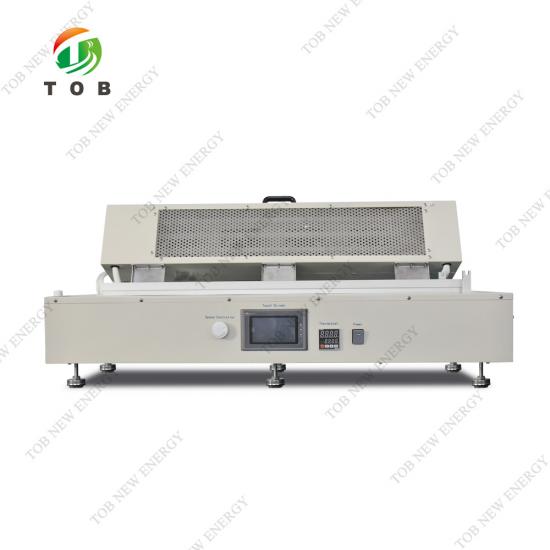

Lithium Ion Battery Electrode Coating Machine

This product is a 800mm long cast coater, which contains a vacuum chuck and an oil-free vacuum pump. It can be used to make long thick films with a micron adjustable blade.

  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-VFC-800
  • order(moq):

    1
  • Payment:

    L/C,T/T,Western Union
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7
Product Detail

Lithium Ion Battery Electrode Coating Machine



Specification


* Strong wind circulation drying heating, digital display temperature control, maximum working temperature 150℃;

* Digital display timer, freely set drying time;

* Coating speed can be adjusted within the range of 0 ~ 120mm / s;

* Vacuum aluminum pan for quick placement or removal of substrates;

* The stroke can be adjusted by the stroke switch between 0 ~ 800mm;

* Squeegee with adjustable coating thickness (0.01mm accuracy);

* Small size could saves space;

* Exquisite appearance, sheet metal adopts three-dimensional geometric design, simple and beautiful;


Coating speed

0~200mm/s

Max Stroke

The stroke can be adjusted by the stroke switch between 0~800mm

Vacuum plate

With vacuum aluminum plate

Vacuum plate size

L900mm×W200mm×H32mm

Adjustable range of scraper

0.01~3.5mm

Heating and drying system

Room temperature~200℃, digital display temperature controller, accuracy±1℃

power supply

220V/50Hz

Weight

70KG

Dimensions

L1000mm×W350mm×H320mm

Standard accessories

Applicator , Crossbar, Collection box


PRODUCT DISPLAY



Battery Electrode Coating Machine



Battery Coating Machine

Battery Electrode Coater


Package


Package for vacuum coating machine


 Email :tob.amy@tobmachine.com

 Phone number :0086 18120715609

 Skype :amywangbest86

Send a Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

our works
related products

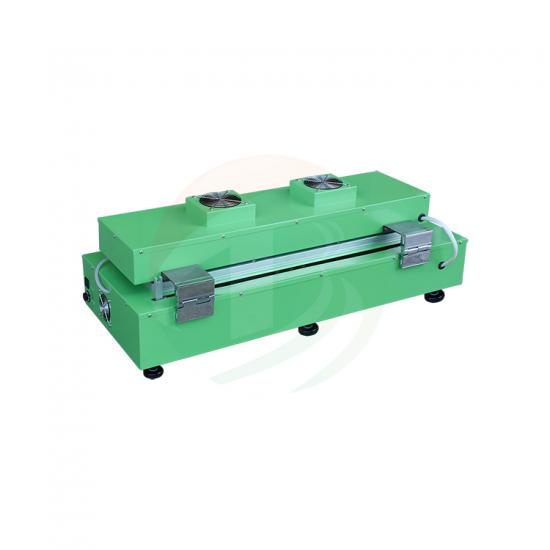

Film Coating Machine
