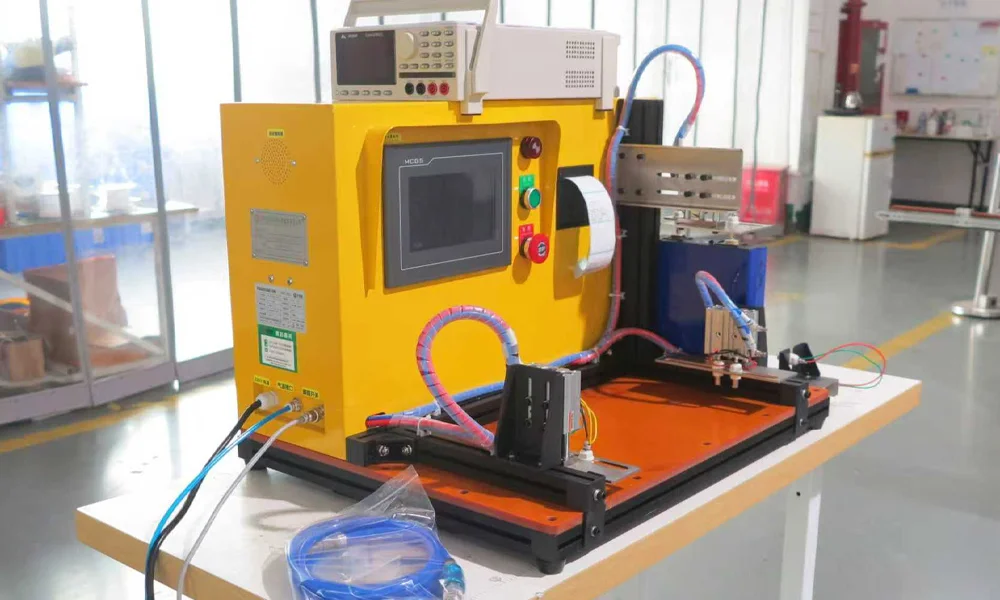

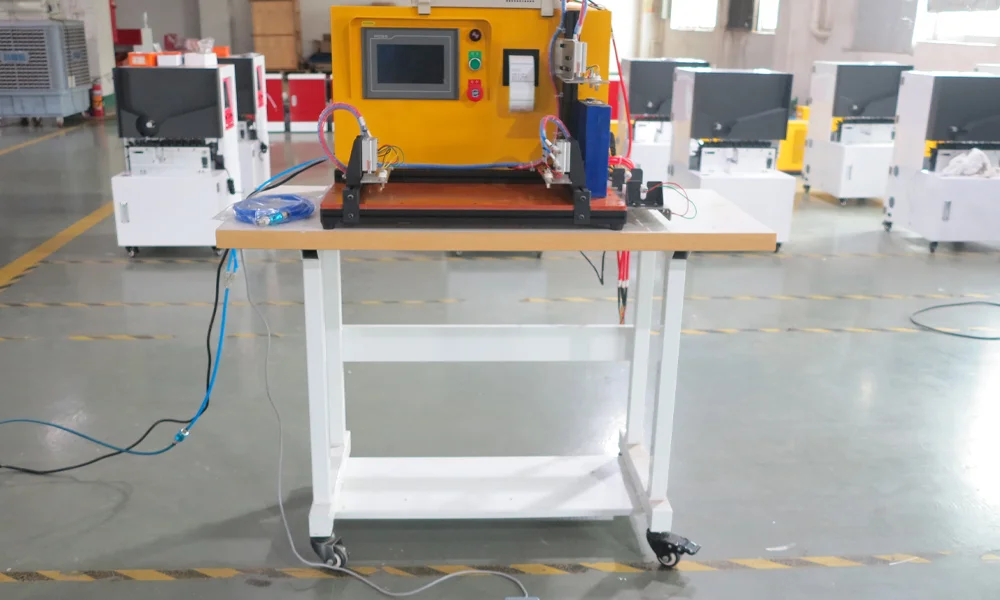

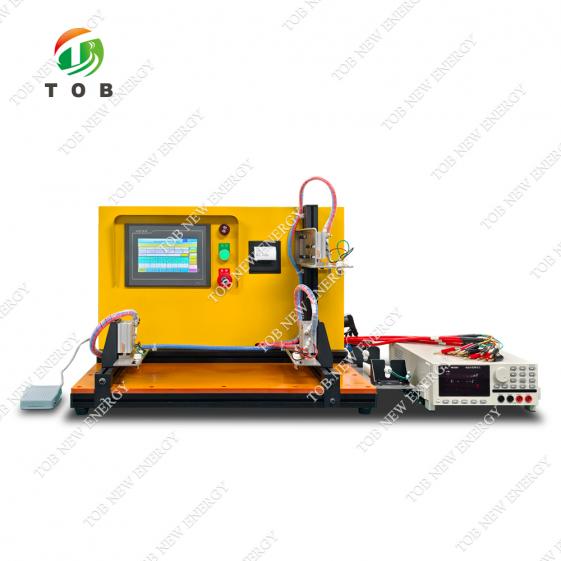

Semi-Automatic Battery Sorting Machine for Pouch Cell

TOB-FXJ-10D is a semi-automated device used for sorting large pouch cells and large Prismatic cells, with sorting parameters of open-circuit voltage and AC internal resistance.

  • Brand:

    TOB NEW ENERGY

  • item no.:

    TOB-FXJ-10D

  • order(moq):

    1

  • Payment:

    L/C,T/T

  • product origin:

    China

  • shipping port:

    XIAMEN
inquiry now
Product Detail

Semi-Automatic Battery Sorting Machine for Pouch Cell




SPECIFICATIONS

TOB-FXJ-10D is a semi-automated device used for sorting large pouch cells and large Prismatic cells, with sorting parameters of open-circuit voltage and AC internal resistance. The system can be set with 9 qualified levels and 1 defective level. It is equipped with voice broadcast and label printing functions. The device will prompt the operator where to place the battery based on the test data. Compared with the purely manual testing method, this device can significantly reduce the mental exertion of the operator and minimize misjudgments. This equipment is highly versatile, supporting the conventional large single cells and large soft-pack lithium batteries currently available on the market. It is rich in functions and easy to operate, making it one of the most cost-effective sorting machines on the market at present.


Component Name

Component brand/specification

Device Name

Semi-automatic sorting machine -10 gears

Internal Resistance Meter Resolution

Voltage :0.001V, internal resistance :0.1mΩ

Test Range

Voltage: 0-5V, internal resistance: 0-500mΩ

Number of Sorting Grades

Nine qualified grades + one defective grade

Working Gas Source

0.5-0.8Mpa

Working Voltage

AC220V±10% 50HZ , power ≤ 500W

Compatible Battery Specifications

Large single-cell square shell batteries, large-sized square pouch batteries, and large cylindrical batteries

Voice Broadcast

10 voice broadcast levels

Label Paper Printing

Customer selection

Work Efficiency

Approximately 1500Pcs/H

Equipment Utilization Rate

99%

Equipment Weight

About 20KG

Equipment Dimensions

650*602*458(Mm)


Equipment features

1) Label Printing: Equipped with a built-in adhesive label printer, capable of printing adhesive labels containing information such as internal resistance, voltage, grade, date, and time.

2) Voice Broadcast: Features a built-in voice broadcast module, allowing users to "identify positions by sound" for improved sorting efficiency.

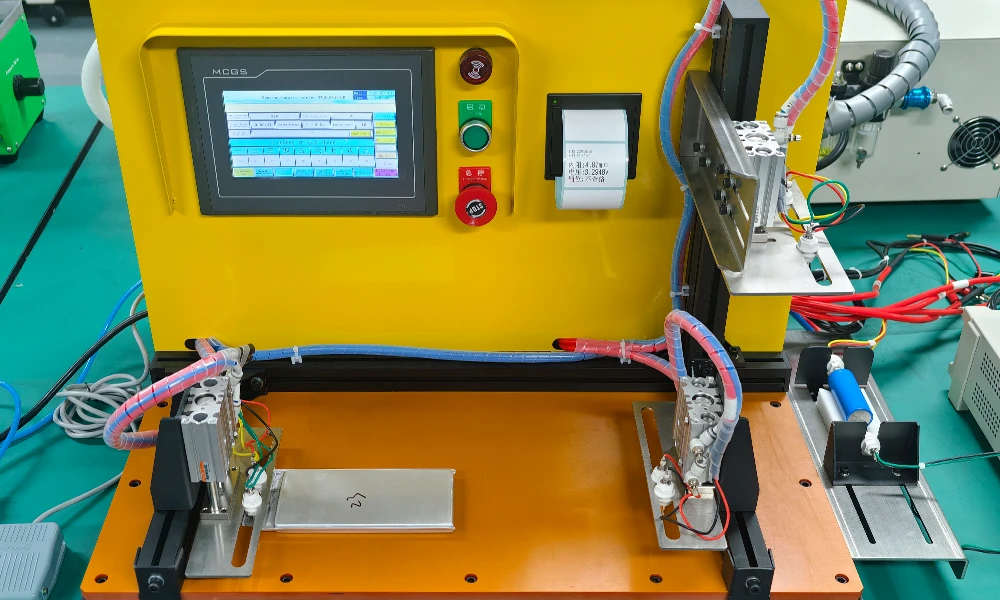

3) Display Interface: Equipped with a microcomputer touch screen, where sorting grade results are directly displayed on the large screen.

4) Testing Mechanism: All mechanical limiters are adjustable, enabling compatibility with various battery specifications.

5) Battery Switching: Only requires changing the position of the signal line connector to adapt to pouch cells with tabs on the same side or different sides, as well as large aluminum shell battery cells.

6) The device is compact in size, lightweight, and highly adaptable to different environments.


Precautions

To ensure smoother operation and prolong the service life of the machine, please strictly adhere to the following guidelines:

1) When using the device frequently, perform regular maintenance such as lubrication, dust prevention, and moisture protection.

2) Avoid using the device in environments with metal dust.

3) Unauthorized disassembly of any electrical components by non-professionals is strictly prohibited.

4) Measuring other high-voltage power sources beyond the specified range is strictly prohibited.

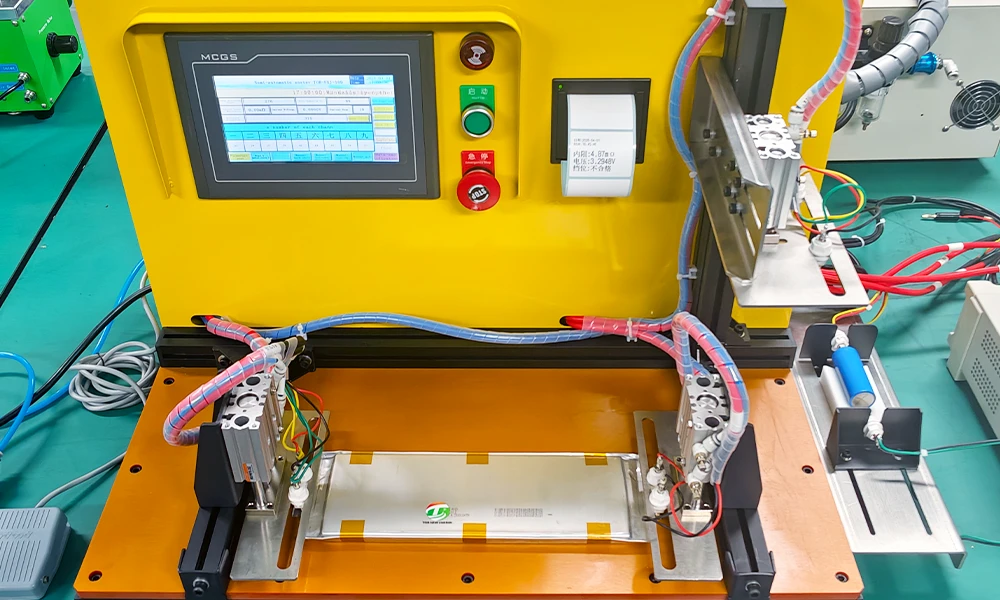

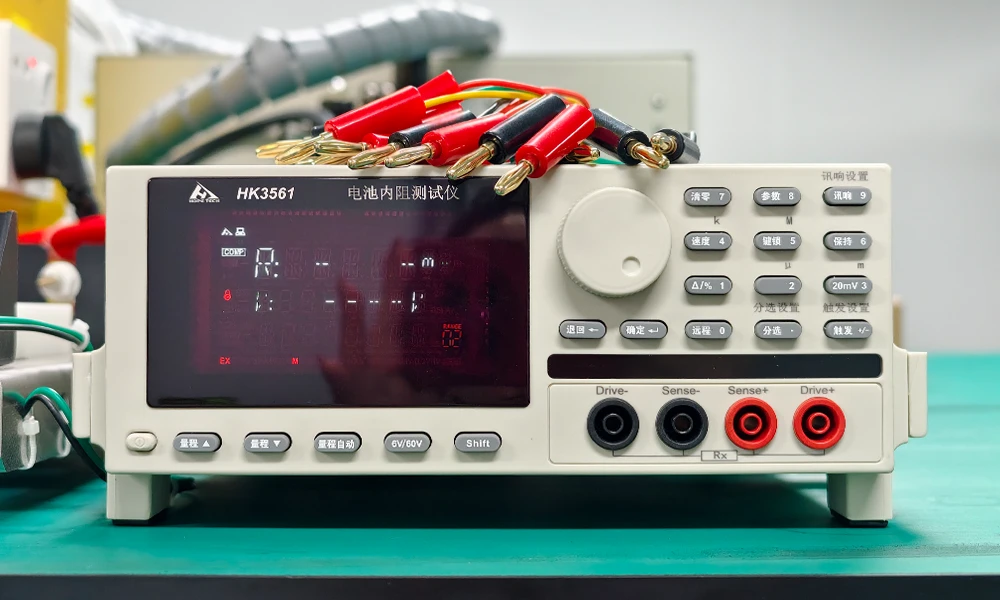

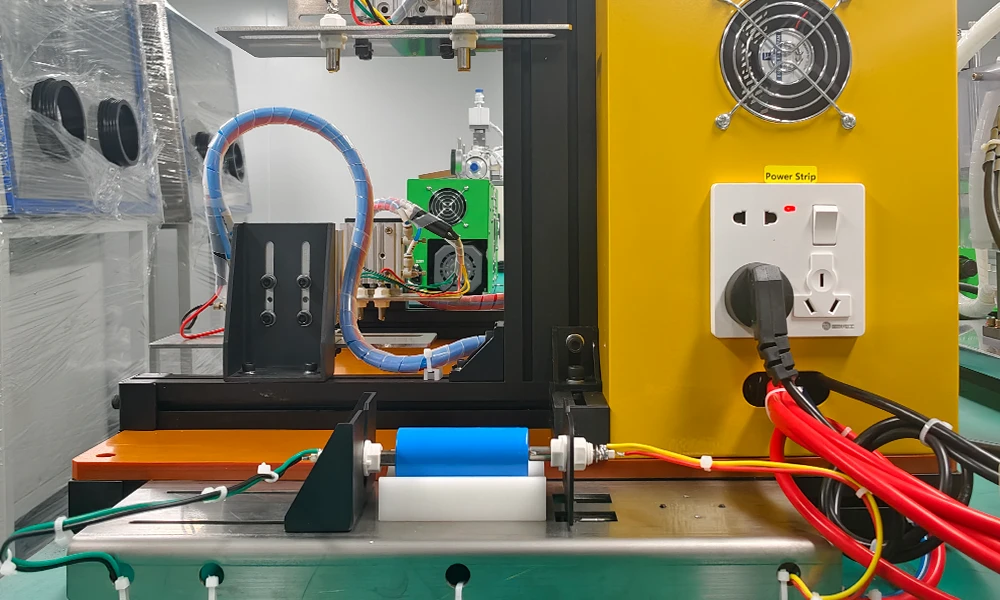

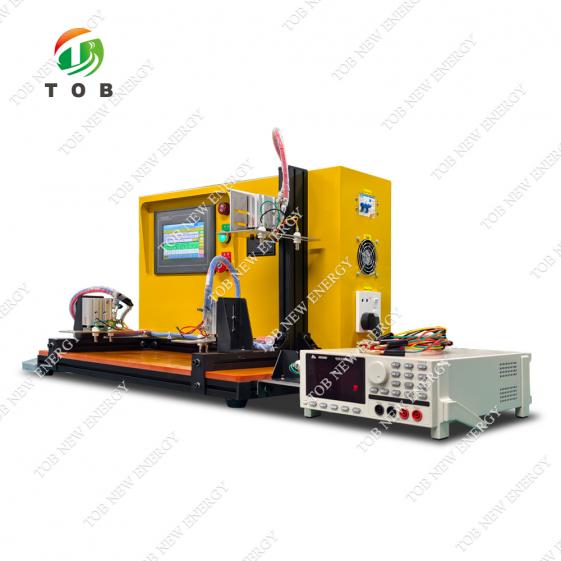

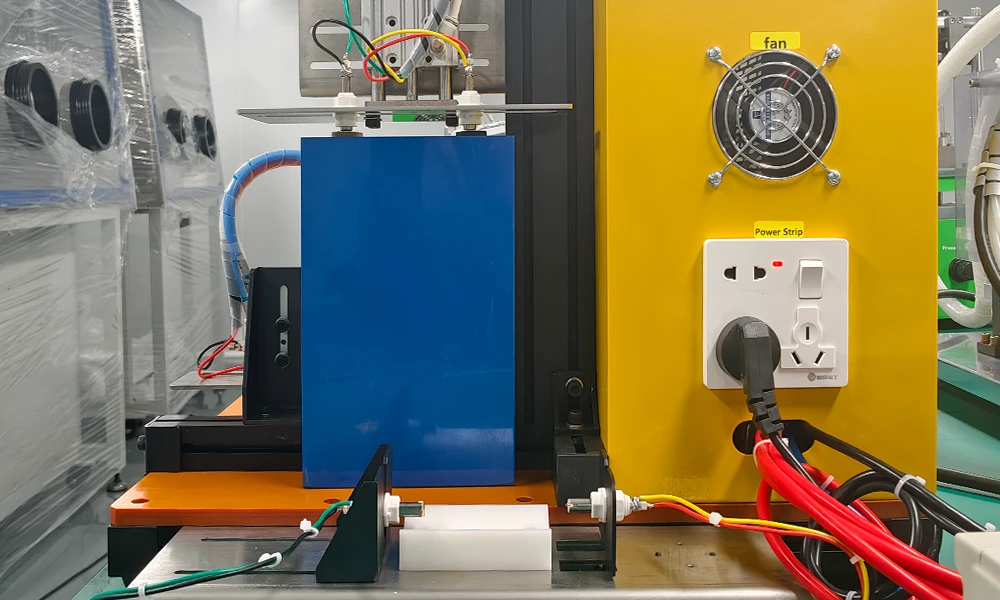

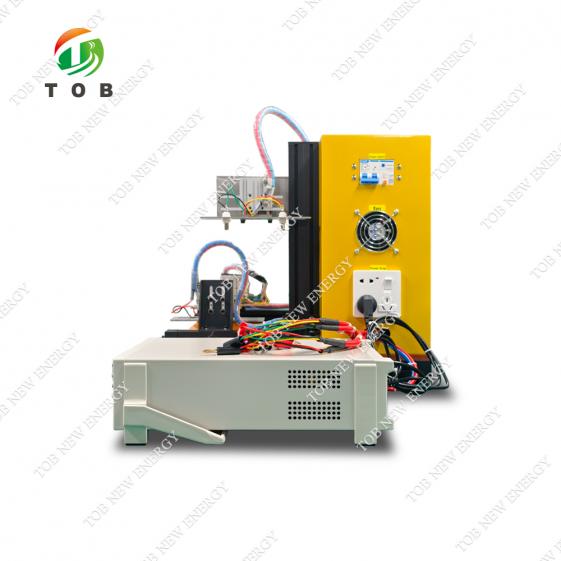

PRODUCT DISPLAY

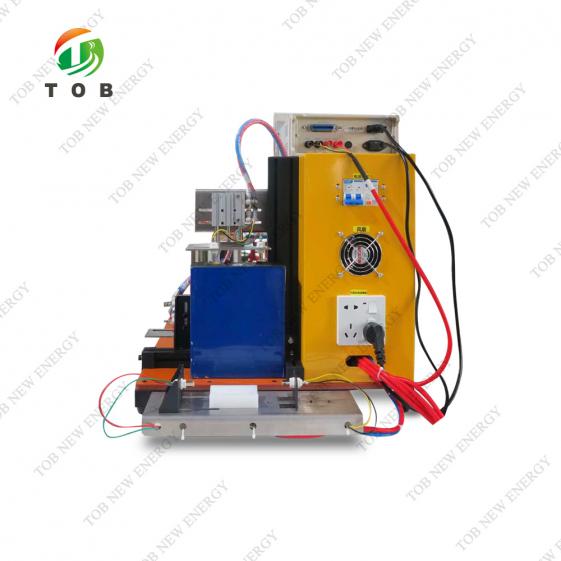

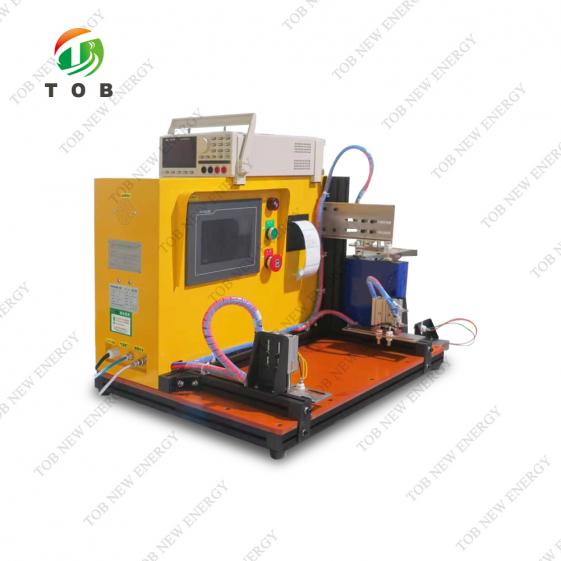

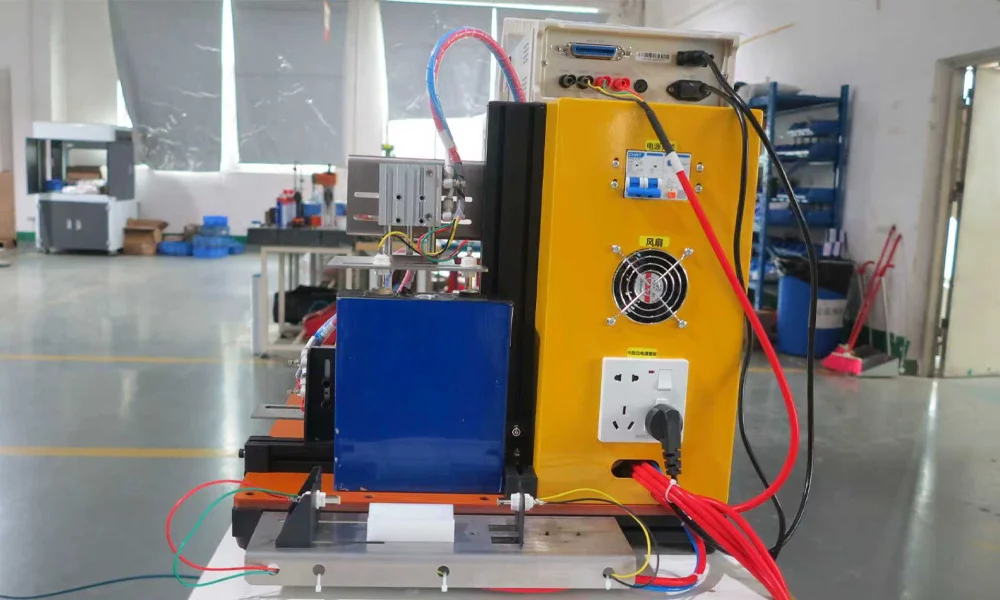

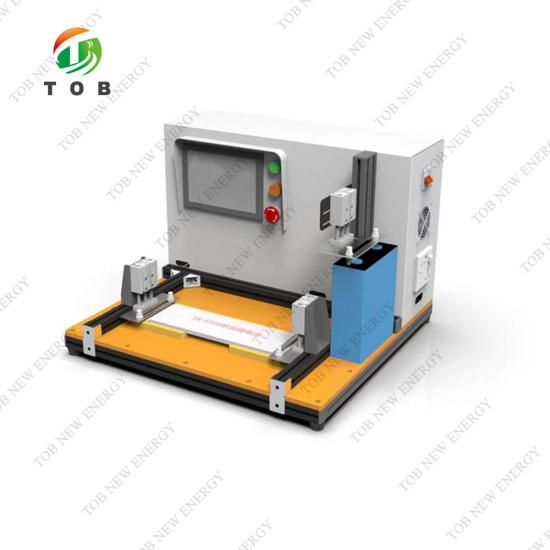

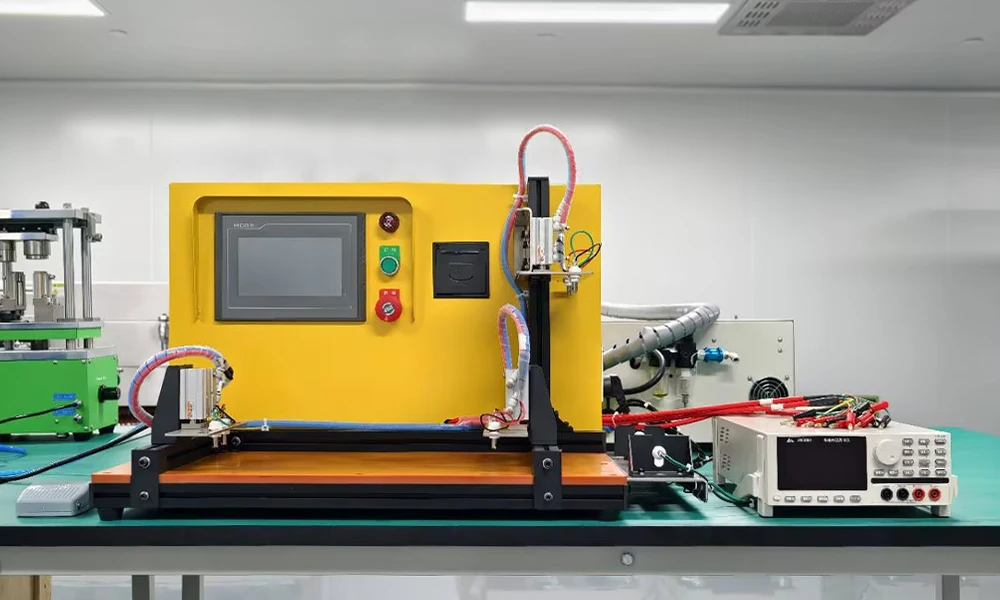

Semi-Automatic Battery Sorting Machine
 Semi-Automatic Battery Sorting Machine
Semi-Automatic Battery Sorting Machine
 Semi-Automatic Battery Sorting Machine
Semi-Automatic Battery Sorting Machine
 Semi-Automatic Battery Sorting Machine
